Product Short Description
Product Overview

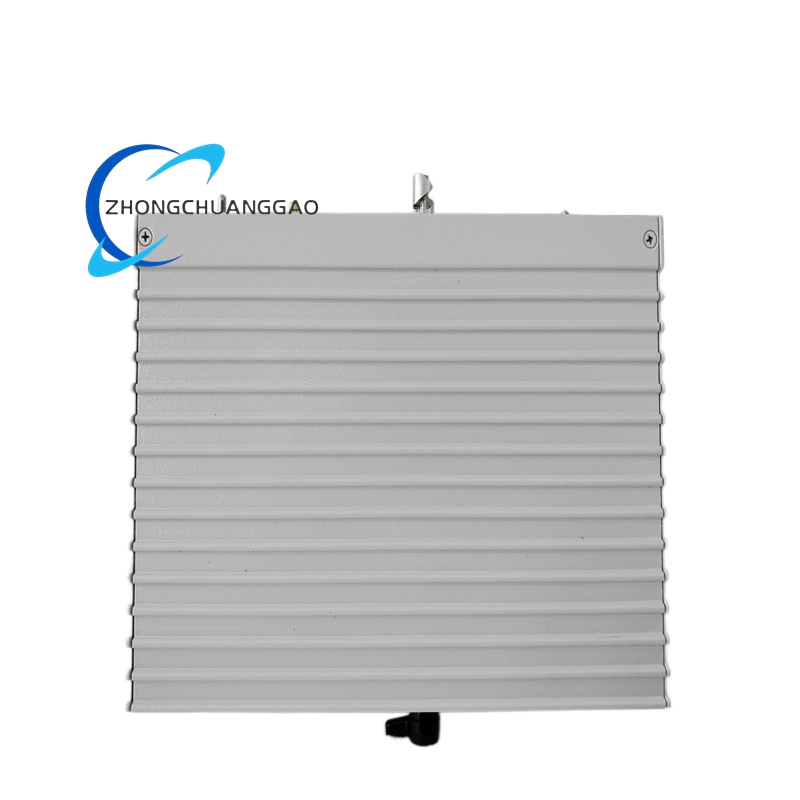

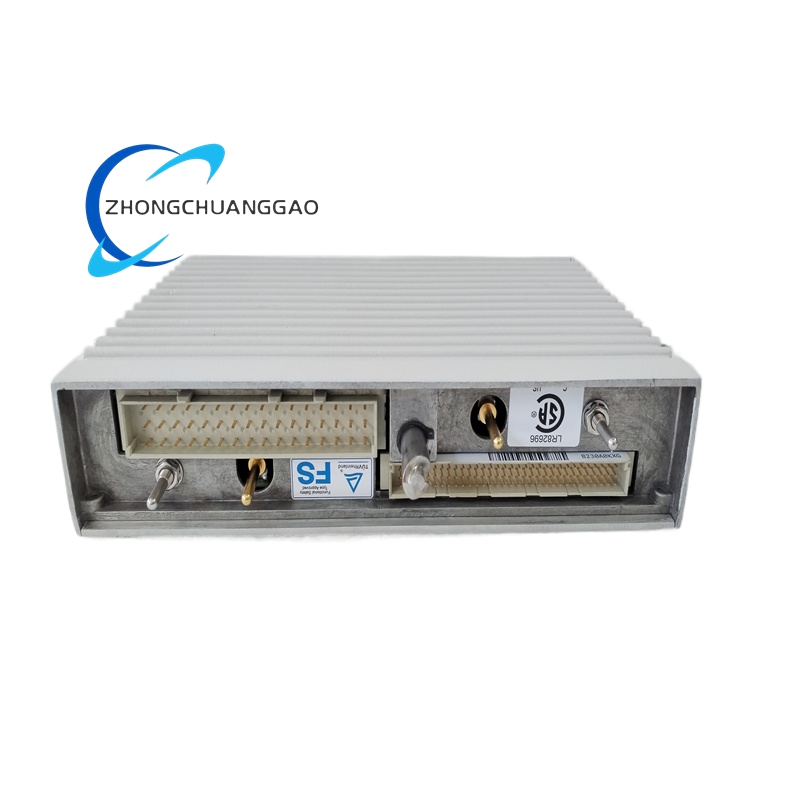

TRICONEX 3481S2 is a high-integrity safety-grade analog output module manufactured by Schneider Electric TRICONEX. It belongs to the Trident series Triple Modular Redundancy (TMR) safety control system. This module converts digital safety control logic instructions from the main CPU into stable, high-precision continuous analog current signals, and drives field regulating valves, actuators, transmitters and continuous control execution equipment in safety-critical industrial sites. It adopts full hardware independent TMR triple redundancy architecture with 2oo3 majority median voting logic, integrates full-channel online self-diagnosis, output loop monitoring, fault isolation and fail-safe mechanisms.
Description
Basic Hardware & Safety Parameters
- Manufacturer: Schneider Electric TRICONEX
- Product Type: Safety Analog Output (AO) Module
- Compatible System Series: TRICONEX Trident / Tricon TMR Safety Control System
- Redundancy Architecture: Full hardware Triple Modular Redundancy (TMR) independent output architecture
- Safety Integrity Level: SIL3 Certified (IEC 61508, TÜV AK6)
- Certification: CE, UL, ATEX Hazardous Area Certified
- Rated Operating Power Supply: 24 V DC
- Operating Voltage Range: 18 V DC to 32 V DC
- Maximum Power Consumption: 4.2 W
- Total Analog Output Channels: 4 fully isolated independent channels
- Installation Mode: Direct slot insertion into Trident system standard backplane
- Hot Swap Function: Complete hot plug and hot swap, system continuous operation without power-off during module replacement
Output Signal & Precision Electrical Specifications
- Standard Output Signal Type: 4–20 mA DC current signal
- Output Resolution: 16-bit high resolution
- Output Accuracy: ±0.1% Full Scale (FS)
- Output Load Impedance Range: 250 Ω to 600 Ω
- Output Update Response Time: ≤10 ms deterministic cycle
- Channel Isolation: 500 V AC electrical isolation between channels, bus and field circuits
- Built-in Detection Function: Real-time output loop open circuit detection, short circuit detection, output drift monitoring for all channels
Communication & Bus Specifications
- Backplane Bus Connection: TRICONEX Tribus high-speed redundant safety backplane bus
- Internal System Protocol: TRICONEX proprietary high-integrity safety communication protocol
- External Protocol Support: Modbus RTU
- Data Update Cycle: Fixed deterministic 8 ms safety control cycle
- Transmission Verification: 32-bit CRC parity check and data consistency verification
Environmental & Physical Specifications
- Operating Ambient Temperature: -40 ℃ to +70 ℃
- Storage Temperature: -55 ℃ to +85 ℃
- Relative Humidity: 5% to 95% non-condensing
- Electromagnetic Compatibility: Fully complies with IEC 61000-4 industrial EMC anti-interference standards
- Module Dimensions: 228 mm × 132 mm × 86 mm
- Module Net Weight: 1.4 kg
- Cabinet Protection Grade: IP20 indoor industrial cabinet protection
- Anti-vibration Performance: Meets heavy-duty industrial anti-vibration and anti-shock standards
Diagnosis & Fault Response Specifications
- Diagnosis Mode: Real-time continuous full-channel online self-diagnosis
- Fault Detection Coverage: Output loop open circuit, short circuit, output drift, overcurrent, hardware circuit fault, communication anomaly
- Fault Response Time: ≤200 ms
- Fault Processing Mechanism: Automatic faulty channel isolation, TMR median voting filters abnormal output data, normal channels maintain continuous analog output control
- Fault Management: Automatic fault recording, SOE event storage, active fault alarm upload to upper HMI system
- Fail-safe Mechanism: Automatically switches output channel to predefined safe current state (fixed 4 mA safe value) when critical fault occurs
Functional Characteristics
1. Independent TMR Triple Redundancy Output Architecture
Three completely independent output circuits execute control instructions simultaneously. Built-in 2oo3 majority median voting logic filters abnormal output data from single faulty channel. Single channel or single output circuit fault does not cause output misjudgment or safety function loss. The module achieves zero single-point failure performance for analog output control.
2. Ultra-high Precision Stable Output Performance
16-bit resolution and ±0.1%FS high accuracy maintain stable precision under wide temperature fluctuations, eliminates temperature drift deviation. ≤10 ms fast response meets real-time closed-loop regulation requirements of safety critical process parameters.
3. Full-channel Output Loop Diagnosis & Fault Isolation
Each output channel integrates independent open circuit, short circuit and output drift detection. Module automatically monitors field actuator loop status in real time, locates exact faulty channel position and isolates fault immediately. Normal channels operate continuously without interruption.
4. Complete Electrical Isolation & High Anti-interference Design
Adopts channel-to-channel isolated power supply, isolated signal circuits and surge protection circuits. Effectively resists industrial electromagnetic interference, voltage fluctuation and field electrical noise. Ensures stable analog output in severe industrial electrical environments.
5. Standardized Universal Output Compatibility
Supports standard 4–20 mA current output, matches all industrial regulating valves, electric actuators, positioners and continuous control instruments. Widely adapts to various field process control execution equipment.
6. Strict SIL3 Compliant Fail-safe Safety Design
Strictly follows IEC 61508 safety standards. Module immediately triggers predefined 4 mA safe output state when detecting critical faults. Effectively prevents dangerous uncontrolled output and guarantees process safety under fault conditions.
7. Hot-swappable & Easy Maintenance Performance
Standard modular structure with full hot swap function. Fully compatible with all TRICONEX Trident series CPU modules, interface modules and backplanes. Simple wiring, convenient configuration and fast on-site debugging.
8. High Stability Long Service Life
All solid-state circuit design without mechanical moving parts. Extremely low failure rate, meets more than 20 years long-term continuous operation requirements of industrial safety control systems.
Application Scenarios
Oil & Gas Upstream Industry
Applied to offshore platform process parameter closed-loop regulation control, onshore oil and gas gathering station flow/pressure regulating valve output control, oilfield ESD emergency shutdown analog execution control, fire and gas system continuous regulation output control.
Petrochemical & Chemical Processing Industry
Used for reactor temperature/pressure/flow closed-loop safety regulation output control, pipeline regulating valve position analog control execution, flare system safety regulation output control, large chemical plant SIS safety instrumented system precision analog output control.
Power Generation Industry
Applied to steam turbine steam flow/pressure regulating valve analog output control, boiler BMS burner management system fuel regulation control, power unit process parameter safety closed-loop regulation output control, auxiliary equipment continuous safety execution control.
Natural Gas Storage & Transportation Industry
Used for long-distance gas pipeline pressure regulation valve analog output control, large compressor station flow regulation execution control, leakage emergency shutdown analog safety output control, gas distribution station process parameter closed-loop safety control.
Metallurgy & Heavy Industry
Applied to smelting furnace temperature/pressure safety regulation analog output control, production line continuous process parameter execution control, high-risk pressure equipment regulating valve safety control.
Other Safety-critical Industrial Fields
Including fine chemical pharmaceutical industry, industrial water treatment safety closed-loop regulation output control, large industrial compressor unit analog safety control, and all industrial occasions requiring SIL3 level high-precision, high-reliability analog safety output control.
