Product Short Description
Product Overview

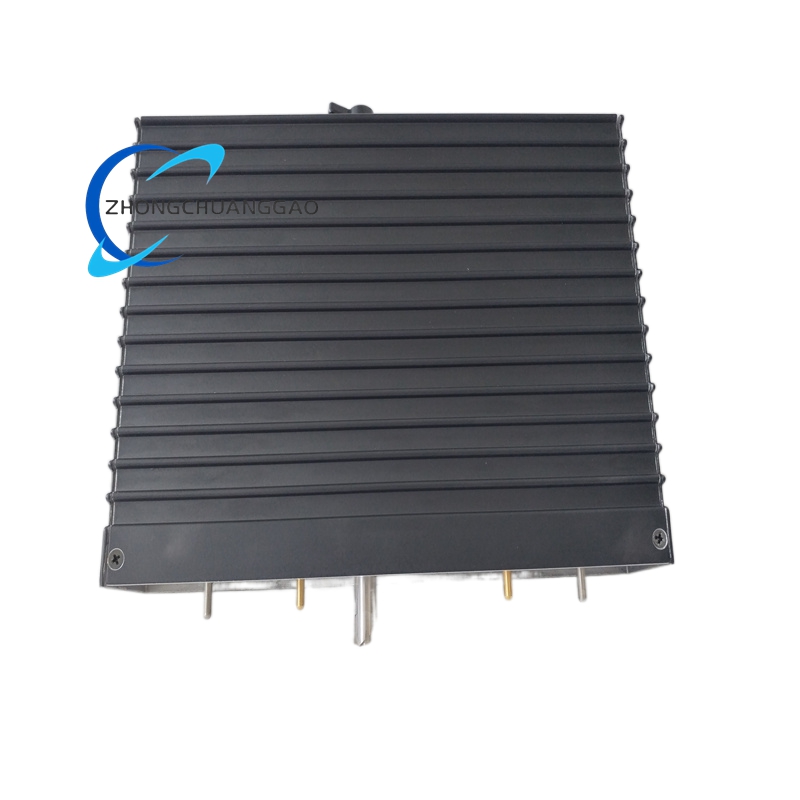

TRICONEX 3101 is the central core main processor module manufactured by Invensys TRICONEX. It belongs to the Trident TMR safety instrumented control system. This module undertakes full real-time operation of safety logic calculation, data processing, I/O signal scheduling, communication management and system diagnosis for the entire safety control system. It adopts complete hardware Triple Modular Redundancy architecture with three independent parallel processing units and majority voting mechanism. The module integrates full online self-diagnosis, automatic fault isolation and strict fail-safe functions.
Description
Technical Specifications
Core Hardware & Safety Parameters
- Manufacturer: Invensys TRICONEX
- Product Type: Safety System Main CPU Processor Module
- System Compatibility: TRICONEX Trident Series Safety Control System
- Redundancy Architecture: Full Triple Modular Redundancy (TMR) hardware architecture
- Safety Integrity Level: SIL3 Certified (IEC 61508 Standard)
- Processor: 32-bit PowerPC Processor, 50 MHz operating frequency
- System Memory: 6 MB Flash PROM (application program storage), 16 MB DRAM (data operation), 8 KB NVRAM (power-off data retention)
- Rated Power Supply Input: 24 V DC ±15% (19.2 V DC to 30 V DC)
- Maximum Power Consumption: 8 W
- Mounting Mode: Standard backplane rack-mounted direct slot insertion
- Hot Swap Function: Full hot plug and hot swap, system continuous operation without power-off during replacement
Communication & Bus Specifications
- Backplane System Bus: TRICONEX Tribus High-speed Redundant Safety Bus
- Tribus Bus Transmission Rate: 25 Mbps, with CRC 32-bit verification and parity check protection
- External Communication Interfaces: 10BaseT RJ45 Ethernet, RS-232, RS-485
- Supported Protocols: Modbus RTU, TRICONEX proprietary system internal protocol
- Control Cycle: Fixed deterministic 10 ms safety logic execution cycle
- Maximum Expandable I/O Capacity: 1000 analog input/output points, 2000 digital input/output points
- Channel Isolation: Complete electrical isolation between processor bus, communication ports and field circuits
Environmental & Physical Specifications
- Operating Ambient Temperature: -40 ℃ to +70 ℃
- Storage Temperature: -55 ℃ to +85 ℃
- Relative Humidity: 5% to 95% non-condensing
- Electromagnetic Compatibility: Fully complies with IEC 61000-4 industrial EMC anti-interference standards
- Module Dimensions: 228 mm × 160 mm × 75 mm
- Module Net Weight: 1.5 kg
- Cabinet Protection Grade: IP20 indoor industrial cabinet protection
- Anti-vibration & Anti-shock: Meets standard industrial heavy-duty anti-vibration specifications
Diagnosis & Fault Response Specifications
- Diagnosis Mode: Real-time continuous full-system online self-diagnosis
- Fault Detection Range: Processor operation abnormality, memory error, bus communication fault, power supply anomaly, hardware circuit failure, I/O link abnormality
- Fault Response Time: ≤200 ms
- Fault Processing Mechanism: Automatic fault unit isolation, redundant processor seamless switchover, safety logic maintains normal execution
- Fault Management: Automatic fault recording, event log storage, active alarm upload to upper HMI system
- Fail-safe Mechanism: Automatically switches system to predefined safe state when critical fault occurs
Functional Characteristics
1. Full Hardware TMR Triple Redundancy Architecture
Three completely independent CPU processing units execute signal acquisition, logic calculation and output control simultaneously. Majority voting logic eliminates errors and faults from single processing channel. Single processor unit fault does not cause system safety function loss or control failure. The module realizes zero single-point failure safety performance.
2. High-performance Real-time Safety Logic Processing
Adopts 32-bit high-speed PowerPC processor with fixed deterministic control cycle. It completes complex interlock logic, closed-loop control and emergency shutdown judgment with low delay. Fully meets strict real-time response requirements of safety-critical industrial processes.
3. Comprehensive Full-time Online Self-diagnosis Function
Monitors processor status, memory, bus communication, power supply and hardware circuits in real time. Automatically locates exact fault position, isolates faulty modules and uploads diagnostic information. Realizes transparent fault management without manual troubleshooting.
4. Strict SIL3 Compliant Fail-safe Safety Design
Strictly follows IEC 61508 safety standards. When module detects critical abnormal faults, it immediately triggers predefined safe shutdown state. Effectively prevents dangerous false actions and ensures process safety under fault conditions.
5. Stable Redundant Communication Management Ability
Integrates multiple external communication ports and high-speed redundant backplane bus. Realizes stable data interaction between processor, remote I/O modules and upper monitoring system. Redundant communication links avoid data interruption and data loss risks.
6. Excellent Environmental Adaptability & Anti-interference
Wide operating temperature range, isolated power supply and signal circuits, surge protection design. Resists industrial electromagnetic interference, voltage fluctuation and harsh electrical noise. Operates stably in severe hazardous industrial environments.
7. Convenient Maintenance & Strong System Scalability
Standard modular structure, hot-swappable design. Fully compatible with all TRICONEX Trident series I/O modules and interface modules. Supports flexible expansion of system scale, simple configuration and convenient on-site debugging.
8. Reliable Power-off Data Protection
Equipped with independent NVRAM non-volatile memory. Retains important control parameters, fault records and SOE event data after system power failure. Avoids data loss and ensures system rapid recovery after power restoration.
Application Scenarios
Oil & Gas Upstream Industry
Applied to offshore platform safety control systems, onshore oil and gas gathering stations, oilfield ESD emergency shutdown systems, fire and gas detection safety control systems. Undertakes core safety logic operation and emergency shutdown decision-making.
Petrochemical & Chemical Processing Industry
Used for reactor pressure and temperature safety interlock logic control, pipeline valve safety execution control, flare system safety logic operation, large chemical plant SIS safety instrumented system central control processing.
Power Generation Industry
Applied to steam turbine ESD emergency shutdown control logic, boiler BMS burner management system central processing, power unit safety interlock control, grid-connected abnormal condition emergency stop logic operation.
Natural Gas Storage & Transportation Industry
Used for long-distance gas pipeline pressure safety interlock processing, compressor station safety control system core CPU, leakage emergency shutdown logic calculation and gas distribution safety system control.
Metallurgy & Heavy Industry
Applied to smelting furnace high-temperature pressure safety interlock control, production line emergency shutdown logic operation, high-risk pressure equipment safety monitoring and execution control.
Other Safety-critical Industrial Fields
Including fine chemical pharmaceutical industry, large industrial compressor unit safety control, industrial water treatment safety interlock systems, and all industrial occasions requiring SIL3 level high-reliability safety central processing control.
