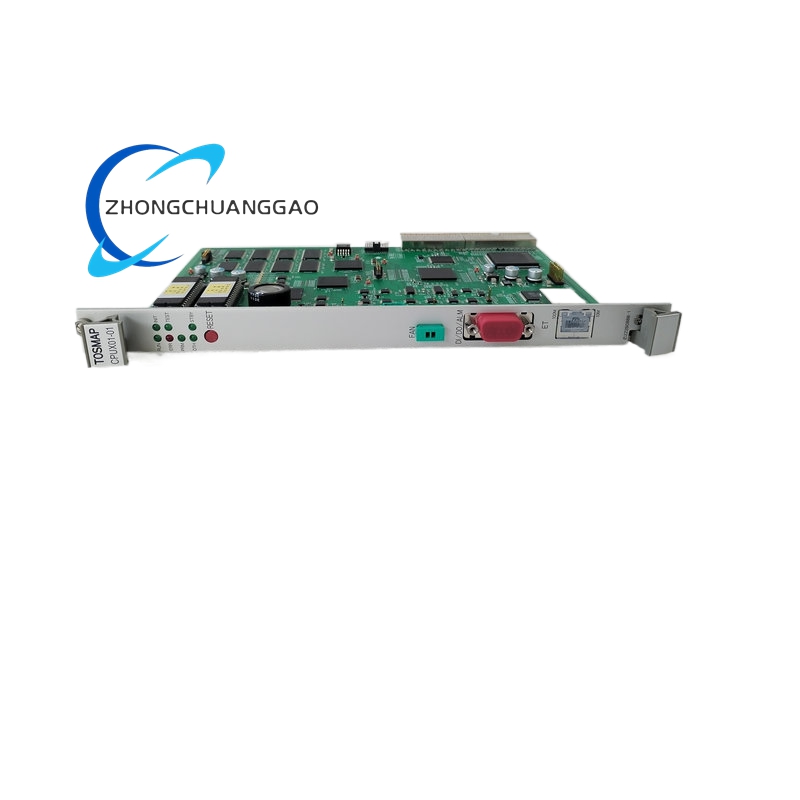

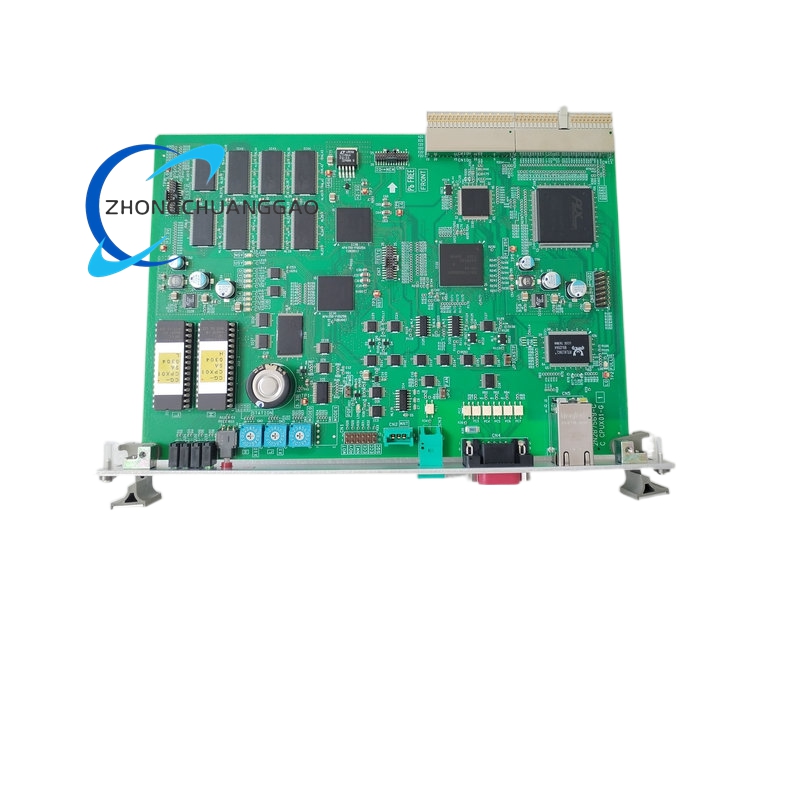

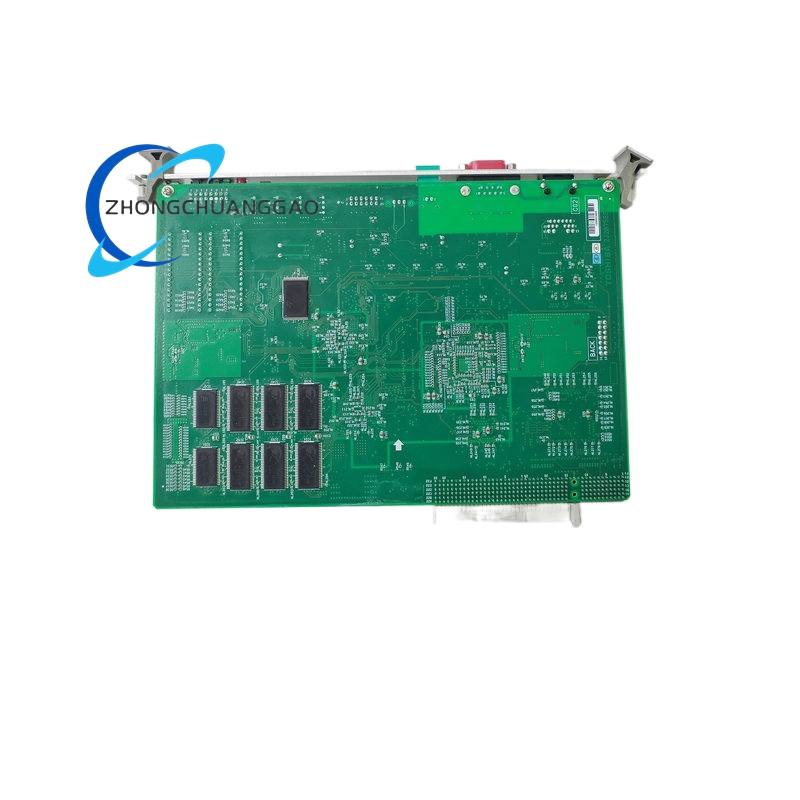

Toshiba CPUX01-01

Description

Technical Specifications:

• Manufacturer: Toshiba Industrial Systems

• Processor: Intel Celeron N2920 (quad-core, 1.86 GHz, Intel Braswell architecture, TDP 6W)

• Alternative Processor Configuration: Intel Pentium 4, 1.6 GHz; or 32-bit RISC industrial CPU

• Memory: 4 GB DDR3L; or 512 MB DDR1; or 256 KB – 1 MB RAM (battery or supercapacitor backup for PLC variant)

• Storage: 1 GB CF card; or 32 MB Flash

• Operating System: Windows XP Embedded

• Communication Interfaces: 2× USB 3.0 ports; 2× USB 2.0 ports; 1× Gigabit Ethernet port; 1× HDMI port; 1× VGA port

• Scan Speed: 0.05 – 0.1 μs/instruction (Boolean logic for PLC variant)

• User Program Capacity: 512 KB – 2 MB Flash (power-fail retained)

• Operating Temperature: 0°C to +55°C

• Protection Rating: IP20 (requires installation in control cabinet)

• Certifications: CE, UL, CCC

Functional Features:

• Executes complex control algorithms, data processing, logic operations, and sequence control for turbine generator units

• Dual Gigabit Ethernet ports for redundant communication

• High-speed deterministic control with microsecond instruction execution

• Multi-protocol communication: Modbus TCP, Toshiba proprietary protocols, optional CC-Link, DeviceNet, or Profibus master/slave modules via expansion slots

Performance Parameters:

• Quad-core 1.86 GHz processing for demanding real-time control applications

• Single-slot 3U form factor enables space-efficient system design

Material Composition: Industrial-grade components designed for extended operational life in power generation environments.

Structural Features: 3U compact form factor for space-efficient rack installation. Front panel I/O access with USB, Ethernet, HDMI, and VGA ports.

Working Principle: The CPUX01-01 functions as the central processing unit within Toshiba TOSMAP or LOGO series control systems. It executes user-defined control programs (ladder logic, FBD), scans local and remote I/O modules, processes communication requests, and implements fault diagnosis and safety protection. The module cycles through program execution and I/O scanning at deterministic intervals, ensuring real-time control response.

Advantages and Highlights:

• Toshiba’s proprietary real-time kernel architecture with strong EMC design

• Operates stably in environments with dense frequency inverter interference and arc interference

• Microsecond instruction execution for high-speed packaging and sorting applications

• Strong anti-interference design compliant with IEC 61000-4 industrial EMC standards (surge, EFT, ESD)

• Modular expansion supports hundreds or thousands of I/O points

• Long-term supply support: Toshiba provides 10+ year lifecycle support for industrial PLC products

Applicable Industries:

• Power Generation (turbine generator control systems)

• Industrial Automation (automotive welding lines, chemical reactor group control)

• Intelligent Building BAS Systems

• Semiconductor Cleanroom HVAC Control

Model Series: Toshiba TOSMAP Series / LOGO Series

Installation Requirements:

• Installs into standard DIN rail-mounted rack system

• Requires installation within control cabinet due to IP20 rating

• Verify compatible backplane and power supply configuration

Usage Precautions:

• CPUX01-01 is a dedicated industrial PLC controller, not a general-purpose computer motherboard

• Watchdog timer and dual-check memory mechanisms protect against power fluctuations causing program runaway

• Ensure proper cabinet ventilation within 0°C to +55°C operating range

• Follow ESD precautions during handling and installation
