Product Short Description
Product Overview

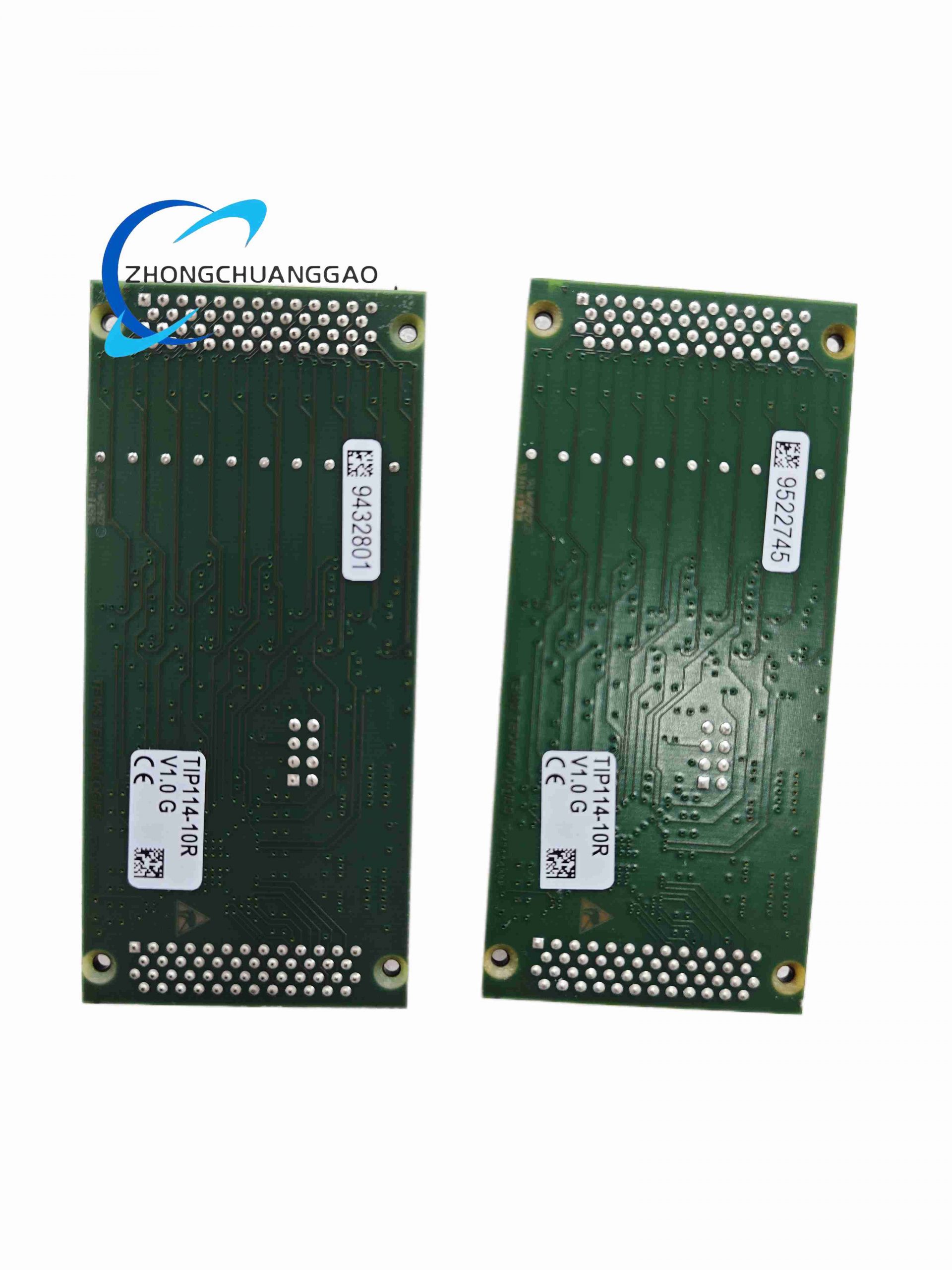

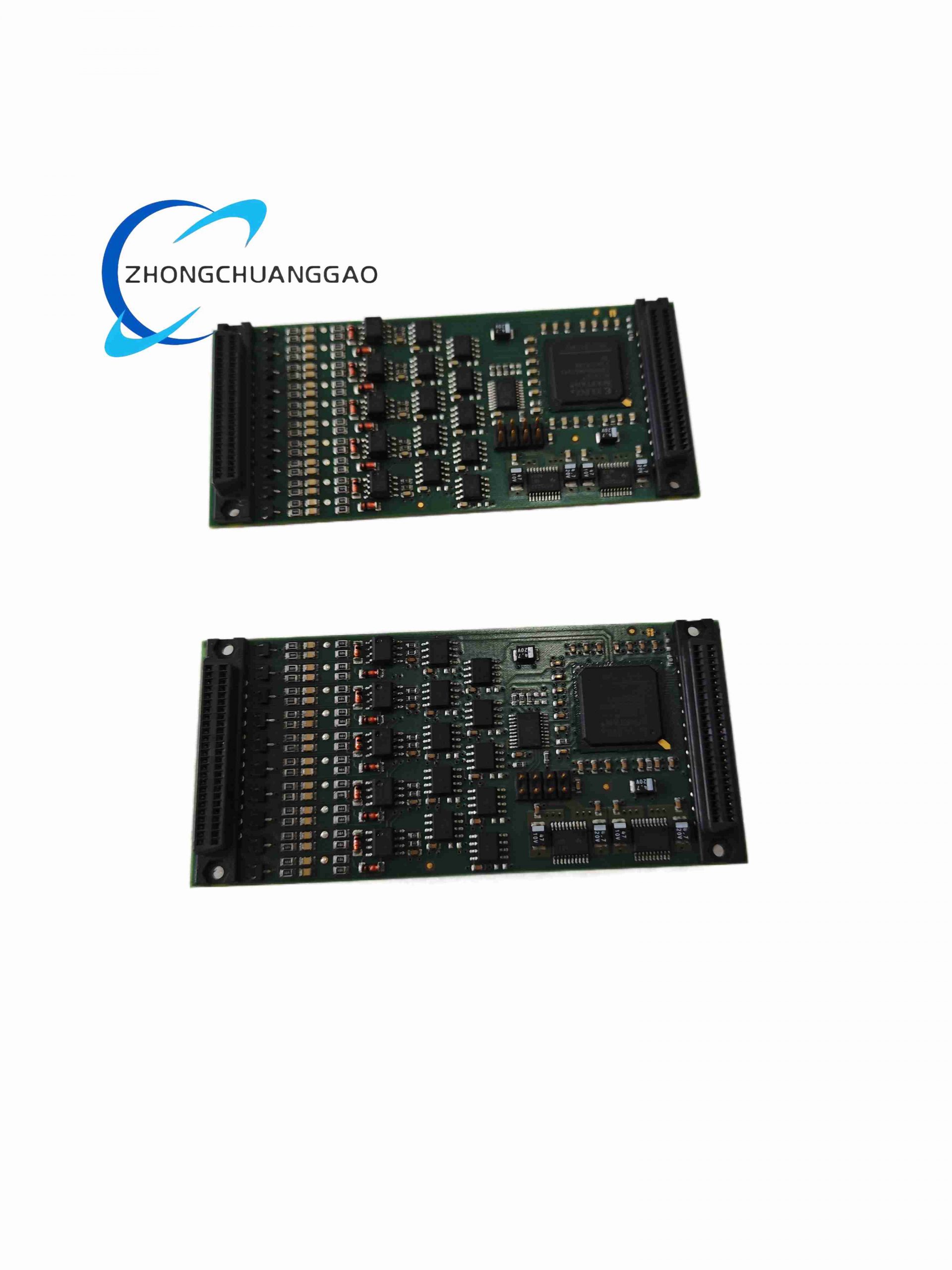

TIP114-10R is a high-isolation industrial serial communication module developed by TEWS Technologies, designed for rack-mounted industrial control systems to expand isolated RS485 fieldbus communication ports. It provides four galvanically isolated RS485 transceiver channels with robust surge and EMC protection, supporting Modbus RTU, Profibus DP slave and other serial industrial protocols to connect field transmitters, valve positioners and remote I/O devices. The -10R suffix indicates 10kV reinforced channel-to-backplane isolation rating.
Description
Core Technical Specifications
- Channel Count: 4 independent galvanically isolated RS485 communication channels
- Isolation Rating: 10kV reinforced isolation between each RS485 channel and module backplane bus
- Serial Standard: RS485 half-duplex differential communication
- Baud Rate Range: 300bps – 115200bps software configurable per channel
- Supported Protocols: Modbus RTU, Modbus ASCII, Profibus DP, DF1 serial industrial protocols
- EMC Protection: ±25kV ESD HBM, ±2kV EFT burst, ±1kV surge protection per communication channel
- Termination Resistor: Software switchable 120Ω bus termination resistor per channel
- Backplane Interface: TEWS proprietary TIP industrial rack bus
- Operating Power Supply: 24VDC, 110mA maximum module consumption
- Operating Temperature: -40°C to +85°C wide industrial extended temperature range
- Humidity Range: 5%–95% RH non-condensing
- Physical Dimensions: 120(H) × 100(W) × 28(D) mm
- Net Weight: 310g
Key Functional Features
- 10kV reinforced galvanic isolation eliminates ground loop noise between field serial devices and central control rack backplane
- Four independent RS485 channels with separate transceiver circuits; single channel fault does not impact remaining communication ports
- Software-configurable 120Ω bus termination resistor for long-distance fieldbus cable matching
- Multi-level EMC surge and electrostatic discharge protection for harsh industrial electromagnetic environments
- Automatic RS485 transmit/receive direction control without external hardware handshaking signals
- Hot-swappable rack mount design for online communication port expansion without system power shutdown
- Channel-level communication diagnostic counters: transmit frame count, receive frame count, parity error, CRC error logging
Working Principle
24VDC rack power supplies isolated DC-DC converter circuits inside the module, generating independent isolated power rails for each of the four RS485 transceiver channels. Serial data packets transmitted from the rack backplane bus enter isolated signal transformers to break ground loop conduction paths, then feed dedicated RS485 differential transceivers for conversion to fieldbus differential A/B signal lines. Field device response signals travel back through reverse isolation transformers to the backplane communication processing unit. Built-in error detection circuits monitor parity, framing and CRC checksum errors on all incoming serial frames; error statistics are stored in module register memory for upper controller diagnostic reading. Software-controlled solid-state switches engage 120Ω termination resistors for long cable length bus segments to eliminate signal reflection distortion.
Material Composition & Structural Characteristics
- Module Enclosure: Black anti-static UL94-V0 polycarbonate alloy, dust-resistant industrial rack form factor
- Main PCB: Double-layer FR-4 fiberglass substrate with high-voltage isolation transformer routing separation zones
- Isolation Components: 10kV rated signal isolation transformers, isolated DC-DC power converter modules for each channel
- Communication Transceivers: Industrial wide-temperature RS485 differential driver/receiver chips with built-in surge protection
- Terminal Interface: Screw-clamp tin-plated copper terminal blocks for field RS485 A/B wiring connections
- Indicator Panel: Small LED status indicators for each channel (transmit, receive, fault) covered by scratch-resistant polycarbonate lens
Installation Requirements
- Install on TEWS TIP series standard 19-inch industrial rack backplane single slot positions
- Maintain minimum 10mm vertical ventilation clearance between adjacent modules to dissipate isolation converter heat
- Field RS485 wiring uses shielded twisted pair cables; single-point shield grounding at control cabinet earth bar only
- Rack frame grounding resistance ≤4Ω to maximize EMC surge protection performance
- Route serial communication cables separately from high-current AC power wiring with minimum 20cm separation distance
- For fieldbus cable lengths exceeding 200m, enable software 120Ω termination resistor on the bus end channel
- Front panel LED indicators must remain visible for routine communication fault inspection
Typical Application Scenarios
- Petrochemical DCS remote Modbus RTU transmitter communication expansion
- Power plant substation remote I/O serial fieldbus interface racks
- Water treatment plant multi-channel valve positioner Modbus connection
- Mining plant underground remote sensor serial communication isolation modules
- Pharmaceutical manufacturing batch control serial device expansion racks
- Wind turbine control cabinet remote serial field device interface
Operation & Maintenance Precautions
- Disconnect all field RS485 wiring before hot-swapping the module to avoid transient high-voltage surge damage to isolation transformers
- Clear channel error diagnostic counters monthly during routine system maintenance to identify degrading fieldbus cable connections
- Prevent cabinet dust accumulation on module PCB isolation transformers to avoid high-voltage isolation degradation
- Spare TIP114-10R modules must be stored in ESD anti-static packaging at stable 0–40°C ambient temperature
- Do not connect fieldbus cables with induced voltage exceeding 60VDC to RS485 channel terminals
- After module replacement, conduct full channel communication loop test with field devices to verify isolation and data transmission integrity
- Avoid installing module in cabinet locations exposed to direct radiant heat from power transformers or drive heat sinks
