Product Short Description
Product Name
VMEbus Multi-Port Serial Communication Module (RS232/422/485)
Product Introduction
The SST 5136-RE-VME is a 6U VMEbus serial communication card providing four independently configurable asynchronous serial ports for embedded VME controllers. Manufactured originally by SST (Smart Serial Technology, later under Woodhead/HMS/ProSoft lineage).
Description
Technical Specifications
- Bus: VME 6U, IEEE 1014, A16/A24 address, D08/D16/D32 data
- Serial Ports: 4 independent channels
- Port Modes: Software-selectable RS232, RS422, RS485 (half/full duplex)
- Baud Rate: Up to 1.5 Mbit/s (standard rates 300 bps-115.2 kbps)
- Protocol Support: Modbus RTU/ASCII, DF1, Siemens PPI, custom via API
- OS Drivers: VxWorks, Linux, Windows NT/2000
- Operating Temperature: 0 to 60 °C commercial (wide-temp options -40 to 70 °C)
- Mounting: Standard 6U VME crate
Functional Features
- Four isolated or non-isolated serial channels in one slot
- Software-controlled electrical interface per channel
- DMA-capable buffer architecture for low CPU overhead
- Legacy fieldbus bridging for VME hosts
Application Scenarios
Retrofit communication in Motorola MVME, GE Fanuc, and Radisys VME systems; PLC-to-instrument links, multi-vendor serial aggregation, distributed data acquisition.
Structural Characteristics

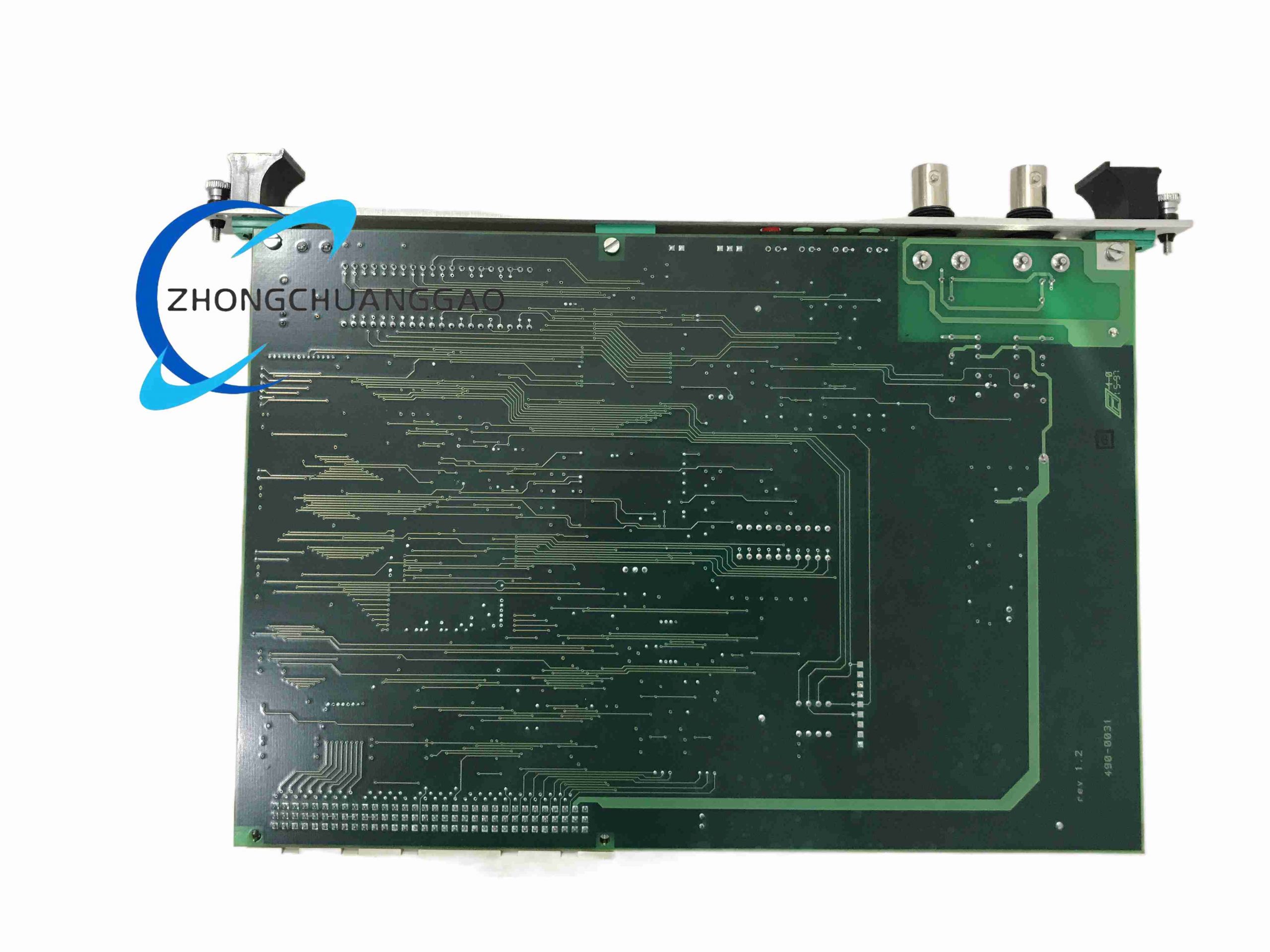

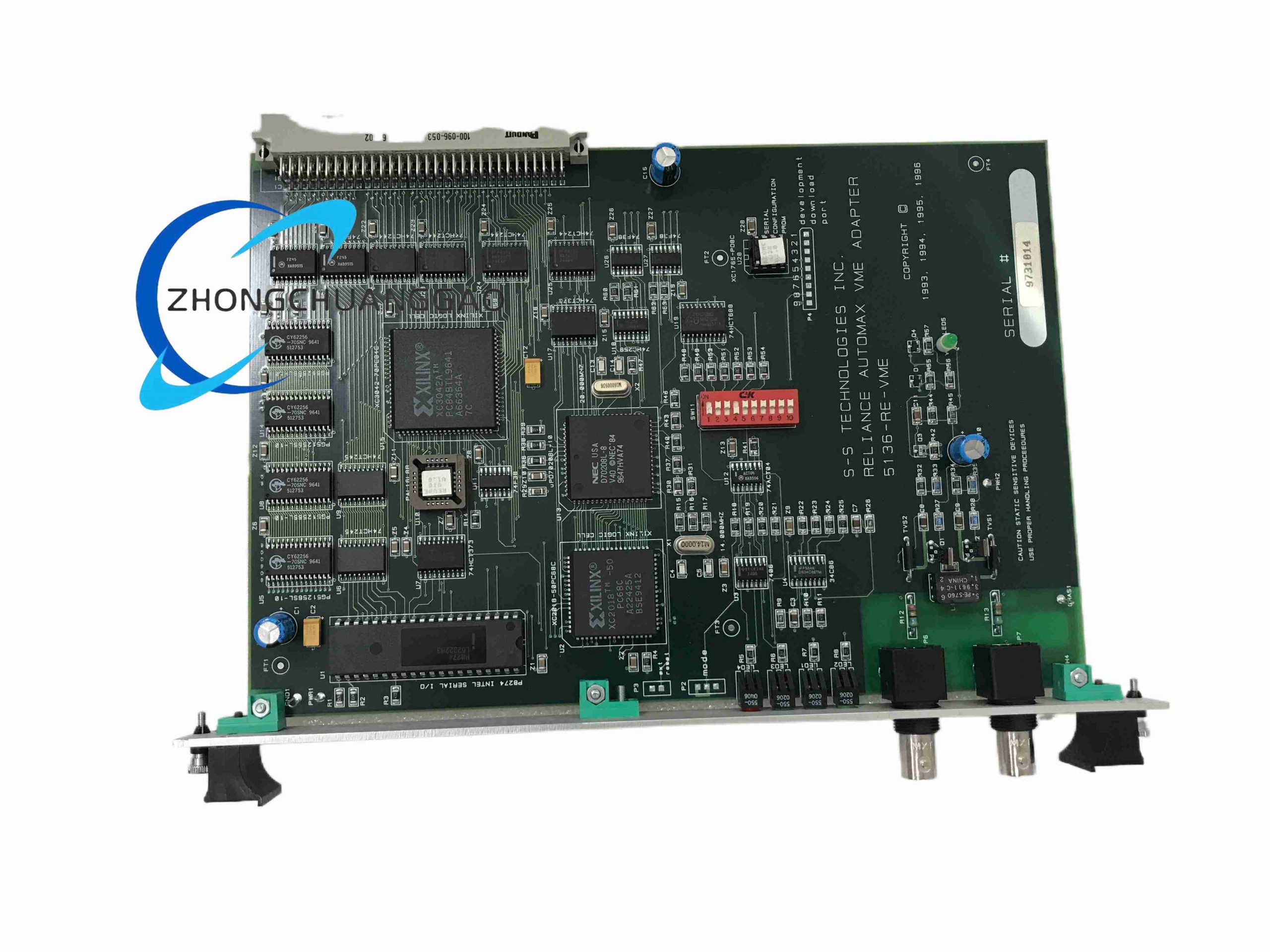

6U VME printed circuit board with front-panel DB-style or screw-terminal serial connectors, VME P1/P2 rear connectors, and onboard UART/FPGA logic.
Working Principle
The VME host accesses the module through mapped memory or programmed I/O. An onboard controller manages FIFO buffers and UART timing for each serial port, offloading frame assembly from the main CPU.
Installation Requirements
Insert into a free 6U VME slot with VME64/32 backplane support. Install the correct OS driver. Configure port mode and addresses via jumpers or software.
Usage Precautions
Match serial cable shielding and termination to RS485 topology rules. Do not exceed stated baud-vs-distance limits. Verify VME address space does not collide with other boards.
