Product Short Description

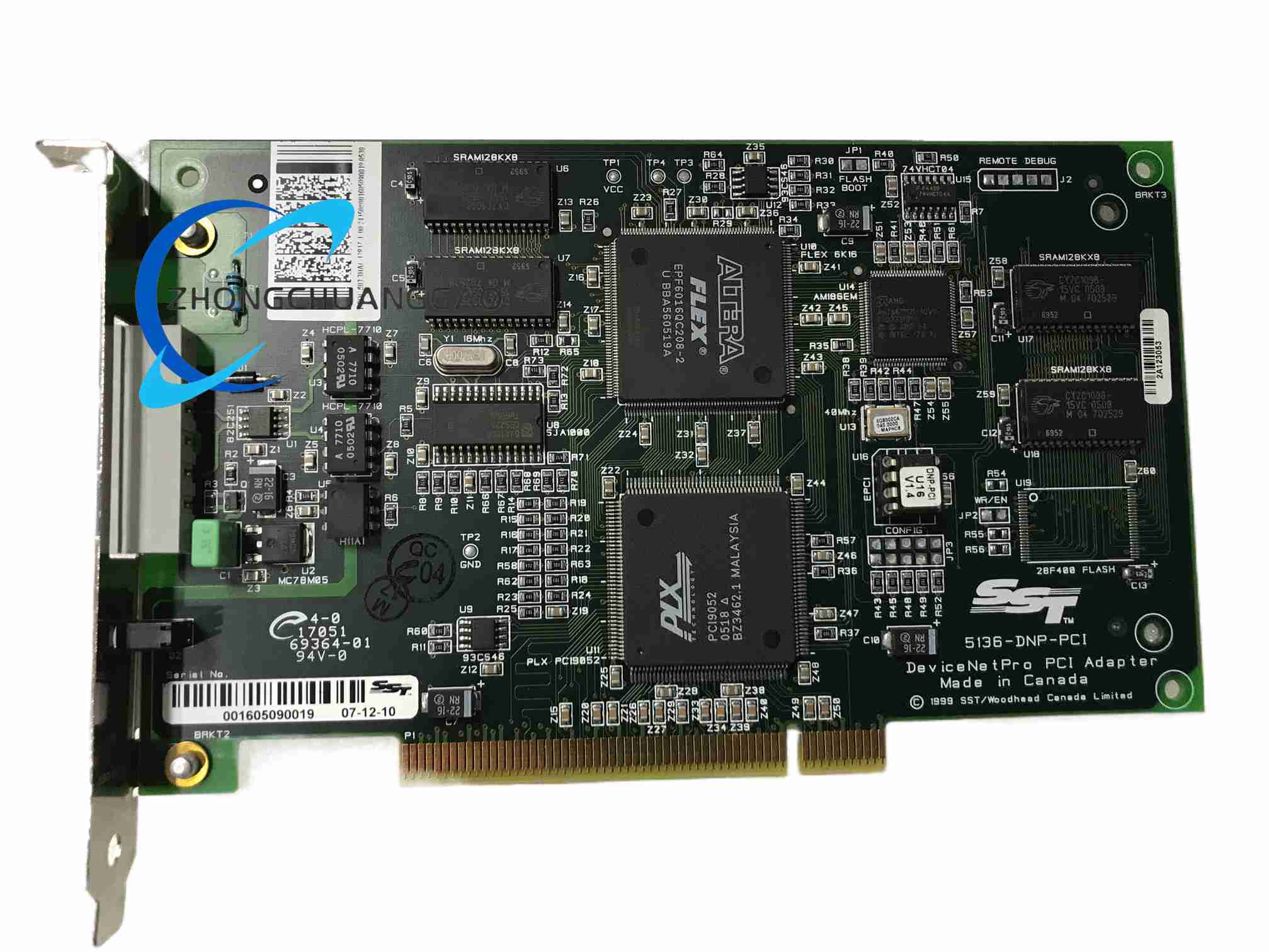

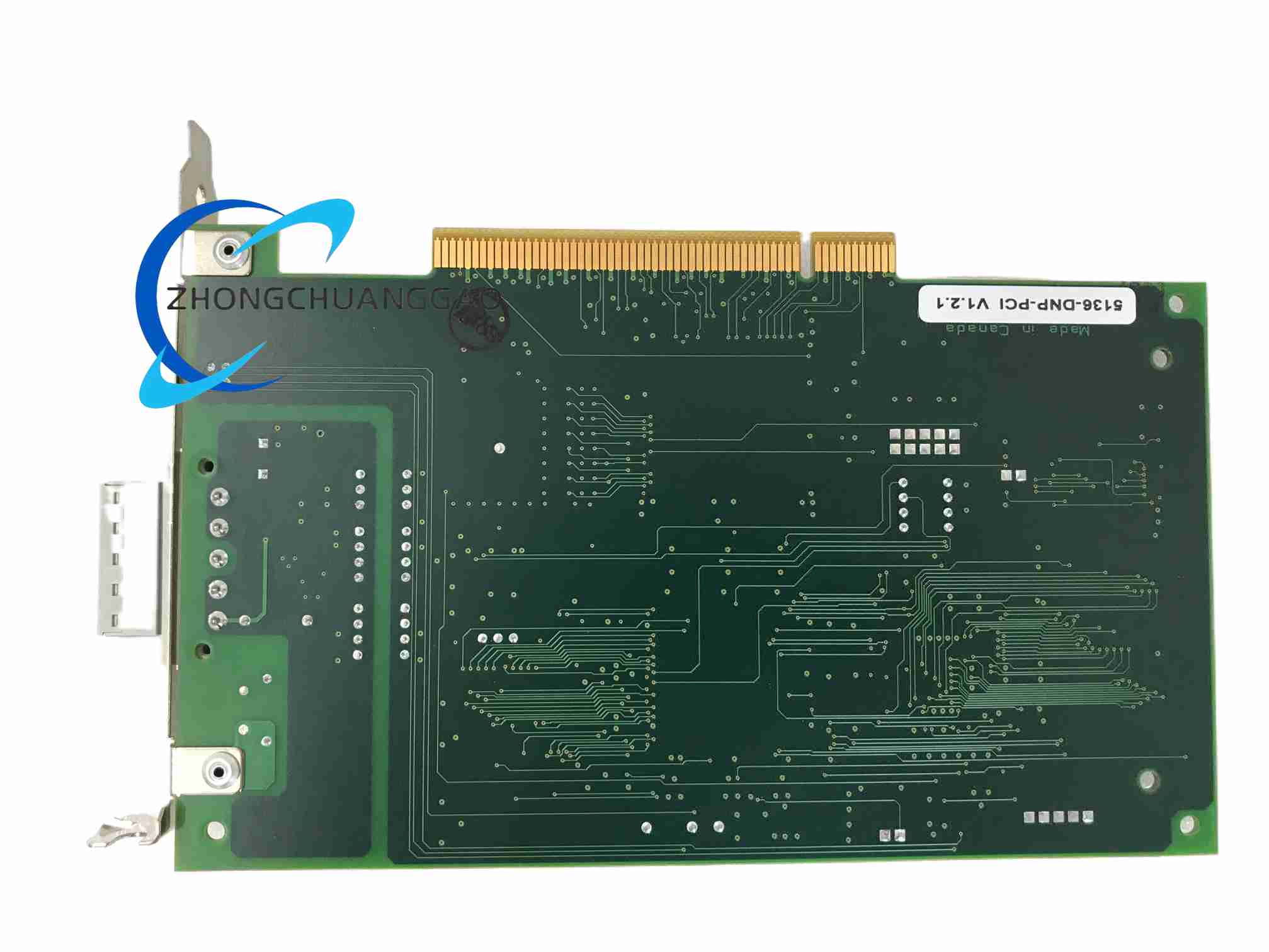

Product Name: SST 5136‑DNP‑PCI DeviceNet Interface Card (PCI form factor)
Product Introduction: A PCI‑bus card that connects a PCI‑based computer to a DeviceNet network. The entire DeviceNet protocol is executed in hardware and the card performs client and server operations simultaneously.
Technical Specifications:
-
Baud Rates: 125 KBaud, 250 KBaud, 500 KBaud (all standard DeviceNet rates)
Description
-
Protocol Execution: Full DeviceNet protocol in hardware
-
Operating Mode: Simultaneous client and server operations
Functional Features:
-
Hardware‑accelerated DeviceNet stack
-
Dual‑role capability (master/scanner + slave/adapter concurrently)
-
Seamless PCI bus integration
Application Scenarios: Used as a DeviceNet master in intelligent circuit breaker monitoring systems, smart valve fieldbus interfaces, and PC‑based DeviceNet network supervisory nodes.
Working Principle: The onboard processor handles the complete DeviceNet protocol independently; the host PC exchanges I/O data and explicit messages through the PCI bus without being burdened by protocol timing.
Installation Requirements: Insert into a free PCI slot; install vendor‑provided driver and API library; set node address and baud rate via configuration software or DIP switches.
Usage Notes: When used for DeviceNet conformance testing, the card acts as the network master at a configurable media access identifier; ensure the physical DeviceNet cable meets ODVA specifications.
