Product Short Description

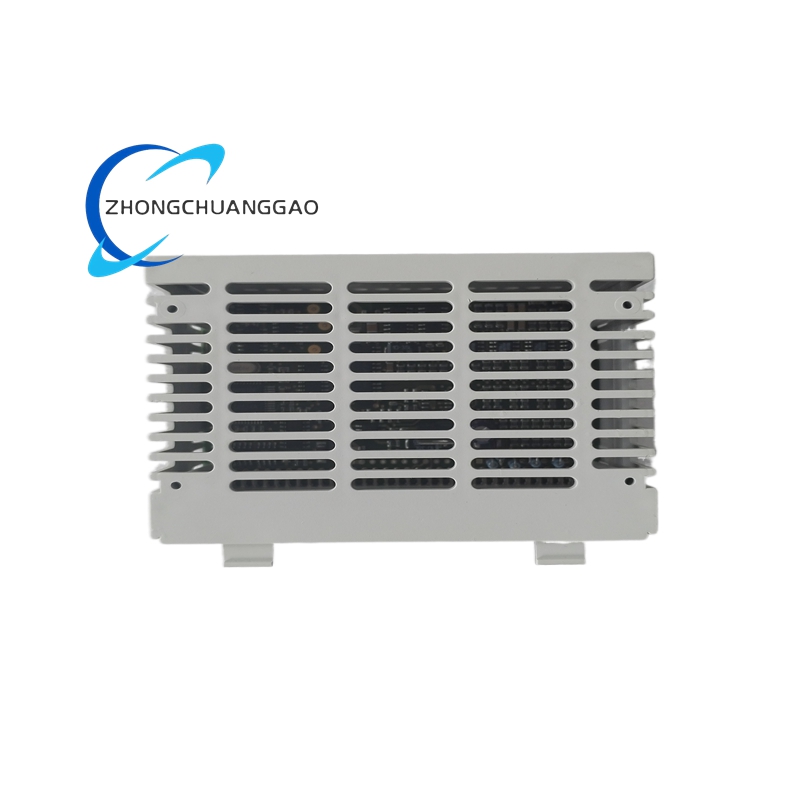

Product Name: Sigmatek 05-009-084 Communication Interface Module
Product Series: Sigmatek Industrial Communication Module Series
Product Brief: Dedicated communication expansion module for Sigmatek automation system. It expands industrial communication interfaces, realizes data interconnection between main control units, remote I/O stations and third-party equipment, and expands system communication capacity.
Description
- Supply Voltage: 24 V DC ±10%
- Operating Temperature: -20 °C ~ +65 °C
- Storage Temperature: -30 °C ~ +80 °C
- Relative Humidity: 5% ~ 95% RH (Non-condensing)
- Communication Interface: RS485 + Industrial Bus Interface
- Maximum Communication Rate: 1.5 Mbps
- Communication Isolation Voltage: 1800 V AC
- Expand multi-type industrial communication interfaces for control system
- Protocol conversion and bidirectional data transmission between devices
- Communication signal isolation and surge protection
- Communication status self-diagnosis and fault indication
- Support multi-station network connection and data sharing
- Power Consumption: ≤ 6 W
- Transmission Distance: Max 1000 m at low baud rate
- Vibration Resistance: 8 Hz ~ 150 Hz, 0.8 g
- Transmission Delay: ≤ 0.6 ms
- MTBF: ≥ 98000 hours
- PCB: High-density FR-4 circuit board
- Enclosure: Flame-retardant anti-aging plastic shell
- Core Chips: Communication processing chip, isolation chip, transceiver chip
- Interface Terminals: Nickel-plated alloy contacts
- Protection Devices: Surge arresters and EMC components
- Standard DIN rail mounting modular design
- Rear and side layout of communication ports and power terminals
- Internal isolation partition between communication circuit and power circuit
- Compact shell structure with dustproof design
- Buckle structure for combined installation with other modules
After power-on, the module initializes communication circuits and establishes connection with upper and lower equipment. It parses received data frames, completes protocol conversion and data forwarding. The isolation circuit isolates interference from communication lines to ensure stable and error-free long-distance data transmission.
- Multiple communication interfaces integrated, flexible system expansion
- Electrical isolation design, effectively prevent lightning surge damage
- Long-distance stable transmission capability
- Low power consumption and stable long-term operation
- Plug-and-play, simple configuration and easy maintenance
Centralized monitoring system, remote I/O control, factory networking, logistics automation, large-scale production line control
- Mount on standard 35 mm DIN rail inside control cabinet
- Use shielded twisted-pair cables for communication wiring
- Standard single-point grounding for cable shielding layer
- Install in dry and ventilated area, away from strong interference sources
- Reserve maintenance space for port inspection
- Do not hot plug communication cables during system running
- Match communication baud rate and address strictly during configuration
- Regularly inspect cable aging and connector looseness
- Prevent lightning strike by matching external lightning protection devices for long-distance wiring
- Do not use beyond rated temperature and humidity range
