Product Short Description

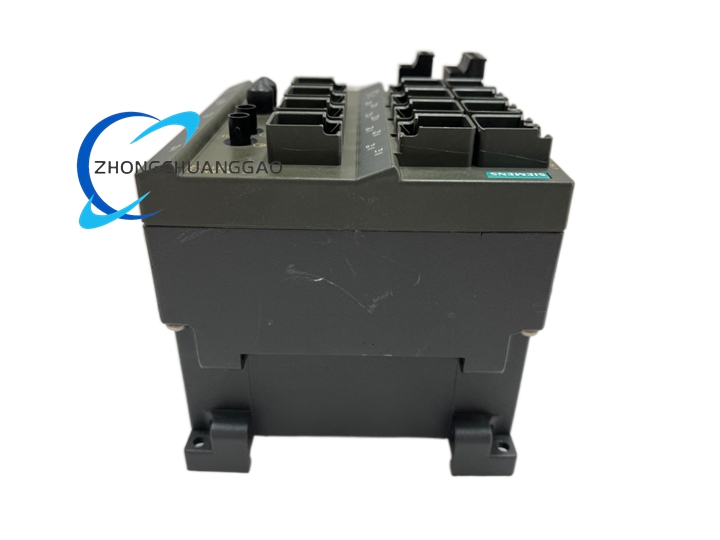

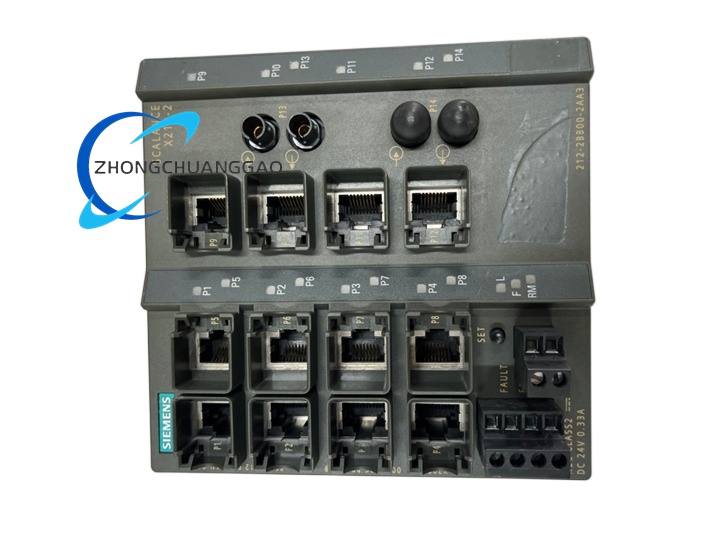

Product Name: SCALANCE X212‑2 Managed Industrial Ethernet Switch
Overview:
A 12‑port managed IE switch with two optical BFOC ports, intended for large‑scale industrial networks. Product lifecycle: cancelled since 01.10.2024; successor is XC216‑4C. It is now offered only as a spare part.
Description
Technical Specifications:
-
Ports: 12 × 10/100 Mbps RJ45 + 2 × 100 Mbps multimode BFOC
-
Transfer rate: 10 / 100 Mbit/s
-
LED diagnostics: Yes
-
Fault‑signaling contact: Yes, with set button
-
Redundant power supply: Yes (2 × 24 V DC, 18 – 32 V DC)
-
Max. current consumption: 0.33 A
-
Power loss: 7.92 W @ 24 V DC
-
Signaling contact rating: 24 V DC, max 0.1 A
-
Fuse protection: 1.1 A / 33 V at power input
-
PROFINET IO device: Yes
-
Network management: Integrated redundancy manager, CLI, Web‑based management, MIB support, SNMP v1/v2/v3, LLDP, DCP, port mirroring
-
C‑PLUG: Optional
-
Enclosure / protection: IP30
-
Operating temperature: –40 °C to +60 °C
-
Storage temperature: –40 °C to +70 °C
-
Relative humidity: ≤95 % @ 25 °C, non‑condensing
-
Dimensions (W×H×D): 120 × 125 × 124 mm
-
Net weight: 1.2 kg (catalog states 1.479 kg)
-
Mounting: 35 mm DIN rail, S7‑300 rail, wall‑mount (not S7‑1500 rail)
-
Compliance: RoHS since 25.06.2007; contains lead >0.1 % (REACH Art. 33); WEEE take‑back obligation
-
Country of origin: Germany
Features:
Full managed L2 switch; redundant ring reconfiguration; PROFINET diagnostics; e‑mail traps; CLI/Web/TIA configuration.
Application Scenarios:
Large factory‑floor Ethernet backbones, redundant ring topologies, integration with SIMATIC PLCs.
Construction & Material:
Compact metal enclosure, IP30.
Working Principle:
Store‑and‑forward switching with managed VLAN, QoS, SNMP and integrated Redundancy Manager for sub‑100 ms ring recovery.
Installation Requirements:
DIN‑rail or wall‑mount; dual 24 V DC feeds fused at ≤1.1 A; multimode fiber (62.5/125 µm or 50/125 µm) up to 3 km for BFOC ports.
Precautions:
-
Product is discontinued—plan migration to successor XC216‑4C.
-
Optical ports require proper BFOC connector cleaning.
-
Keep ambient ≤60 °C and humidity ≤95 % non‑condensing.
-
Lead content mandates compliant disposal per WEEE.
