Description
Technical Specifications:
-

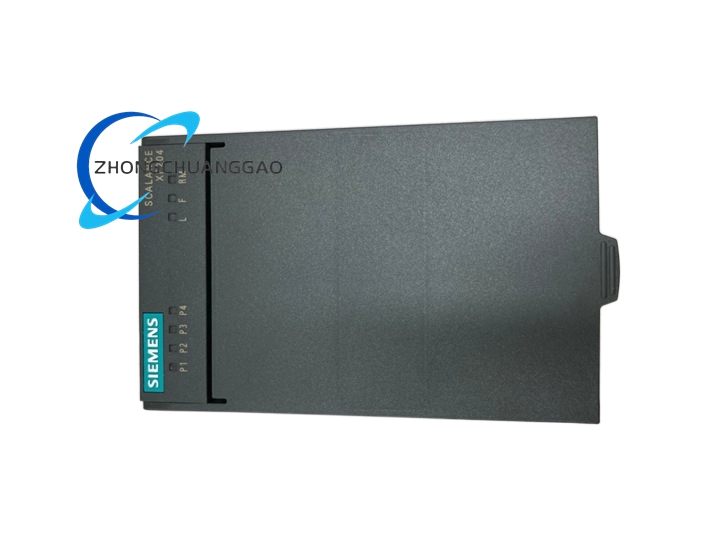

Product type designation: SCALANCE XF204
-
Transfer rate: 10 Mbit/s, 100 Mbit/s
-
Electrical ports: 4 × RJ45 (10/100 Mbps, TP)
-
Redundant power supply: Yes, 2 × 24 V DC (19.2 – 30 V DC)
-
Typical power consumption: approx. 2.6 W (≈0.11 A)
-
Fault‑signaling contact: Yes, with set button
-
C‑PLUG slot: Yes (optional configuration memory)
-
PROFINET IO device: Yes
-
Integrated redundancy manager: Yes (supports MRP, RSTP/STP)
-
Management: Web / CLI / TIA Portal; SNMP, VLAN, port mirroring, QoS
-
Enclosure / protection: Metal housing, IP20
-
Operating temperature: –40 °C to +60 °C
-
Dimensions (W×H×D): 75 × 125 × 73 mm (flat narrow body)
-
Weight: approx. 0.25 kg
-
Mounting: 35 mm DIN rail / wall‑mount
-
Certifications: CE, cULus, KC, PROFINET IO
Features:
Ultra‑narrow 75 mm width for tight cabinets; ring‑topology redundancy; seamless PLC integration; C‑PLUG for one‑click configuration backup/restore; wide‑temperature dual‑power redundancy.
Application Scenarios:
Industrial Ethernet networking in harsh environments requiring high availability—e.g., automotive lines, food & beverage plants, material handling.
Construction & Material:
Metal enclosure (IP20) for dust and touch protection.
Working Principle:
Line‑speed Layer‑2 switching with managed VLAN, QoS and redundant ring protocols (MRP) to guarantee millisecond‑level reconfiguration on link failure.
Installation Requirements:
Mount on 35 mm DIN rail or wall; connect two independent 24 V DC sources for redundancy; use industrial FastConnect RJ45 cables (≤100 m).
Precautions:
-
Ensure both power feeds are from independent sources to achieve true redundancy.
-
Do not operate above +60 °C ambient.
-
Use shielded cables in high‑EMI areas.
-
Configuration backup should be performed with C‑PLUG before maintenance.
