Product Short Description

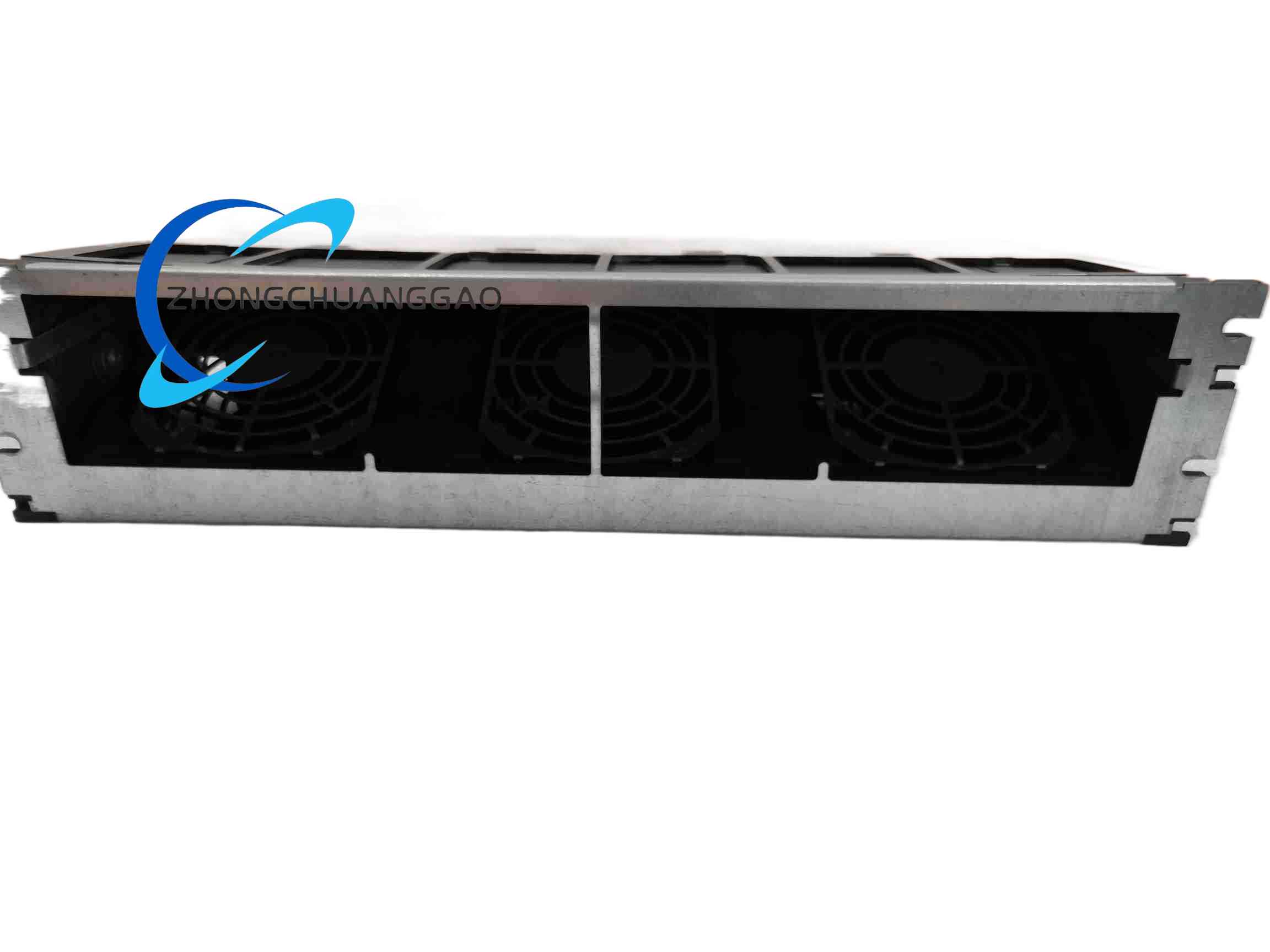

Product Name: SIMATIC S7-400 – 24 V DC Fan Subassembly
Product Introduction: The 6ES7408-1TA01-0XA0 is a 24 V DC fan subassembly designed for the Siemens SIMATIC S7-400 automation system. It provides forced cooling for the S7-400 controller cabinet/chassis and includes monitoring functionality for fan operation.
Description
Technical Specifications:
-
Dimensions (W × H × D): 482.5 × 109.5 × 235 mm
-
Weight: Approx. 1600 g
-
Cable Cross-Section: 0.5 to 2.5 mm² (litz with connector sleeve)
-
Input Voltage (Nominal): 24 VDC
-
Permissible Range (Static): 20.4 to 28.8 VDC
-
Permissible Range (Dynamic): 18.5 to 30.2 VDC
-
Rated Current: 200 mA
-
Current (Voltages, currents): 24 VDC Static: 19.2 to 28 V
-
Switching Current: 450 mA
-
Starting Current: 0.9 A at 24 V
-
Fuse (Wickmann Series 195): 250 V / 1.0 AT
-
Power Consumption:
-
With fan: 12 W
-
Without fan: 1.4 W
-
-
Fan Lifespan at 40°C: Typ. 70,000 hours
-
Maximum Contact Load of Relay Contacts 1 to 6: 250 V / 1.0 AT
-
Included Fuse: Standard cartridge fuse links, 5 × 20 mm, DIN 1.0 AT (pre-installed from factory)
Monitoring Function:
-
In case of fault (defective fans), the fans are NOT switched off
-
After replacing defective fan(s), the fault is acknowledged automatically once fans reach required speed
-
Faults are not stored
-
On power-up, fans start running
-
After approx. 10 seconds, fan status is indicated via LEDs and relays
Installation & Usage Notes:
-
Follow general S7-400 installation guidelines for mounting the 24 V DC fan subassembly
-
CAUTION: If the monitoring PCB is inserted in the wrong position during maintenance, the fan subassembly may be damaged – always ensure correct positioning of replacement monitoring PCB
-
Shielding clamps supplied may be omitted if not required (do not install unused clamps in the fan subassembly)
