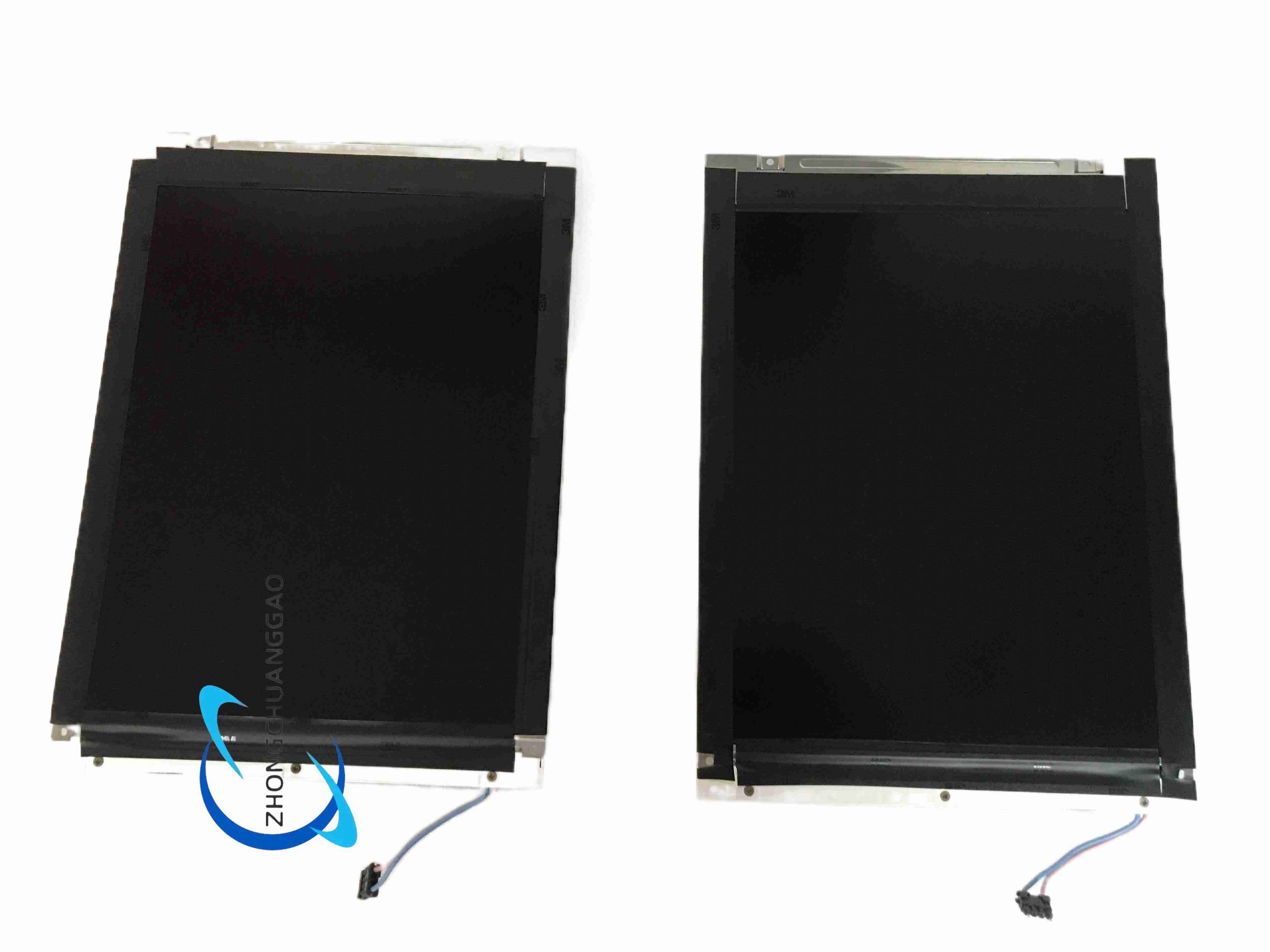

SHARP LM64P89L

Description

Technical Specifications:

• Display Size: 10.4 inch
• Resolution: 640 × 480 (VGA)
• Active Area: 211.17 mm × 158.37 mm
• Outline Dimension: 268 mm × 190 mm × 7 mm
• Pixel Pitch: 0.330 mm × 0.330 mm
• Brightness: 75 cd/m² (Typical)
• Contrast Ratio: 18:1 (Typical, Transmissive)
• Response Time: 200 ms / 150 ms (Tr / Td, Typical)
• Backlight Type: 1 piece CCFL lamp, 25000 hours service life
• Signal Interface: 15-pin 4-bit parallel data
• Supply Voltage: 5.0 VDC (Typical)
• Operating Temperature: 0 ℃ ~ 45 ℃
• Storage Temperature: -25 ℃ ~ 60 ℃
• Weight: 340 g (Typical)

Function Features: Landscape orientation design, positive monochrome display mode, built-in CCFL backlight system, fixed mounting holes on left and right bezels, low power consumption.

Application Scenarios: Industrial PC display, CNC machine tool operation panel, medical equipment display terminal, factory automation control interface, bank terminal equipment.

Material Composition: Glass substrate, FSTN liquid crystal layer, metal frame, plastic bezel, printed circuit board, cold cathode fluorescent lamp, driving IC.

Structural Features: Flat rectangular panel structure, ultra-thin 7mm maximum thickness, edge screw mounting holes, integrated backlight cavity structure.

Working Principle: FSTN liquid crystal molecules modulate light transmittance under electric field control, CCFL backlight provides uniform light source, parallel signal input drives pixel array to realize monochrome graphic and character display.

Installation Requirements: Front panel mounting through reserved screw holes, match 15-pin parallel signal connector, configure separate CCFL backlight driver circuit, ensure ESD protection during operation.

Usage Notes: Avoid static electricity discharge during installation and handling; CCFL lamp has limited service life and requires regular replacement; operate strictly within specified temperature range to prevent image distortion and liquid crystal damage; avoid direct impact on the glass surface.
