Product Short Description

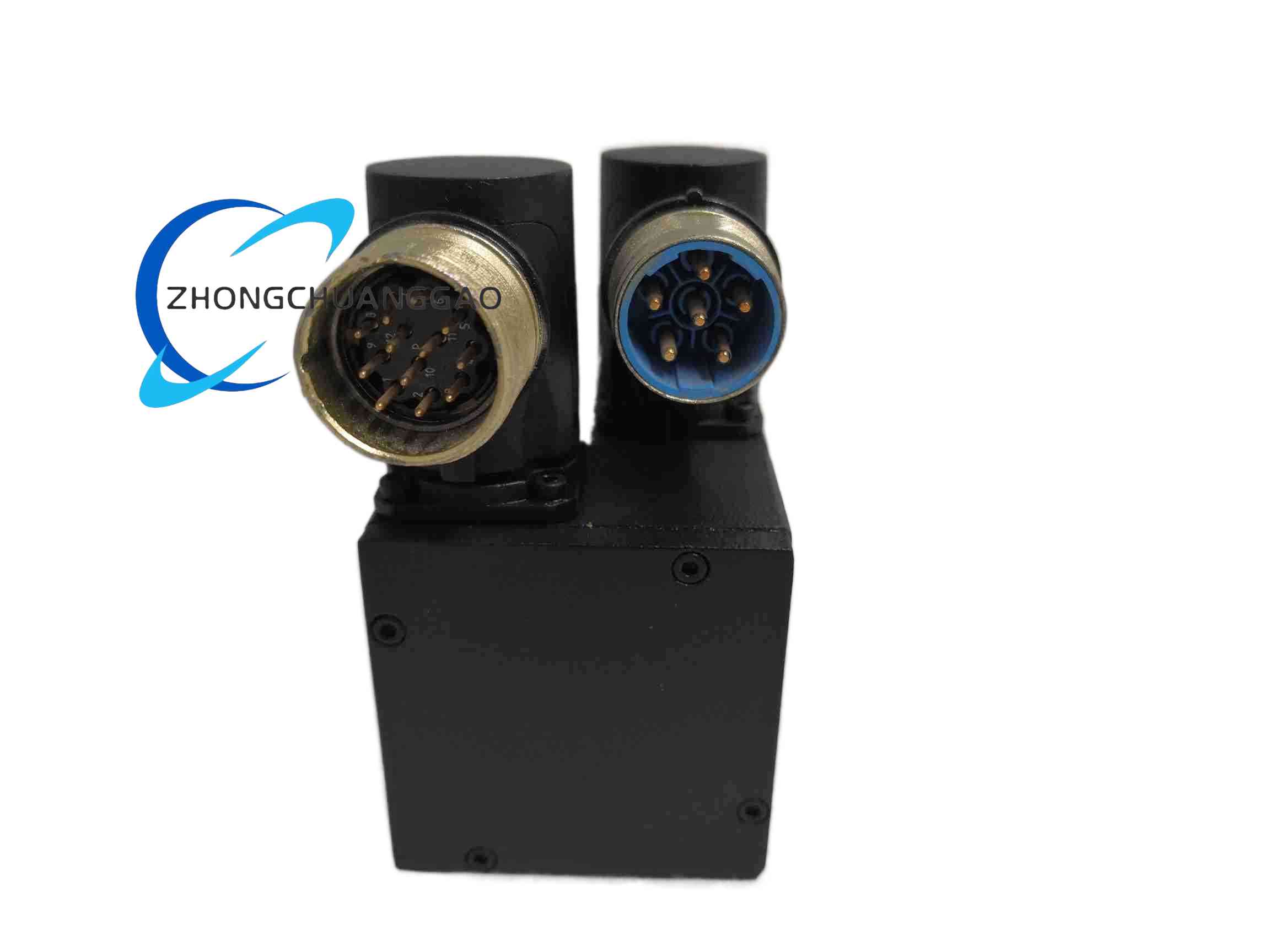

Product Name: SEM HD55C4-32S Industrial Control Module
Product Introduction: The SEM HD55C4-32S is a high-performance industrial control module engineered for automation systems in manufacturing, energy, and process-control environments. It delivers precise, reliable operation where accuracy and speed are critical, and is built to integrate seamlessly into modern industrial control architectures.
Description
Technical Specifications:
- Module Type: High-performance industrial control module
- Channels: 32 input/output channels
- Operating Voltage: 24 V DC
- Current Rating: Up to 2 A per channel
- Communication Interface: Ethernet and RS-485 (PROFIBUS DP supported per configuration)
- Response Time: < 1 ms
- Protection Rating: IP67 (dust-tight and protected against water ingress)
- Operating Temperature: -40°C to +85°C
- Certifications: CE, RoHS compliant
- Weight: 0.5 kg
- Dimensions: 100 mm × 150 mm × 50 mm (compact form factor)
Functional Features: 32-channel I/O handling for complex automation tasks; wide -40°C to +85°C operating range for extreme environments; IP67-rated enclosure for harsh industrial conditions; low power consumption for energy efficiency; Ethernet + RS-485 dual communication for flexible system integration.
Application Scenarios: Discrete manufacturing automation, process control systems, packaging and assembly lines, material handling, and any industrial setting requiring dense, reliable I/O control in harsh conditions.
Structural & Material Characteristics: Compact, ruggedized enclosure designed for DIN-rail or panel mounting; industrial-grade PCB and components rated for continuous operation under vibration, dust, and moisture.
Working Principle: The module receives control commands via its communication interface (Ethernet/RS-485), processes them through its internal logic engine, and drives the 32 I/O channels accordingly. Input channels sample field signals and report status back to the host controller; output channels drive actuators, valves, or relays based on processed logic.
Installation Requirements: Mount in a control cabinet or protected enclosure; ensure 24 V DC supply within the specified range; terminate RS-485 or Ethernet cabling with proper shielding; maintain clearance for heat dissipation despite the wide temperature tolerance.
Usage Notes: Avoid exceeding 2 A per channel; verify network polarity and grounding before energizing; IP67 protection holds only when cable glands and connectors are properly sealed; keep firmware/configuration backed up for rapid replacement.
