Product Short Description
Product Name: Marine Propulsion & Control Module

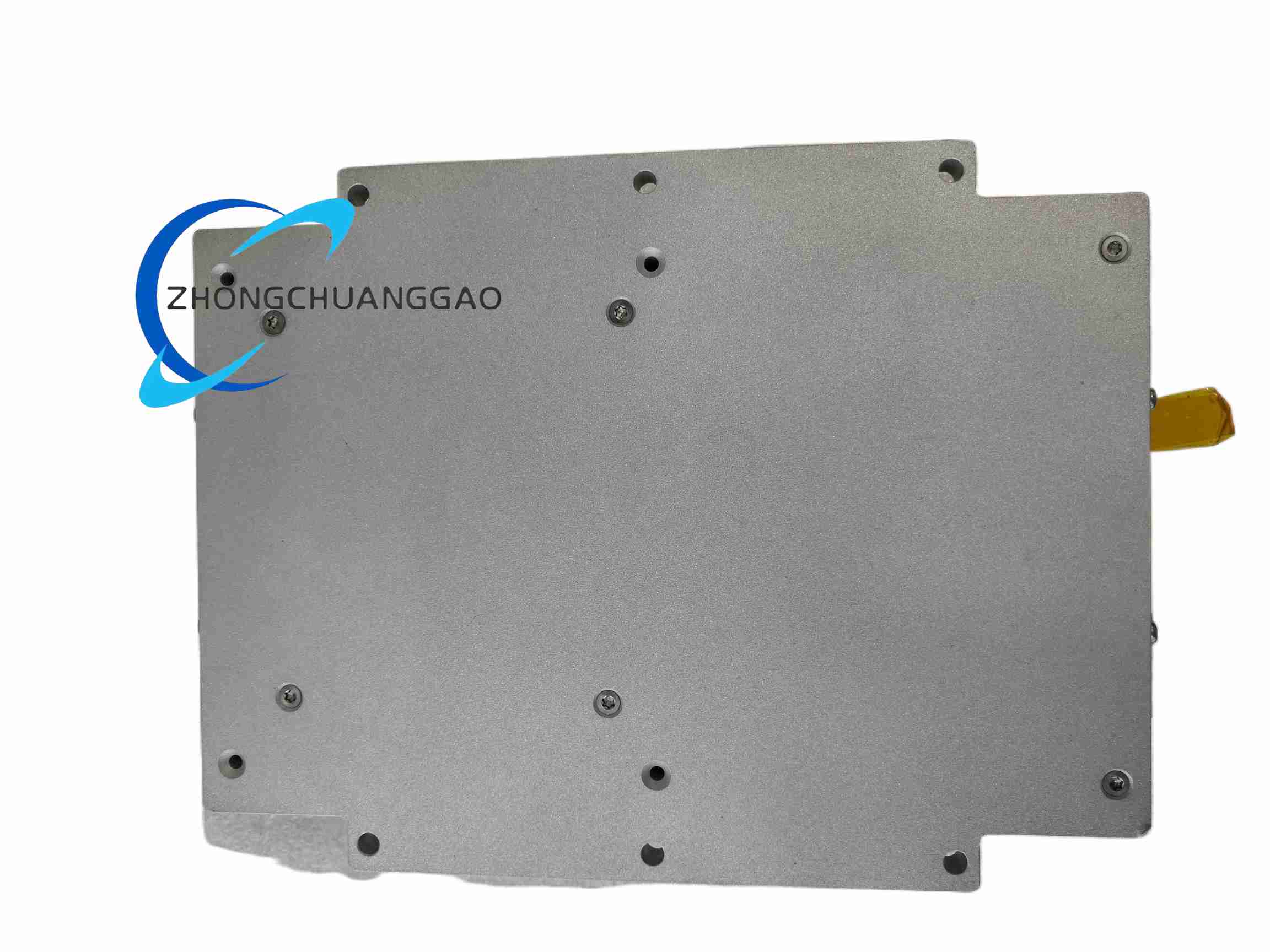

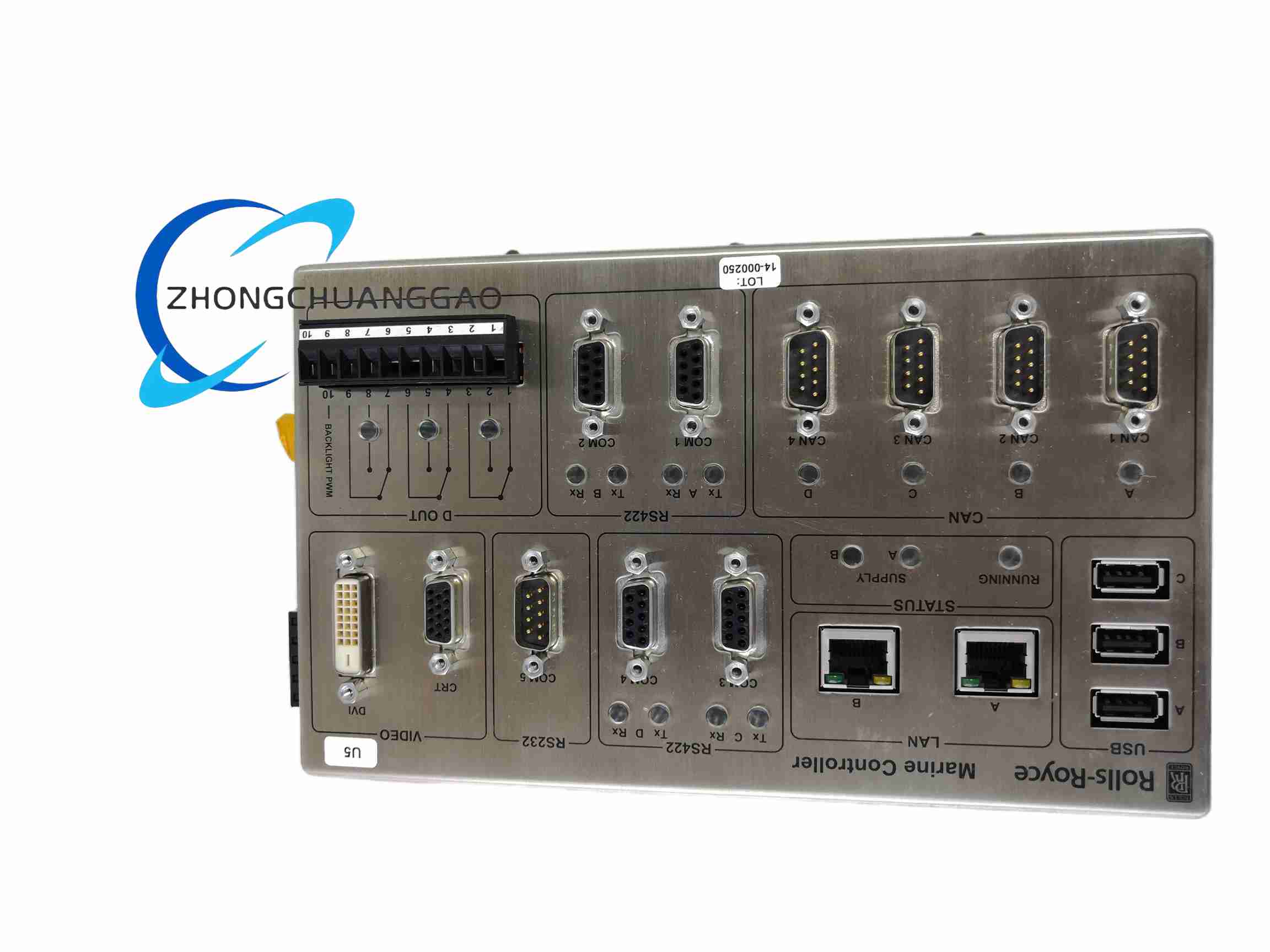

Product Introduction: The H1127-0101 (Part No. 000068308, Rev 2.2) is a marine-specific controller from Rolls-Royce designed for professional marine propulsion, manoeuvring, and power management systems. It performs core logic processing, sensor signal acquisition, actuator control, and safety protection in marine propulsion chains.
Description
Technical Specifications:
- Model: H1127-0101
- Part Number: 000068308
- Revision: 2.2
- Type: Marine Propulsion & Control Module
- Power Input: 18–32 VDC (typical 24 VDC)
- Power Consumption: ≤ 25 W
- Digital Inputs: 16 isolated channels
- Analog Inputs: 8 channels (0–10 V / 4–20 mA)
- Digital Outputs: 12 relay/transistor outputs
- Communication: CANbus, RS-485, NMEA 0183, dedicated marine interfaces
- Indicators: Multi-colour LED status indication zone
Environmental & Structural Features:
- Protection Rating: IP54 (marine industrial grade with enhanced EMC)
- Housing Material: Marine-grade aluminium alloy
- Operating Temperature: -25 °C to +70 °C
- Humidity Tolerance: 5%–98% (operable under condensing conditions)
- Mounting: DIN-Rail or panel fixing inside control cabinet / propulsion console
Core Features: Reinforced and optimised against sea state variations, vibration shocks, electromagnetic interference, and marine power fluctuations; serves as a common platform for diesel propulsion, electric propulsion, and hybrid propulsion systems; handles propeller angle control, shaft speed signal processing, steering gear coordination, and thrust dispatch logic.
Application Scenarios: Marine propulsion control, power management, hydraulic/electric actuator control, navigation coordination systems for ocean-going, offshore, and polar vessels.
Installation Requirements: Mount in control cabinet or propulsion console; ensure proper marine-grade wiring and shielding for communication buses.
Usage Notes: Rev 2.2 is a recognised stable version; when replacing, verify firmware and I/O configuration compatibility with existing propulsion control software.
