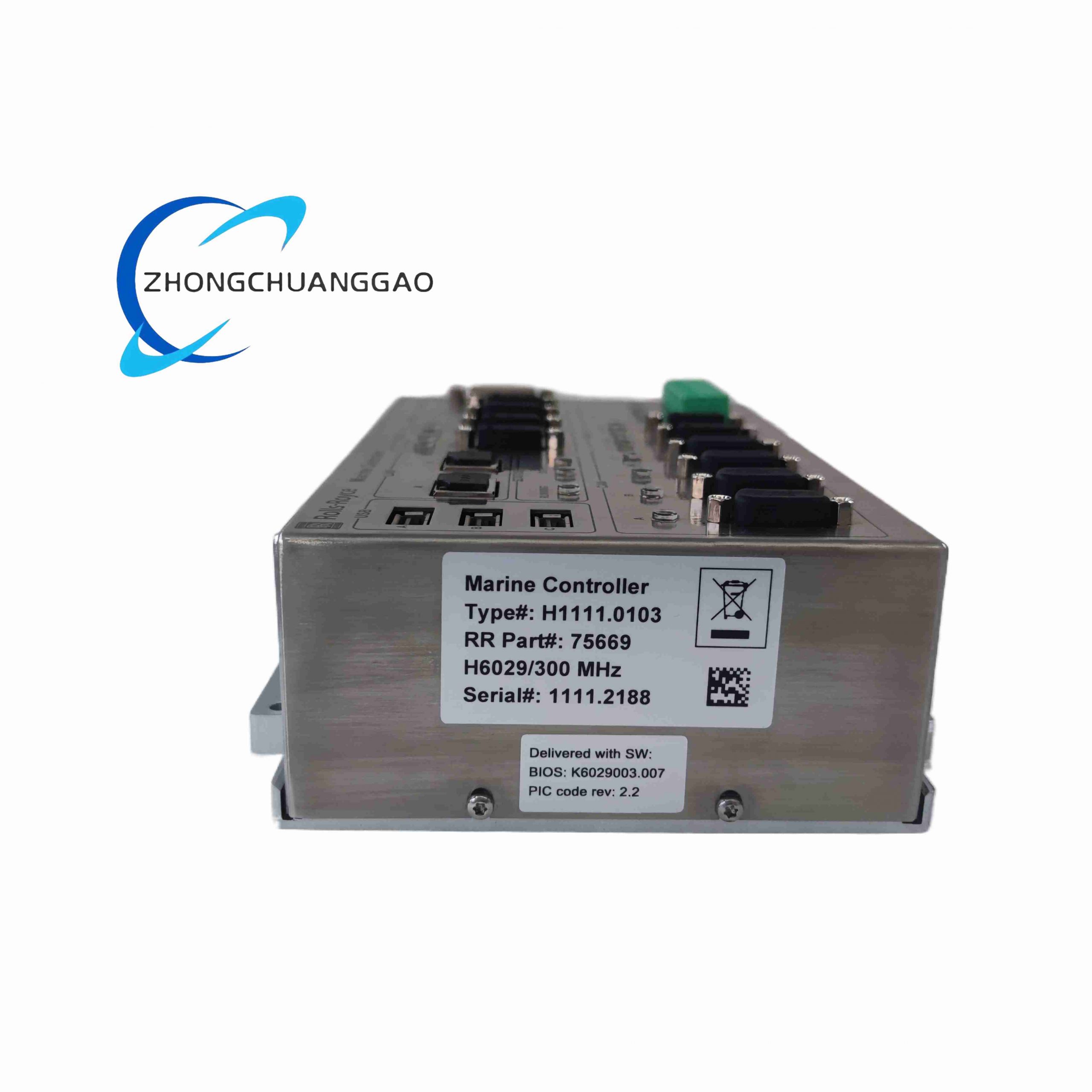

ROLLS-ROYCE H1111.0103

Complete Technical Specifications

1. Electrical Parameters

• Nominal Input Power: 24 VDC redundant power supply, tolerance range 18 VDC ~ 32 VDC
• Max Power Consumption: 28 W at rated 24 VDC
• Processor: 300 MHz single-core high-reliability PowerPC RISC architecture
• Memory Configuration: 512 MB NOR Flash for program firmware, 2 GB ECC DDR3 real-time operation RAM
• Control Cycle Latency: Fixed deterministic 250 microseconds minimum loop refresh
• Communication Interfaces: Dual 10/100 Mbps Ethernet, 4-channel CAN-Bus, RS-422, RS-485, USB 2.0, CF card storage slot
• I/O Expansion Support: Compatible full series RR marine analog/digital expansion I/O cards, supports RTD, TC (K/J/T type) temperature acquisition

2. Environmental Ratings

• Operating Temperature: -15 °C ~ +70 °C
• Storage Temperature: -40 °C ~ +85 °C
• Relative Humidity: 5% ~ 95% non-condensing
• Vibration Resistance: Meets IEC 60068-2-6 marine vibration standard, 10–2000 Hz spectrum
• EMC Compliance: IEC 61000-6-2 industrial heavy interference immunity

3. Physical Dimensions & Weight

• Overall Size: 220 mm (W) × 160 mm (H) × 80 mm (D)
• Net Weight: 2.03 kg

Core Function Features

• Redundant communication bus architecture to eliminate single-point communication failure
• Built-in full-system real-time fault self-diagnosis, automatic alarm log storage on CF memory card
• Dynamic positioning algorithm pre-embedded, supports thruster coordinated motion control
• Dual power input circuit with automatic switching without control system reset
• Remote firmware online upgrade via Ethernet without rack disassembly
• Interlock safety logic for marine main engine overspeed, low lubrication pressure protection
• Real-time historical data trending storage for vessel voyage performance analysis

Working Principle

Material Composition & Structural Characteristics

• Outer Housing: Machined marine-grade 5052 aluminum alloy, anti-corrosion passivation surface treatment, salt spray resistant for offshore environments
• Internal Circuit Board: FR4 high-Tg flame retardant PCB, gold-plated signal pins for long-term vibration contact stability
• Connector Components: Industrial metal circular aviation plugs + spring terminal blocks, dustproof rubber sealing gaskets

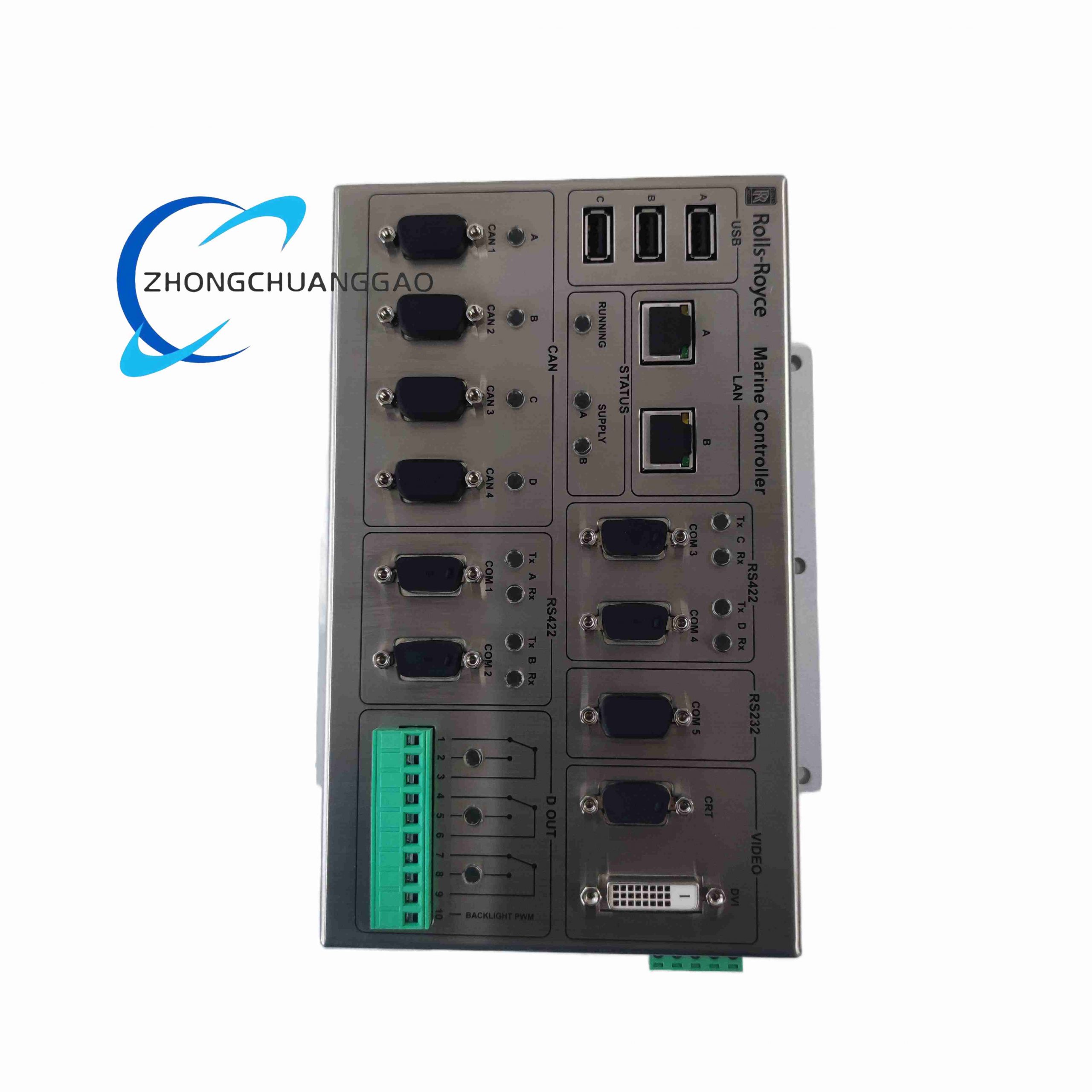

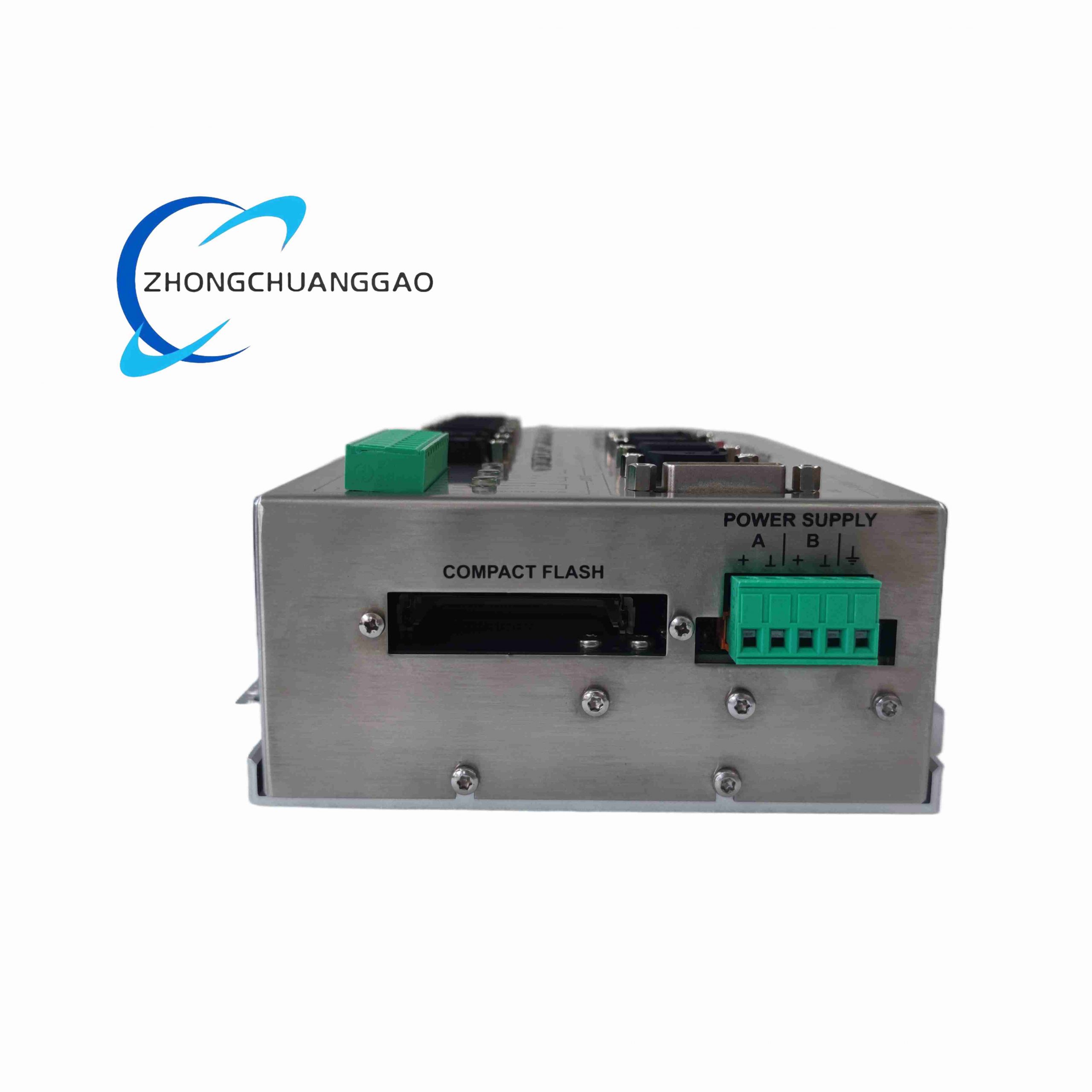

• Structural Layout: Front panel integrated all communication ports and status LED indicators; rear side VME standard rack locking guide rail; internal independent separated power supply, signal processing and communication shielding compartments to isolate electromagnetic crosstalk

Installation Requirements

1. Mounting Method: Standard 19-inch marine control cabinet VME rack horizontal slot installation, fixed with two front panel locking screws
2. Cabinet Ambient Demands: Must reserve forced air cooling ventilation channel, ambient temperature cannot exceed 70 °C during continuous operation
3. Wiring Standard: Power cable uses shielded 1.5 mm² twisted pair wire; signal communication lines separated from high-power AC cables by minimum 30 cm distance
4. Ground Specification: Separate analog signal ground and power protective ground, single-point cabinet grounding resistance less than 4 Ω
5. Spacing Rule: Leave at least one empty rack slot between this controller and high-frequency inverter modules to reduce EMI interference

Application Scenarios

• Ocean-going cargo vessels, passenger ferries, offshore supply ship dynamic positioning main control
• Offshore oil & gas drilling platform power and propulsion integrated automation system
• Marine gas turbine generator unit centralized monitoring and control cabinet core unit
• Naval vessel auxiliary machinery unified control system
• Floating production storage and offloading (FPSO) process safety control cabinet

Operation & Usage Precautions

1. Strictly avoid power supply voltage below 18 VDC or over 32 VDC; voltage fluctuation exceeding range will trigger automatic controller shutdown protection
2. Do not plug/unplug CF memory card while the module is powered on, which will damage firmware storage and cause system crash
3. Prevent seawater mist, oil liquid or chemical solvent from splashing onto front panel communication connectors
4. Annual maintenance required: Tighten all terminal block wiring screws, clean dust inside ventilation slots with dry compressed air
5. Firmware version replacement must use Rolls-Royce official matched program; third-party modified firmware will void marine classification certification
6. Do not operate the module outside rated temperature range for more than 2 consecutive hours, permanent circuit board thermal degradation will occur
