Product Short Description

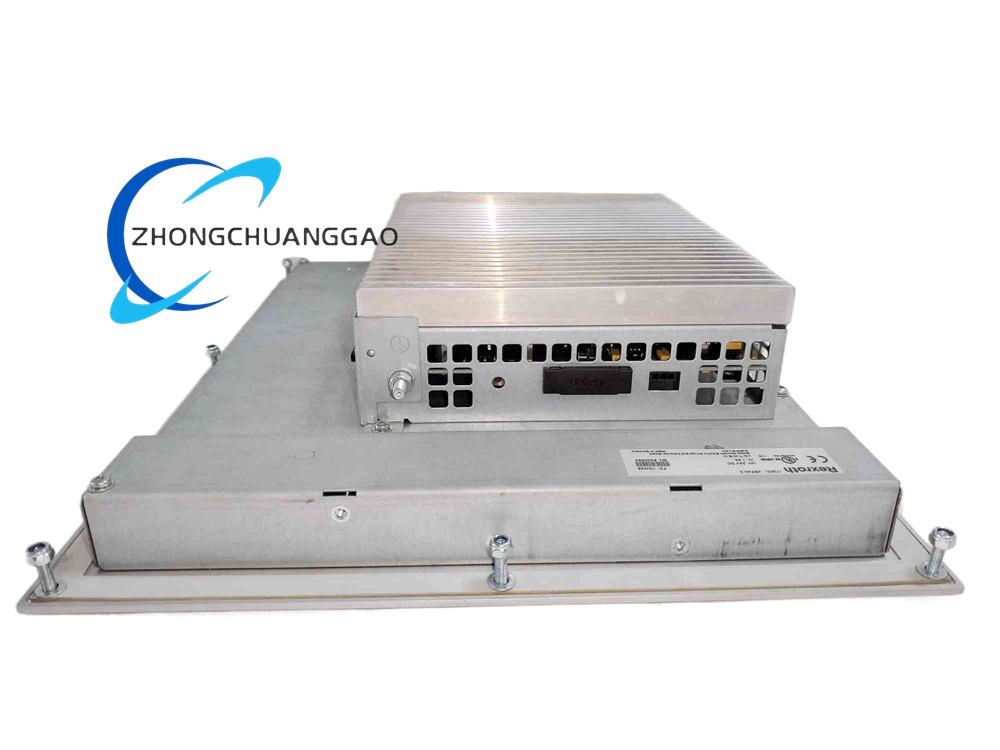

Product Name: IndraControl VEP40.5 Embedded Industrial Terminal
Product Brief
The VEP40.5 is an embedded industrial PC terminal belonging to Bosch Rexroth IndraControl VEP xx.5 series, designed for machine visualization, motion control and industrial automation data processing. It integrates computing unit, display interface and industrial communication ports for direct deployment on production machinery.
Description
- Processor: Intel Atom N455, 1.6 GHz
- Standard Display Size: 12-inch TFT industrial screen
- Memory: Up to 2GB DDR3 RAM
- Storage: Compact Flash / SSD storage support
- Power Supply: 24 VDC industrial power input
- Operating Temperature: 0 °C ~ +50 °C
- Storage Temperature: -20 °C ~ +60 °C
- Relative Humidity: 5% ~ 85 %, non-condensing
- Climatic Class: 1K2 per EN 60721-3-1
- Vibration Resistance: 10 Hz – 150 Hz, 0.075 mm excursion / 1 g acceleration
- Shock Resistance: 15 g, 11 ms half-sine wave
- Protection Class: IP20 rear side, front panel optional IP54
- Communication Interfaces: Ethernet, RS232, USB, Profinet / Profibus optional
- Supports IndraWorks engineering software environment
- Real-time data visualization for motion control systems
- Compatible with Rexroth IndraDrive servo drives
- Multi-protocol industrial communication capability
- Fanless passive cooling design for low noise and long service life
- Watchdog hardware for automatic fault recovery
- Supports Windows Embedded operating system
Machine tool automation, packaging machinery, printing equipment, plastic machinery, material handling equipment, automated assembly lines, hydraulic & servo motion control systems.
- Housing: Reinforced industrial ABS metal frame
- Front panel: Aluminum alloy
- Internal circuit board: FR4 high-temperature PCB
- Connectors: Nickel-plated copper industrial grade terminals
Compact panel-mount structure; integrated display, mainboard and I/O interface; internal shielding structure to suppress EMI interference; standard cutout dimension for cabinet installation.
The embedded industrial computing unit collects real-time operating data from servo controllers, PLCs and field sensors via industrial bus. It executes visualization programs, transmits operator command signals to control units, and implements closed-loop human-machine interaction for automated equipment.
- Panel mounting in industrial control cabinet
- Maintain sufficient ventilation space around housing; avoid sealed fully enclosed installation
- Cable shielding must be grounded reliably
- Ambient environment free of corrosive gas, oil mist and heavy dust
- Mounting position avoids direct sunlight radiation
- Power supply voltage fluctuation cannot exceed ±10% of rated 24 VDC
- Do not hot-swap storage medium during system operation
- Regularly clean ventilation area to prevent dust accumulation
- Use only authorized industrial-grade embedded operating systems
- Static protection must be applied before opening enclosure cover
