Description

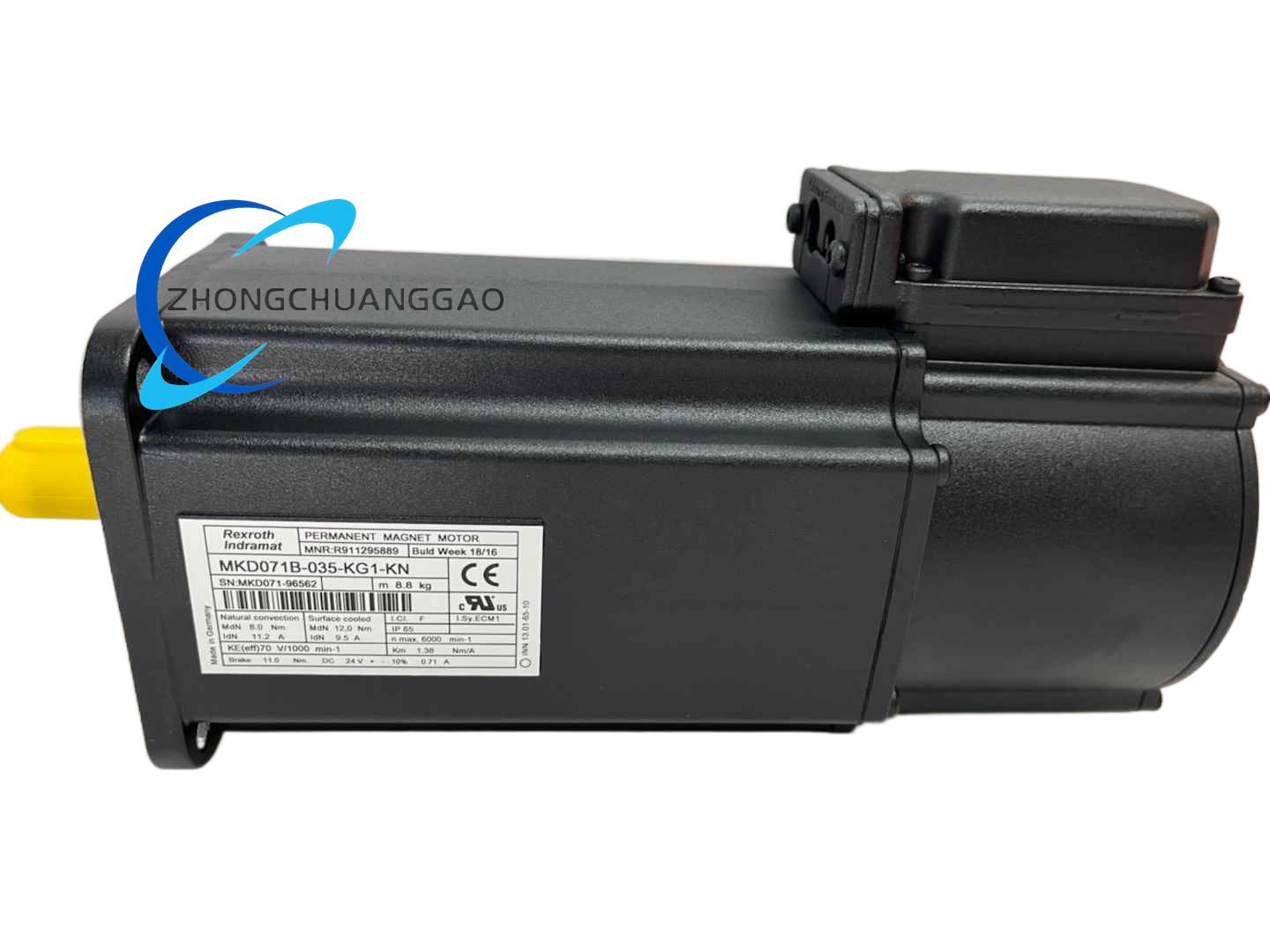

Technical Specifications: Frame size 071, B-length stator, winding code 035, resolver multi-turn feedback, 115mm flange size, 95mm centering diameter, continuous standstill torque 8.0Nm, peak current 28.3A, theoretical maximum torque 32Nm, IP65 protection, natural convection cooling, no holding brake.
Functional Features: Medium inertia design, stable torque output, reliable resolver feedback, robust housing, good environmental adaptability, high overload capacity.
Application Scenarios: Large packaging machinery, woodworking CNC equipment, metal forming equipment, conveyor positioning systems, material handling machinery.
Performance Parameters: Rated speed 2500rpm, maximum speed 4500rpm, rotor inertia 8.7×10⁻⁴ kgm², lifetime lubricated bearings, long service life.
Material Composition: Cast aluminum alloy housing with heat dissipation ribs, rare earth permanent magnet, sealed bearing assembly, high-temperature resistant winding.

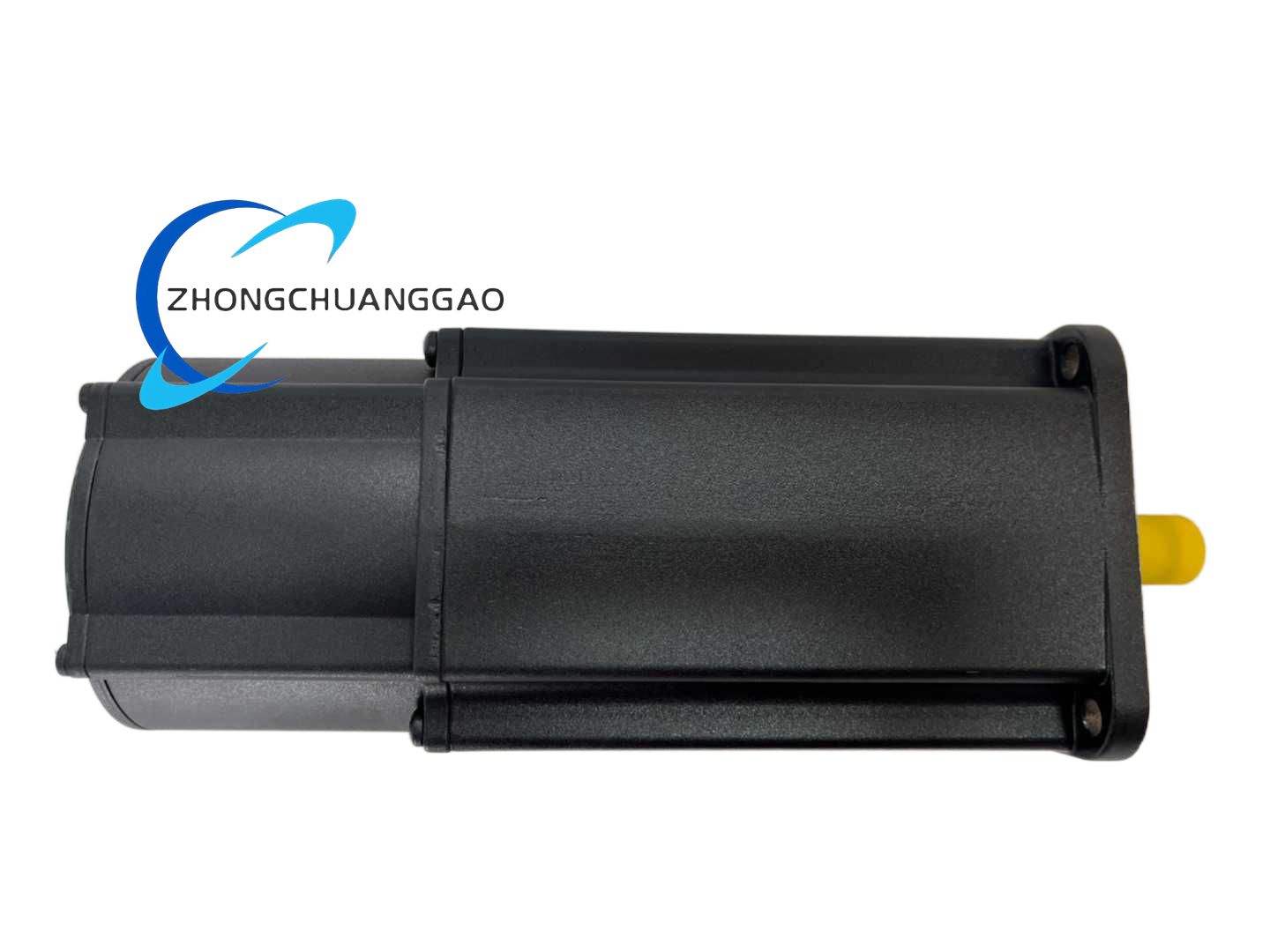

Structural Features: Flange mounting structure, plain shaft with shaft seal, rear mounted resolver unit, natural heat dissipation ribs on housing.
Working Principle: Permanent magnet synchronous motor, resolver collects rotor position and speed signals, matched with Rexroth Indramat servo drive to realize closed-loop motion control.
Installation Requirements: Flange fixed installation, reduce shaft misalignment to minimum, ensure sufficient heat dissipation space around motor, separate power cable and signal cable.
Notes for Use: Do not exceed allowable radial force of output shaft; avoid continuous operation under high temperature and high humidity; inspect bearing lubrication condition regularly; protect resolver connector from damage.
