Product Short Description
Product Name
Bosch Rexroth HCS01.1E compact IndraDrive controller, 18 A peak, MultiEthernet and multi-encoder configuration, code HCS011E-W0018-A-03-B-ET-EC-NN-L3-NN-FW.
Product Introduction
This compact servo converter controls one motor axis in machine automation. It rectifies three-phase mains, supplies the motor with adjustable voltage and frequency, closes current/velocity/position loops and communicates with higher-level controls through MultiEthernet and encoder interfaces.
Description
Technical Specifications
Mains connection three-phase 200 to 500 V AC ±10%. Device peak current 18 A; published compact versions list continuous current around 7 A and continuous power around 1.7 kW without choke, higher with configured chassis/options. Output voltage three-phase 0 to 500 V AC. Control voltage 24 V DC ±20%. Communication ET denotes MultiEthernet. Encoder interface EC denotes multi-encoder support. Control section B denotes BASIC. Safety L3 denotes STO/Safe Torque Off configuration. Protection class IP20. Cooling internal air/blower according to HCS01 compact build. Switching/output frequency scalable, with high carrier settings reaching up to 1600 Hz output range.
Function Features
Servo current control, encoder feedback evaluation, motor parameter commissioning, STO safety, MultiEthernet master/configuration support, diagnostic LEDs/commissioning panel depending on shipped configuration, firmware ordered/loaded per drive project.
Application Scenarios
Packaging machines, textile machinery, robotics, machining centers, printing presses, handling systems and general one-axis servo automation requiring Ethernet-based control.
Performance Parameters
Peak 18 A for dynamic acceleration, continuous current according to ambient/cooling derating, encoder feedback for resolver/Hiperface/EnDat/other supported types per encoder option, fast current loop and safe-stop response through STO.
Material Composition
Aluminum/steel housing, printed circuit boards, IGBT power modules, DC-link capacitors, blower/fan assembly, encoder and Ethernet connectors, insulated molding and EMC shielding plates.
Structural Characteristics

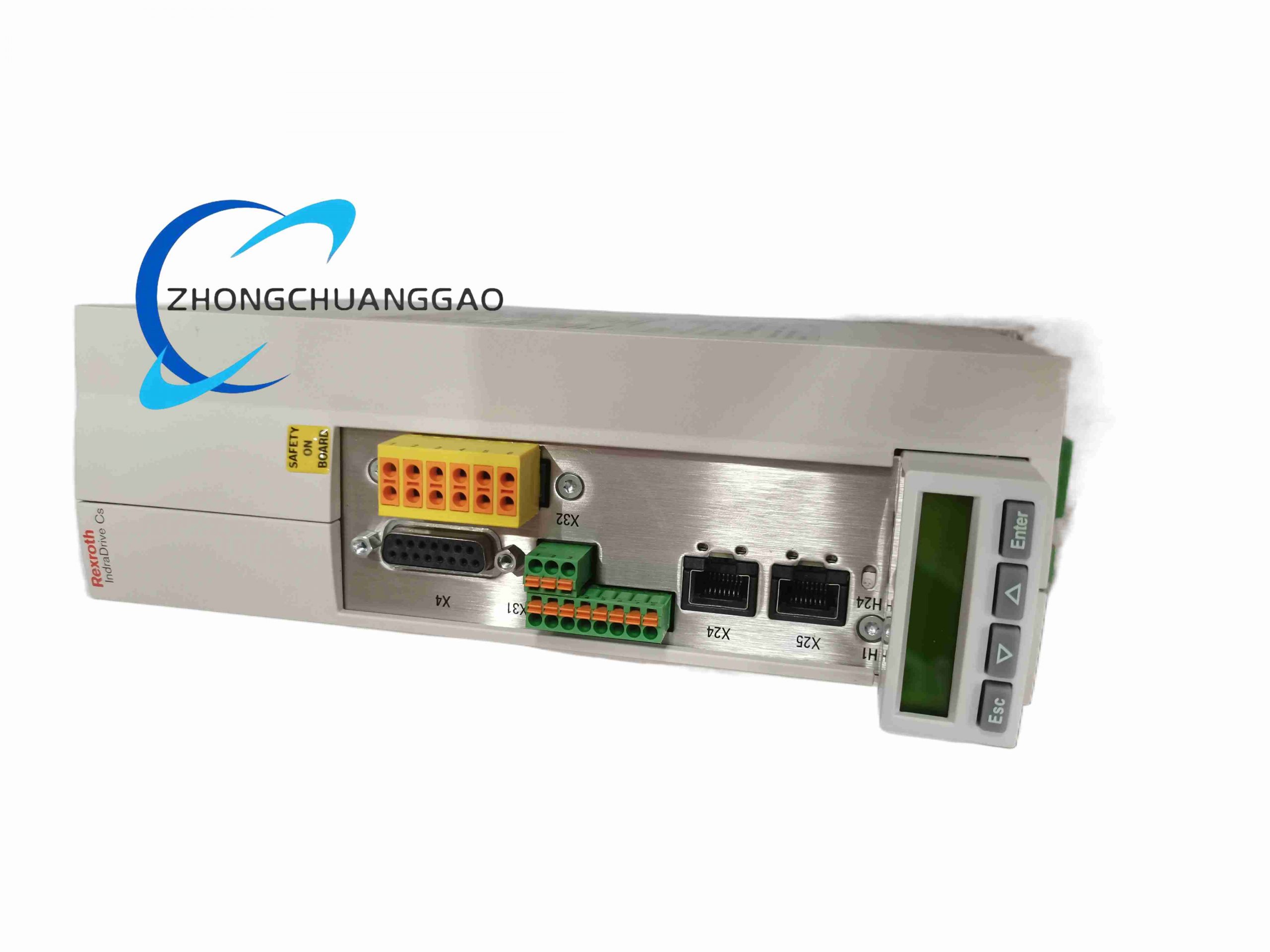

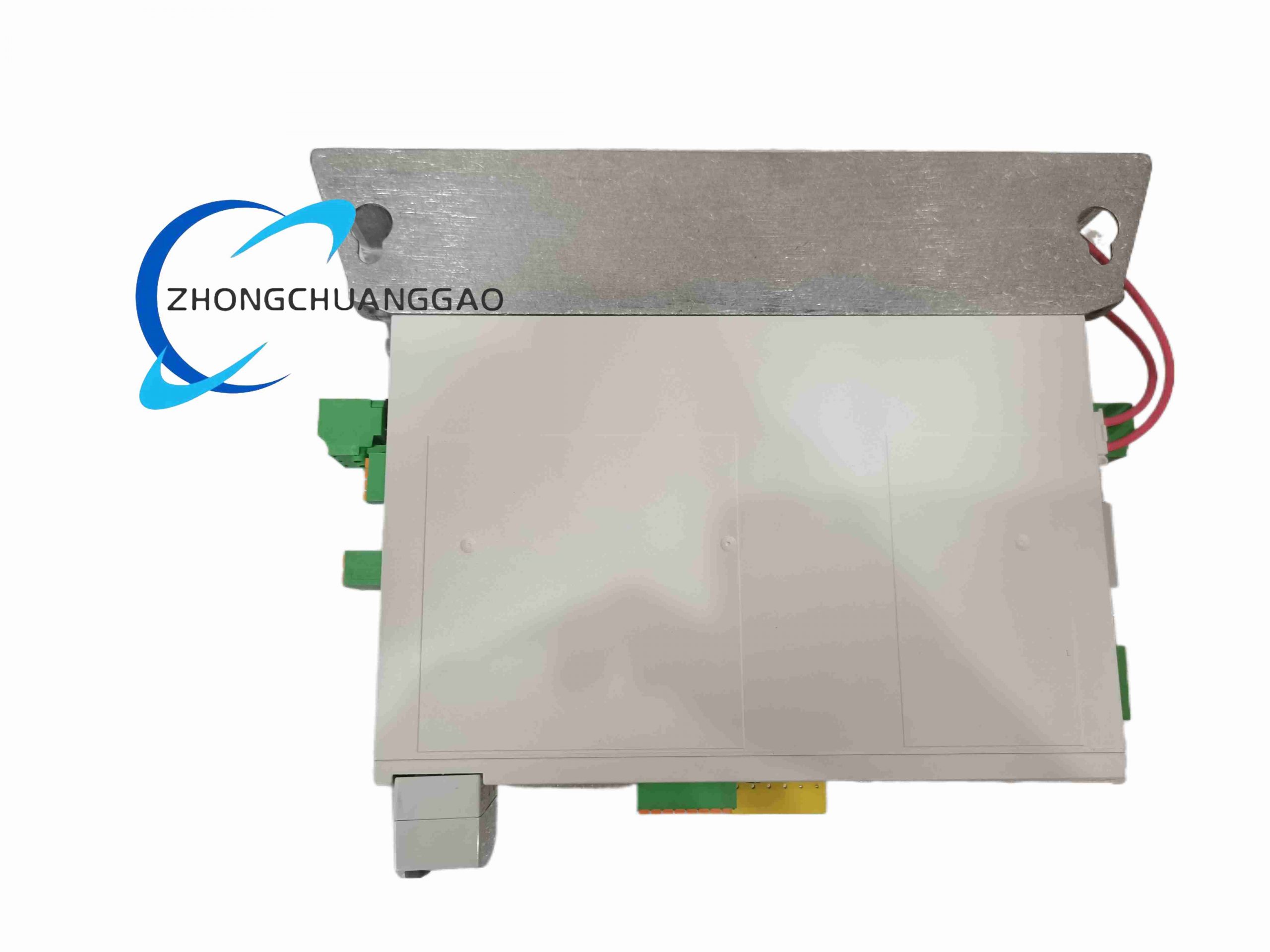

Book-size compact converter with mains terminal, motor terminal, 24 V control terminal, encoder plugs, Ethernet interface and safety terminals. Internal forced-air cooling, DIN/cabinet mounting profile and removable front commissioning panel depending on configuration.
Working Principle
The converter receives three-phase AC, creates a DC intermediate circuit and generates PWM motor voltage through IGBTs. Encoder feedback and Ethernet setpoints are processed by the BASIC control section to regulate torque, speed and position. STO removes torque-on command when safety conditions are violated.
Installation Requirements
Mount inside IP20-rated control cabinet with vertical orientation and airflow clearance. Connect protective earth first. Use correctly sized mains/ motor cables with shielding. Provide 24 V DC control supply separate from mains where required. Configure MultiEthernet, encoder type and STO before operation.
Usage Precautions
Do not exceed peak/continuous current derating for ambient temperature and cooling. Match firmware, motor data and encoder type before startup. STO wiring must comply with machinery safety standards. Only qualified drive technicians may service power electronics.
