Product Short Description
Product Name
Industrial Power Supply / DC Stabilized Power Module
Product Brief Introduction

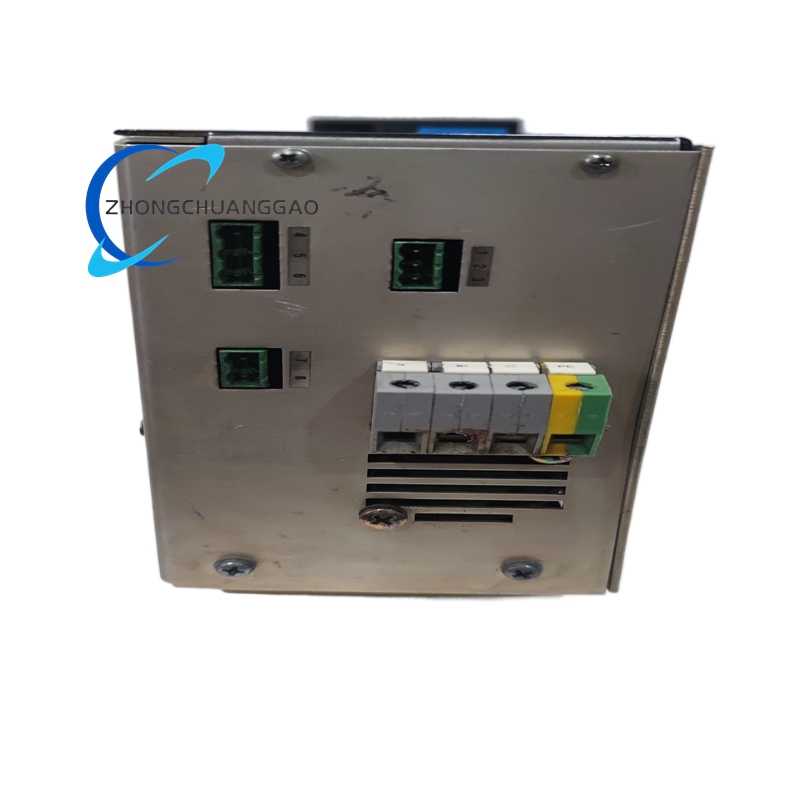

REOTRON 567LH series industrial dedicated DC power supply, DP24 for 24V DC output specification, used to provide stable DC power for industrial control equipment, sensors and actuators.
Description
Technical Specifications
- Series: 567LH
- Output Specification: DP24 = 24 V DC Rated Output Voltage
- Input Voltage: Wide-range industrial AC input
- Output Power: Standard power of 567LH series
- Ripple Coefficient: Low output ripple
Functional Features
AC to DC conversion; constant voltage stable output; overvoltage, overcurrent, short circuit protection; wide input voltage adaptation.
Performance Parameters
- Voltage Stabilization Accuracy: High precision DC voltage stabilization
- Efficiency: High conversion efficiency
- Temperature Rise: Low operating temperature rise under full load
Material Composition
Outer casing: Metal iron shell (anti-electromagnetic interference); Internal power device: Switch power tube; Rectifier unit: Rectifier bridge; Capacitor: Industrial electrolytic capacitor.
Structural Characteristics
Closed metal shield structure; built-in heat dissipation channel; terminal type wiring; integrated AC-DC conversion unit.
Working Principle
Adopt switching power supply working principle: convert input AC power into DC power through rectification and filtering, then realize stable 24V DC output via high-frequency switching circuit and voltage feedback loop.
Advantage Highlights
Wide input voltage range; excellent voltage stabilization performance; built-in multiple protection circuits; metal shell for strong anti-interference; suitable for harsh industrial power supply occasions.
Applicable Industries
Industrial control system, PLC power supply, sensor power supply, automation instrument, robotic equipment.
Model Series
REOTRON 567LH DC Power Supply Series
Installation Requirements
- Install in well-ventilated electrical cabinet;
- Wiring strictly follow positive and negative polarity definition of DC output;
- Fasten wiring terminals to prevent virtual connection;
- Metal shell reliable grounding.
Usage Notes
- Do not reverse DC output positive and negative poles;
- Prohibit long-term overload operation;
- Regularly clean surface dust to ensure heat dissipation;
- Do not use in high humidity and corrosive gas environment.
