Product Short Description

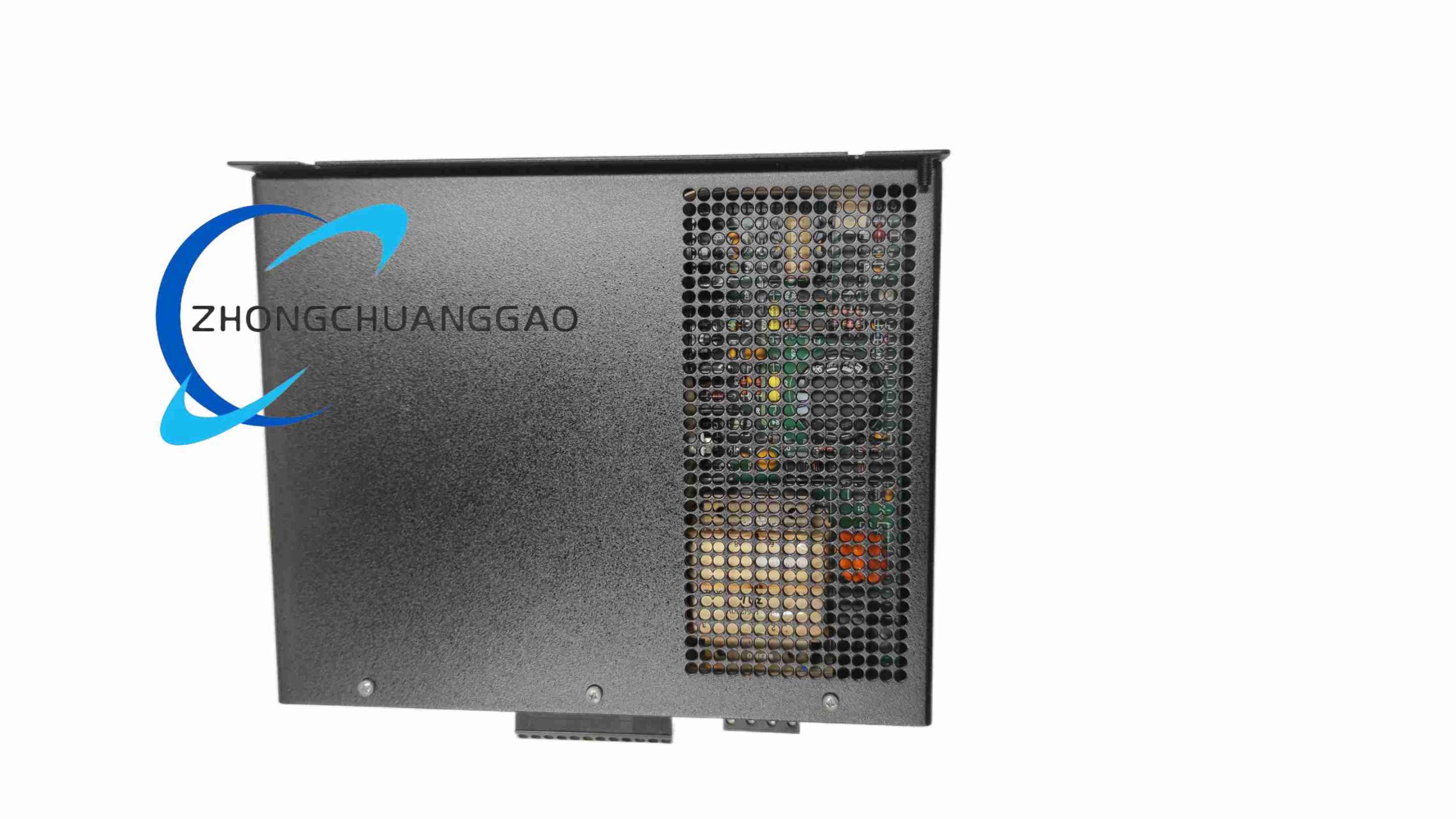

Product Name: 0–10 VDC Analog Rail Module
Product Introduction: The 61C350 is a 2-channel input / 2-channel output analog I/O module produced for the AutoMax DCS. It converts 0–10 VDC analog signals for use in drive control and process control systems. Depending on production date, it may also carry ABB or Baldor Reliance branding.
Description
Technical Specifications:
-
Manufacturer: Reliance Electric
-
Instruction Manual: J-3672
-
Product Type: Analog Rail Module
-
Signal Range: 0–10 VDC
-
Analog Resolution: 12-bit (0–4095 proportional value)
-
Channels: 2 input channels, 2 output channels
-
Faceplate Connections: 12-point male INPUT connection; connections grouped in 3s, numerically labeled 1–12
-
Indicators: PWR OK LED, COM OK LED
-
Input Power: 24 VDC (DC+ / DC-) or 120 VAC (L1 / L2)
-
Fuse Recommendation: 250-type fuse; 75 mA @ 24 VDC, 25 mA @ 120 VAC
-
Mounting: Large bracket on rear for 4-screw mounting; factory-drilled bottom holes for airflow
Functional Features: Each analog input channel converts 0–10 VDC signals to a proportional 12-bit digital value (0–4095). The terminal strip design prevents field wiring issues. Paired with potentiometers, valve actuators, pressure or flow transducers, and meters.
Application Scenarios: Used in both drive control and process control systems within AutoMax DCS environments.
Installation & Notes: The 61C350 manual (J-3672) provides detailed mechanical/electrical description, installation procedures, programming, and troubleshooting guidance. Use the specified fuse rating based on the selected input power (75 mA for 24 VDC, 25 mA for 120 VAC).
