Product Short Description

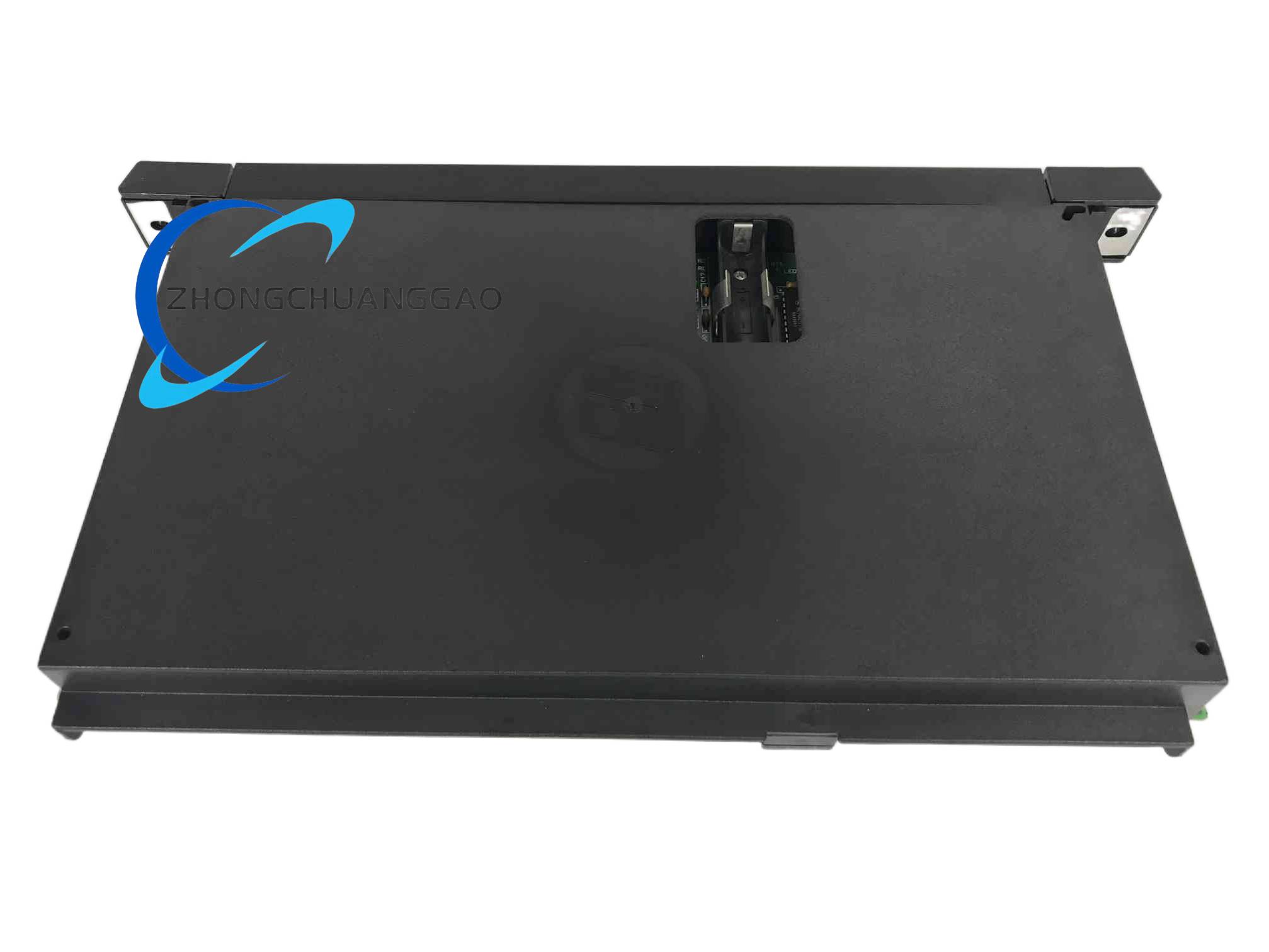

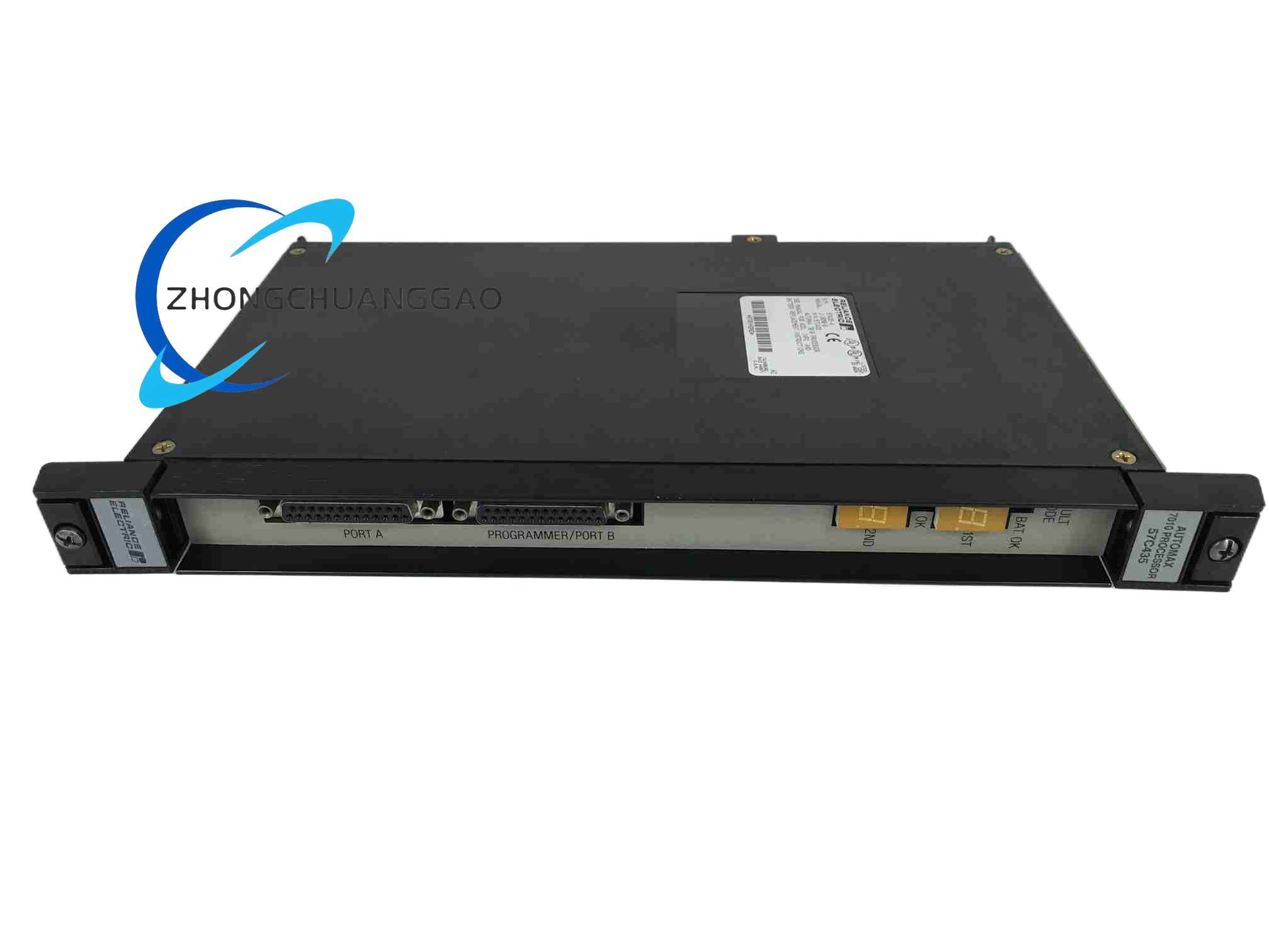

Product Name: AutoMax 7010 Processor Module
Product Introduction: The 57C435 is the high-performance 7010-class processor module in the Reliance Electric AutoMax controller family. It is based on a 32-bit architecture and was produced by Reliance Electric, with later units potentially manufactured by ABB or Baldor Reliance.
Description
Technical Specifications:
-
Manufacturer: Reliance Electric
-
Series: AutoMax 7010
-
Microprocessor: Motorola 68020, 32-bit
-
CPU Speed: 25 MHz
-
Memory: 512K Parity RAM
-
Programming Languages: BASIC, Control Block, Ladder Logic
-
Communication Ports: 2 × RS-232 serial ports (DB-25 connector)
-
Maximum Module Power Dissipation: 15 Watts (average)
-
Dimensions: Height 11.75 in × Width 1.25 in × Depth 7.375 in
-
Instruction Manual: J-3650
-
Operating Temperature: 0 °C to 60 °C
-
Storage Temperature: -40 °C to 85 °C
-
Memory Hold-up: Minimum 186 days (with battery); Typical 8.2 years (with battery)
Functional Features: Two 7-segment LED displays labeled “1st”, “2nd” and “FAULT CODE”; Green “OK” and “BAT. OK” indicator LEDs. Executes control programs 3 to 6 times faster than the 6011 processor (57C431/57C430A). Up to 5 processor modules of mixed types can be installed in a single AutoMax storage rack.
Application Scenarios: Suitable for complex, high-speed industrial control applications such as robotic arm control and high-speed packaging lines where fast scan times and large memory are required.
Installation & Notes: Installs into AutoMax rack backplane slots. Uses ReSource AutoMax Programming Executive software for programming. The lithium battery must be installed to preserve RAM contents during power-down events.
