Product Short Description
Product Description:

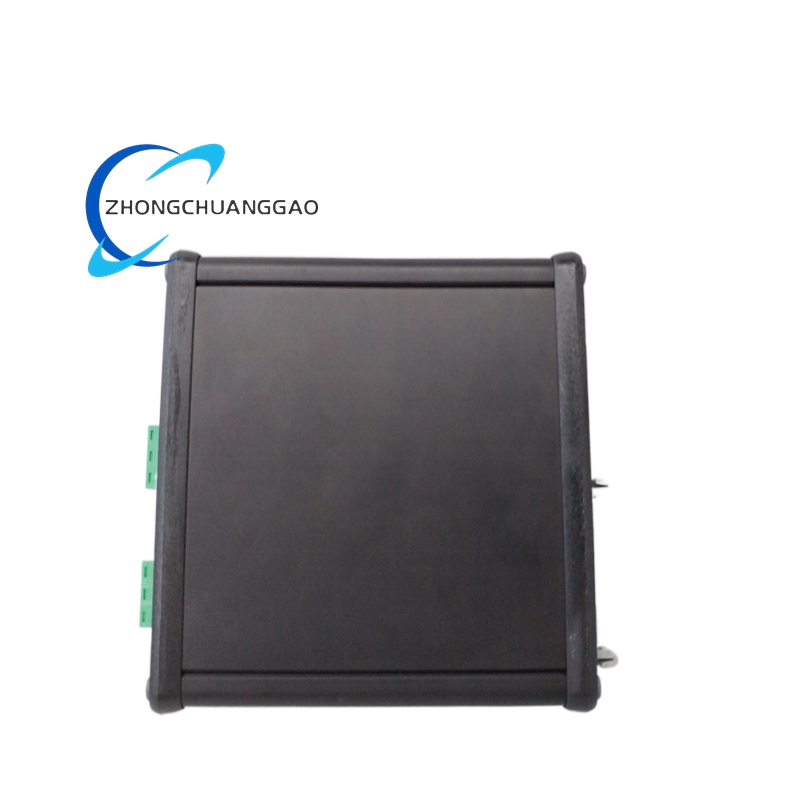

The ProSoft AN-X2-AB-DHRIO is an Anybus X-gateway module that provides protocol translation between Allen-Bradley (Rockwell Automation) networks and the Data Highway Plus (DH+) RIO network. It enables seamless data exchange between PLCs, HMIs, and devices operating on these two incompatible industrial communication protocols. The “X2” designation indicates the second-generation Anybus X-gateway platform with enhanced performance and diagnostic capabilities.
Description
Technical Specifications:
- Gateway Type: Protocol converter (translator)
- Side A (Port 1): Allen-Bradley EtherNet/IP (1756-ENBT, ControlLogix, CompactLogix compatible)
- Side B (Port 2): DH+ RIO (Rockwell DH-485 network)
- EtherNet/IP Speed: 10/100 Mbps, auto-negotiation
- DH+ Speed: 57.6 kbps, 115.2 kbps (auto-detect)
- Max I/O Data: 512 bytes input + 512 bytes output per direction
- Latency: < 5 ms (typical, EtherNet/IP to DH+)
- Power Supply: 24 VDC (18-32 VDC range)
- Current Consumption: 350 mA (typical)
- Operating Temperature: 0°C to +60°C
- Enclosure Rating: IP20 (DIN rail mount)
- Dimensions: 25 mm x 90 mm x 115 mm (W x H x D)
- Weight: Approximately 150 g
Construction & Materials:
- Housing: ABS plastic, DIN rail mountable (35mm rail)
- Connectors: RJ45 (EtherNet/IP), 9-pin D-sub (DH+ RIO)
- LED Indicators: Power (green), Link A (green), Link B (green), Error (red)
- PCB: FR-4, conformal coated for industrial environment
Key Features:
- Bi-directional transparent data mapping (no programming required)
- Web-based configuration via embedded HTTP server
- Firmware upgradable via FTP or USB
- Supports DH+ RIO scan and explicit messaging
- Email alarm notification on communication failure
- Compatible with Rockwell Studio 5000 and RSLogix 5000
Applicable Industries:
- Oil and gas SCADA systems
- Water/wastewater treatment plants
- Manufacturing automation (auto, food & beverage)
- Power generation and distribution
- Mining and minerals processing
Installation Requirements:
- Mount on standard 35mm DIN rail
- EtherNet/IP side: connect to Rockwell EtherNet/IP network (1756-ENBT or equivalent)
- DH+ side: connect to DH+ RIO network via 9-pin D-sub, termination resistors at both ends (120 Ω)
- Power: 24 VDC, ripple < 5%
- Ambient: 0°C to +60°C, humidity < 95% non-condensing
Usage Notes:
- DH+ network requires 120 Ω termination resistor at each end of the bus
- Do not mix DH+ and DH-485 devices on the same RIO segment
- EtherNet/IP IP address must be unique on the network
- Configuration backup recommended every 6 months (export .cfg file via web interface)
- Do not power cycle during active data transfer (may cause I/O mismatch)
