Product Short Description
Product Introduction:

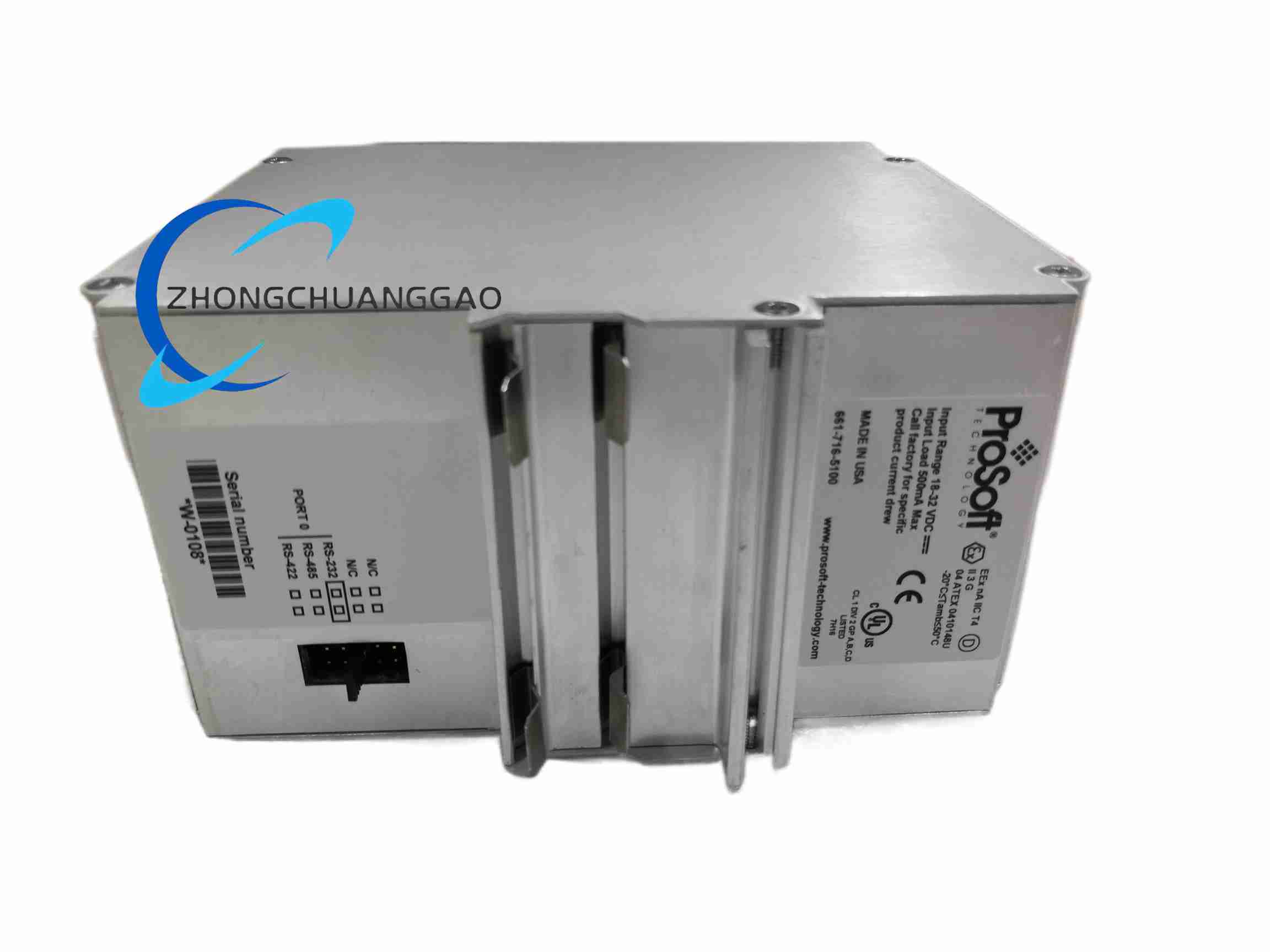

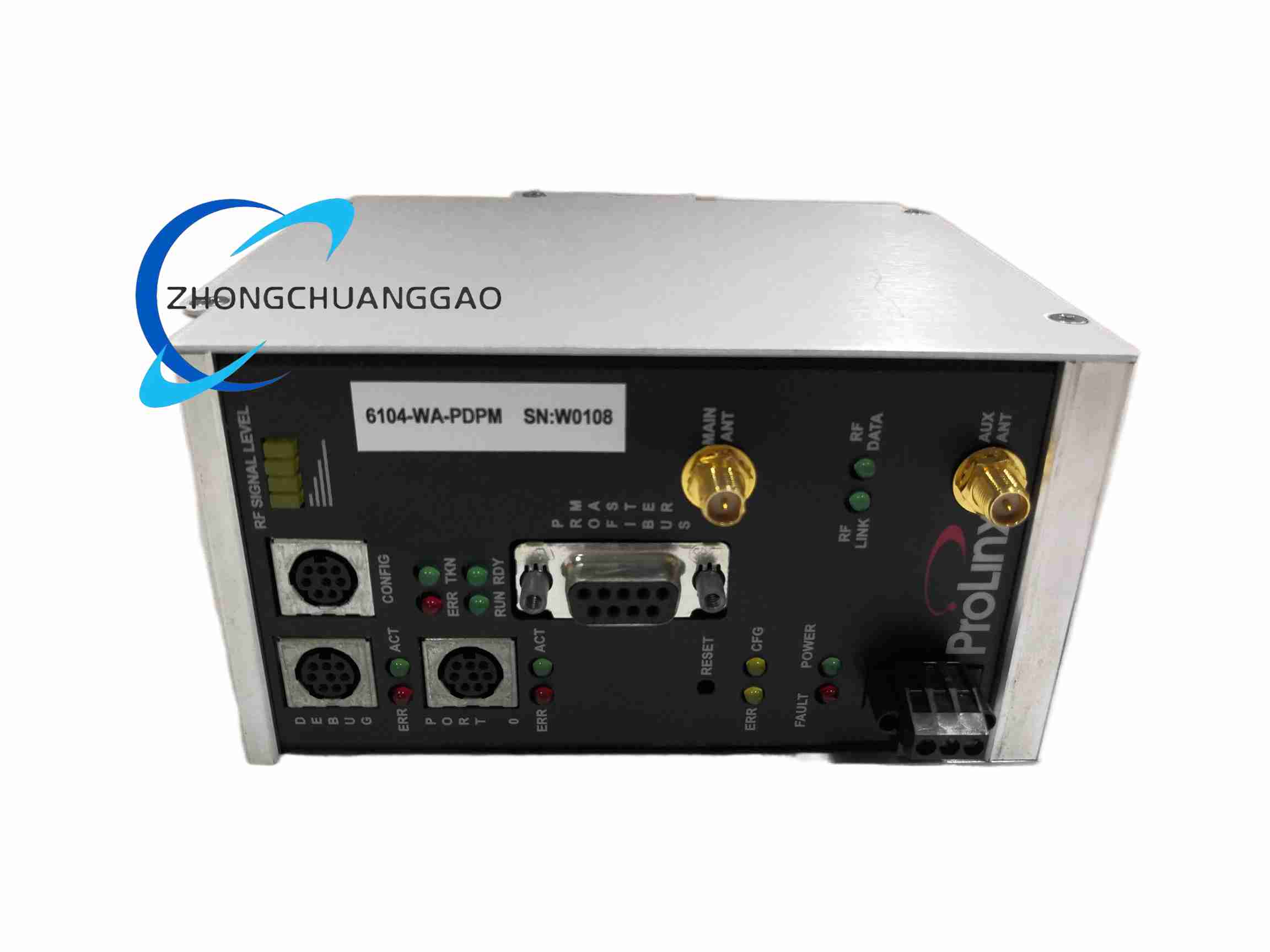

The PROSOFT 6104-WA-PDPM is a powerful wireless PROFIBUS DP Master gateway belonging to ProSoft’s ProLinx 6000 series. It acts as a PROFIBUS DP network master, capable of exchanging data with up to 125 slave devices and sharing that data wirelessly with a counterpart slave gateway (such as the 6105-WA-PDPS). It is purpose-built to solve communication challenges posed by difficult wiring, mobile equipment, or remote monitoring in industrial environments.
Description
Technical Specifications:
-
Manufacturer: ProSoft Technology
-
Category: Wireless Gateway
-
Protocol: PROFIBUS DP Master
-
Wireless Protocol: ProSoft proprietary wireless protocol
-
Baud Rate: 9.6 kbit/s to 12 Mbit/s
-
I/O Data Volume: 244 bytes input, 244 bytes output
-
Remote Wireless Master Cyclic Data: Up to 512 bytes input / 512 bytes output
-
Power Supply: 24 V DC (18 to 36 V DC)
-
Power Consumption: 500 mA max @ 24 V DC
-
Operating Temperature: -20°C to +50°C
-
Mounting: DIN rail
-
Certifications: CE, UL, CUL, FM Class 1 Division 2
-
Chipset: Siemens SPC3
Functional Features:
-
Supports Freeze Mode and Sync Mode
-
Wide compatibility with various PROFIBUS slave devices via Siemens SPC3 chipset
-
One-to-one and one-to-many wireless network topologies
-
Configuration via ProLinx SyCon Configuration software
Application Scenarios:
-
Industrial sites where wiring is difficult or impossible
-
Mobile equipment and rotating platforms
-
Remote monitoring and distributed control
-
Rapid deployment or temporary monitoring applications
Installation Requirements & Precautions:
-
DIN rail mounted in an industrial enclosure
-
Ensure 18-36 V DC power supply within specifications
-
Configure the PROFIBUS network using ProLinx SyCon Configuration software
-
Maintain operating temperature within -20°C to +50°C
