Product Short Description

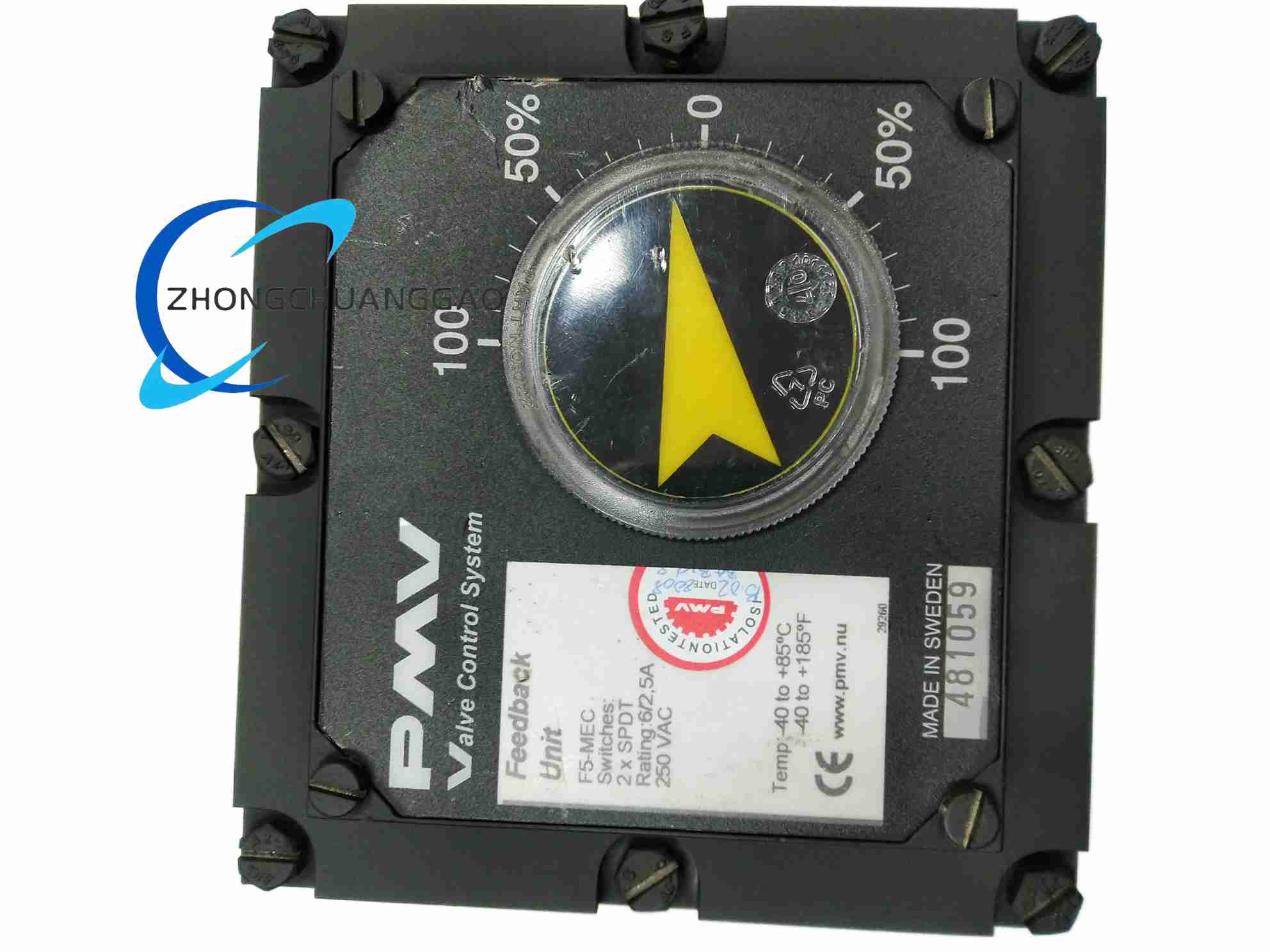

Product Identity: The F5-MEC-420 is a valve positioner feedback unit manufactured by PMV (a Flowserve brand) under the F5 series. It is designed for direct mounting on PMV P5/EP5 analog pneumatic positioners, providing both discrete limit-switch feedback and continuous position analog feedback for pneumatic control valves.
Technical Specifications
- Product Type: Valve position feedback unit (mounts on P5/EP5 analog positioners)
Description
- Switch Configuration: 2 × SPDT mechanical micro switches for limit position detection
- Analog Feedback: 4–20 mA position transmitter, 2-wire loop-powered (maximum transmitter supply 28 V DC)
- Switch Rating: 6 A / 2.5 A at 250 V AC
- Housing Material: die-cast aluminum with epoxy coating
- Protection Rating: IP66 / NEMA 4
- Operating Temperature: −40 °C to +85 °C
- Weight: approximately 0.7 kg (standard) / 2.1 kg (flameproof/explosion-proof variant)
- Conduit Entry: 2 × M20×1.5 or 2 × 1/2″ NPT
- Terminals: screw terminals accepting up to 2.5 mm² (AWG 14) wire
- Fasteners: stainless steel A2/A4
- Sealing: nitrile rubber (NBR) O-rings
- Origin: Sweden
Functional Features
- Dual feedback in one unit: 2 × SPDT switches for valve-open/valve-closed limit alarms, plus 4–20 mA continuous position signal for DCS/PLC analog input
- Modular clamp-on design mounts directly onto P5/EP5 positioners without brackets; also adaptable to other actuator brands via optional kits
- Infinite-resolution cam: non-splined cam and spindle allow arbitrary angle setting for precise field calibration
- LED-assisted calibration: built-in LED indicators assist during transmitter setup
- O-ring sealed modular housing requires no special mounting hardware for IP66 integrity
- Multiple hazardous-area variants available: standard (non-Ex), intrinsically safe (IS, ATEX II 1G Ex ia IIC T4), flameproof (EX), and stainless steel housing options
Application Scenarios
- Pneumatic control valve position monitoring in power generation, chemical processing, and oil & gas industries
- Emergency shutdown (ESD) valve position verification
- Distributed control system (DCS) and PLC integration for continuous valve stroke feedback and limit-switch alarms
Installation and Usage Notes
- Verify the complete model suffix before ordering or replacing; variants differ in Ex certification, conduit thread, housing material, and sealing temperature range. Example full code: F5ISNU-MEC420-00-PV9DA-Z where IS = intrinsic safety, N = M20×1.5 entries, U = epoxy aluminum housing, MEC = 2×SPDT+4–20mA, 420 = 4–20mA output, 00 = direct EP5 mount, PV9 = panel layout, D = direct mount, A = arrow indicator, Z = NBR seal −40…+85 °C
- For non-Ex (F5NU-MEC420) vs. Ex (F5ISGU-MEC420 with stainless housing) variants, the mounting interface is identical but the certification and price differ substantially — substitute only like-for-like in certified installations
- Properly earth the shield of the 4–20 mA signal cable at one end to prevent ground-loop induced drift
