Description
- Product Category: Safety Relay Module
- Safety Rating: Compliant with EN ISO 13849, IEC 61508 safety standards
- Contact Configuration: Multi-channel safety contact output
Functional Features:
- Monitor safety circuits such as emergency stop, safety door and light curtain
- Cut off power or control loop immediately when safety hazard occurs
- Self-diagnosis of internal circuit fault
- Interlock protection for mechanical equipment
Performance Parameters:
- Rated Operating Voltage: 24V DC industrial standard
- Operating Temperature: 0°C to 60°C
- Safety Response Time: Ultra-fast safety action response time
Material Composition: Safety-grade relay elements, flame-retardant engineering plastic housing, reinforced insulation terminals
Structural Characteristics: Standard DIN rail modular structure, integrated safety circuit, isolation type input and output, visual status indicator lamp
Working Principle: Continuously monitors the on-off state of all safety peripheral devices. Once abnormal state (emergency stop trigger, safety door opening etc.) is detected, the internal safety relay acts instantly to disconnect the equipment power or control circuit, so as to stop machine operation and protect personnel and equipment safety.
Advantages & Highlights:
- High safety certification level, meet international machinery safety regulations
- Built-in self-diagnosis function, real-time detection of module faults
- Fast response speed, minimize safety accident risk
- Standard installation, widely compatible with automation safety systems
Applicable Industries: Mechanical manufacturing, automated production line, robot system, packaging machinery, metal processing equipment

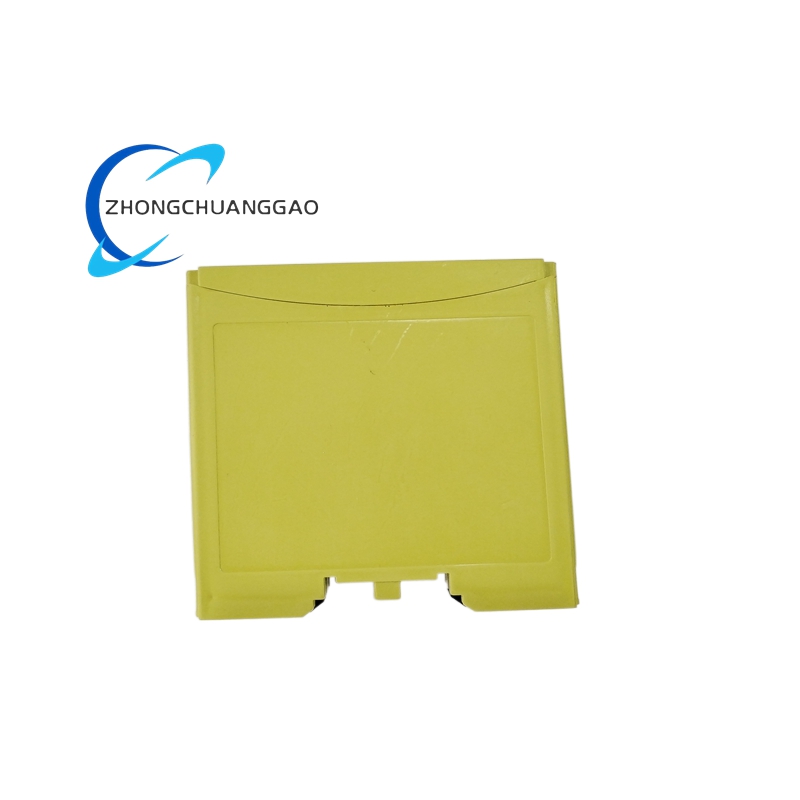

Model Series: Pilz PNOZ Safety Relay Series
Installation Requirements:
- Install on standard DIN rail inside electrical cabinet
- Wire strictly in accordance with safety circuit wiring diagram
- Complete safety function test after installation
Usage Notes:
- Do not modify internal circuit or wiring at will
- Conduct regular safety function test as per safety regulations
- Replace the module immediately if fault indicator lights up
