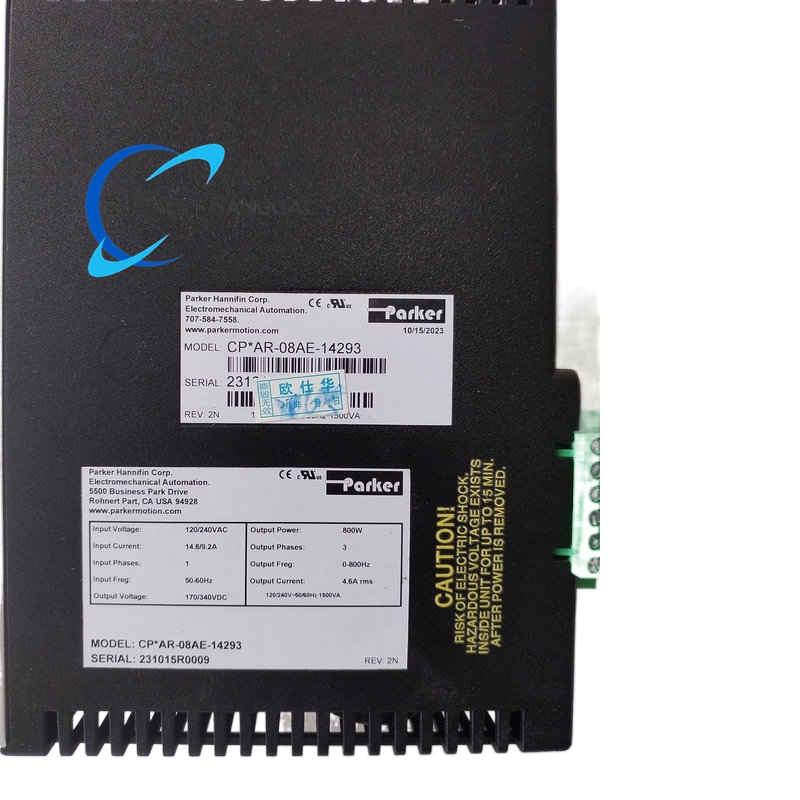

PARKER CPAR-08AE-14293

Description

Technical Specifications (Servo Drive Configuration):

• Product Type: High-Performance Servo Drive / Compax3 C3P Series Drive

• Series: Compax3 C3P Series

• Continuous Current: 8A

• Peak Current: 16A

• Control: Advanced control algorithms for dynamic positioning of servo motors

Technical Specifications (Dual-Filter Configuration):

• Product Type: High-Pressure Dual-Filter

• Series: CPAR Series

• Filtration Efficiency: β (c) ≥1000

• Contaminant Removal: 99.9%

Technical Specifications (Servo Motor Configuration):

• Product Type: Brushless Servo Motor

• Series: A-Series

• Frame Size: 80 mm

• Housing: Aluminum housing with corrosion-resistant coating

Technical Specifications (Hydraulic Valve Configuration):

• Product Type: Servo Cartridge Valve / Electro-Hydraulic Servo Valve

• Function: Dynamic closed-loop hydraulic motion control

Technical Specifications (Solenoid Valve Configuration):

• Product Type: 3/2-Way Solenoid Valve

• Function: Precise control of compressed air

• Configuration: 3/2 NC (Normally Closed)

Functional Features (Servo Drive):

• Compact Design: Compact yet powerful solution for controlling servo motors with precision and efficiency

• High Performance: Engineered for precision motion control in demanding industrial automation applications

• Advanced Control: Advanced control algorithms for dynamic positioning

• High Peak Current: 16A peak current capability for demanding loads

Functional Features (Hydraulic Valve):

• Dynamic Control: Solves inconsistent actuator response due to sluggish or nonlinear valve behavior

• Closed-Loop Control: Designed for dynamic, closed-loop hydraulic motion control

Advantages and Strengths:

• Compax3 C3P Series Technology: Proven Parker motion control platform

• Compact Design: Space-efficient for control cabinets

• High Efficiency: Precision and efficiency in motion control

• Versatility: Multiple configuration options for different applications

Applicable Industries:

• Industrial automation

• Precision motion control

• Hydraulic systems

• Pneumatic systems

Model Series:
Part of Parker Hannifin’s Compax3 C3P series, also associated with CPAR series and A-Series motor family.

Installation Requirements:

• Mounting: Depends on configuration (servo drive: control cabinet; filter: inline; valve: manifold/panel)

• Electrical: For servo drive configuration: proper power and motor connections

Usage Precautions:

• Configuration Verification: Confirm the exact product type (servo drive, filter, motor, or valve) before installation

• Application Matching: Select the appropriate configuration based on application requirements

• Environmental: Ensure compatibility with operating environment
