Product Short Description

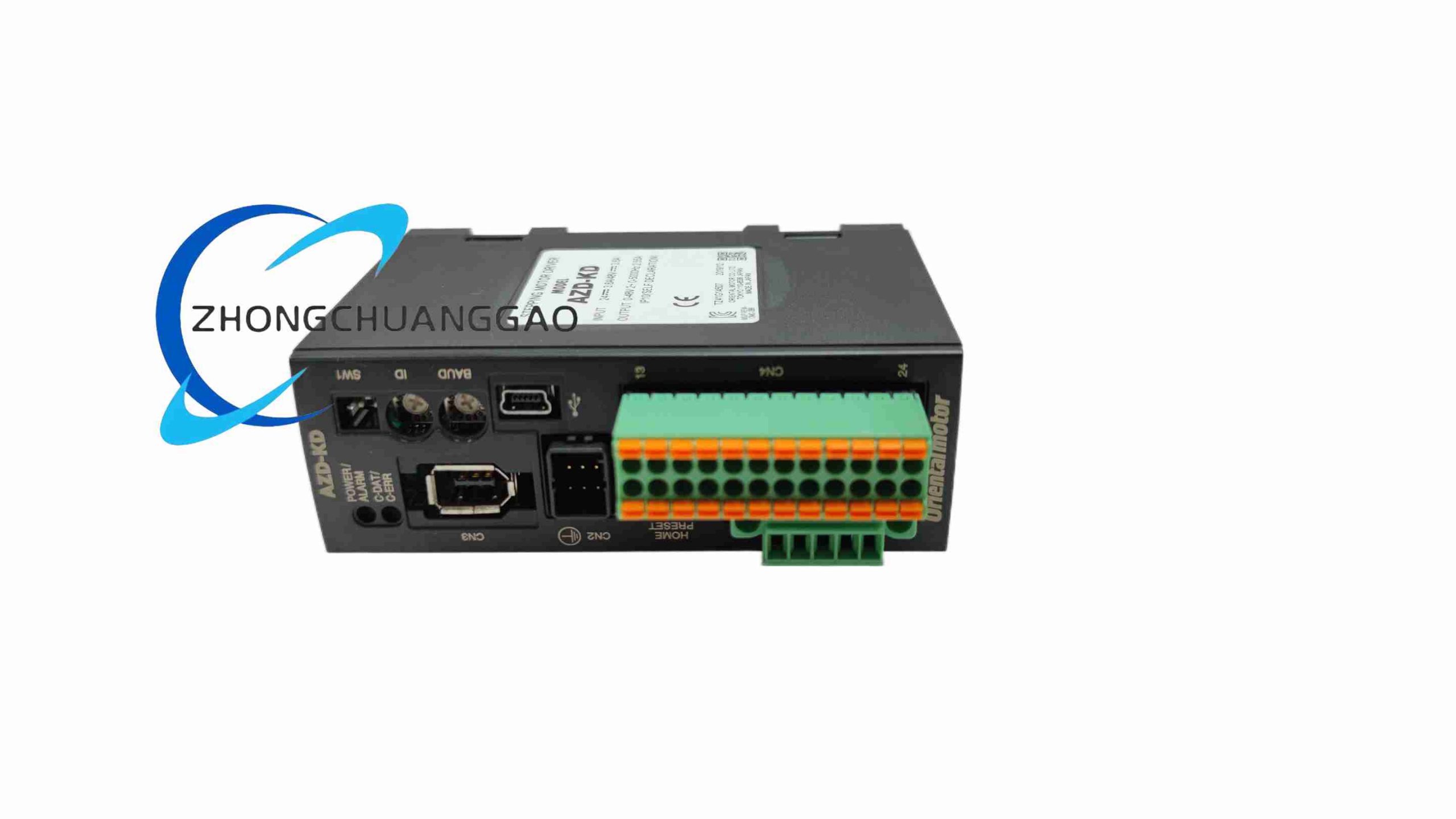

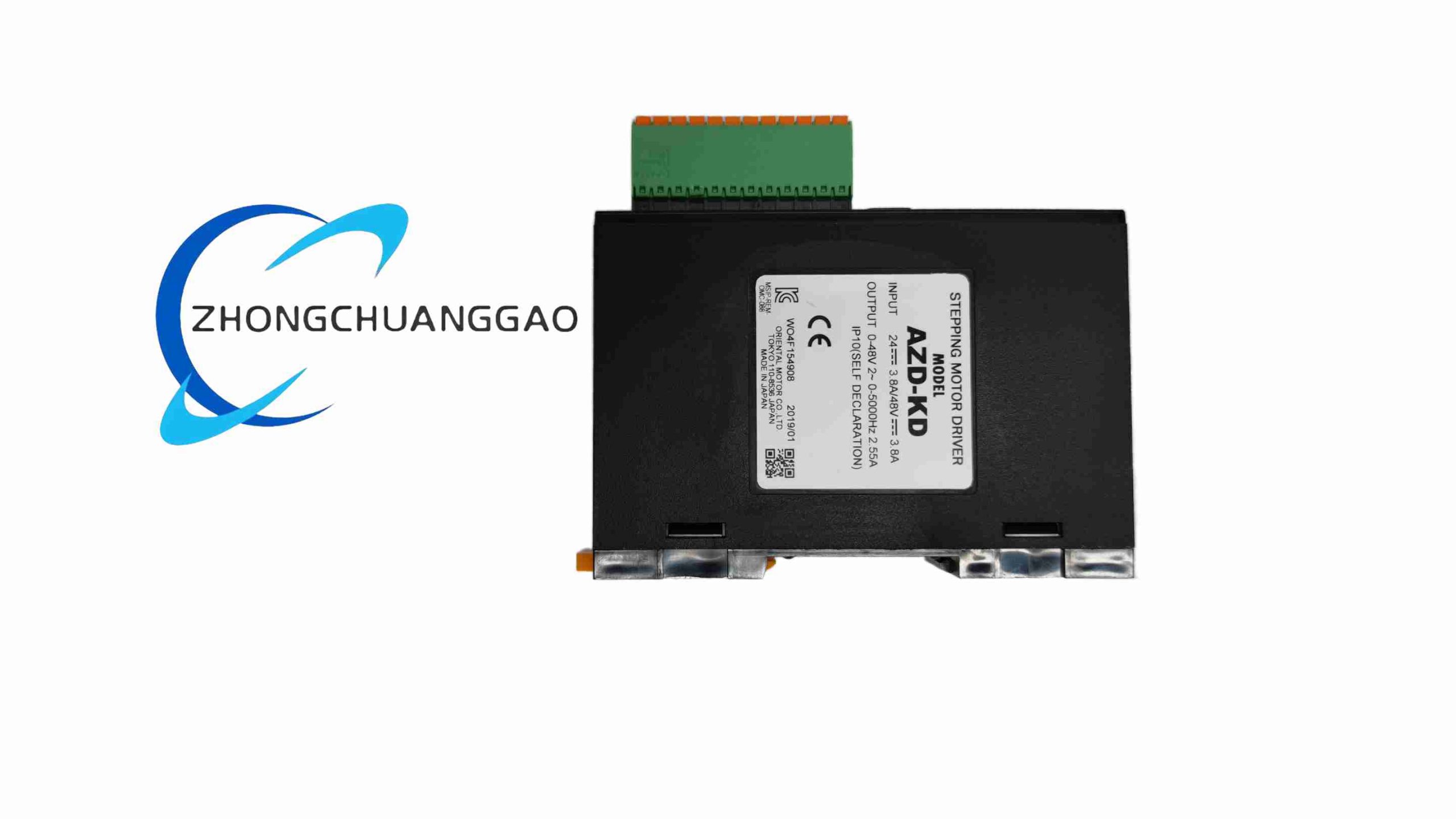

Product Name: αSTEP AZ Series Driver with Built-In Controller (Stored Data) AZD-KD (24/48 VDC)
Product Overview: A closed-loop driver with built-in absolute encoder system and built-in stored-data controller for simplified multi-axis networking. The driver is RoHS compliant and features a battery-free absolute system.
Technical Specifications:
- Driver Type: Closed-loop, absolute, built-in controller (stored data)
Description
- Power Supply: 24/48 VDC
- Interface: Pulse input type with RS-485 communication
- Maximum Input Pulse Frequency: Line driver 1 MHz (50% duty), open collector 250 kHz (50% duty)
- Positioning Data Sets: 256 points
- Control Input: 10 points photocoupler
- Control Output: 6 points photocoupler and open-collector
- Network Input / Output: 16 points / 16 points
- RS-485 Protocol: Modbus RTU mode, EIA-485 compliant
- Cable: Shielded twisted-pair (TIA/EIA-568B CAT5e or greater), max. total extension 50 m
- Communication Mode: Half-duplex, start-stop sync (data 8 bit, stop 1 or 2 bit, parity none/even/odd)
- Baud Rates: 9600, 19200, 38400, 57600, 115200, 230400 bps
- Max. Connected Units: 31 units to a single master
- Setting Tool: MEXE02 support software
Environmental & Structural Features:
- Operating Temperature: 0 to +50 °C (non-freezing)
- Operating Humidity: 85% max. (non-condensing)
- Atmosphere: No corrosive gases or dust; no exposure to water, oil or other liquids
- Motor Driver Thermal Class: 130 (B)
- Insulation Resistance: 100 MΩ or more at 500 VDC megger between case and motor windings
Working Principle: The built-in controller executes positioning, speed, and push-motion operations using a battery-free absolute encoder system. Networking is achieved via Modbus RTU over EIA-485, allowing simplified multi-axis control.
Application Scenarios: Automation systems requiring easy networking and simplified multi-axis control; operating in conjunction with AZ Series motors equipped with absolute sensors, eliminating the need for external sensors and reducing wiring.
Installation & Usage Notes: Connect using straight shielded twisted-pair cables (CAT5e or greater). Maintain ambient temperature 0–+50 °C (non-freezing) and humidity ≤85% (non-condensing). If the motor or power cable generates noise, shield the cable or apply ferrite cores. Use the MEXE02 software for configuration.
