Product Short Description

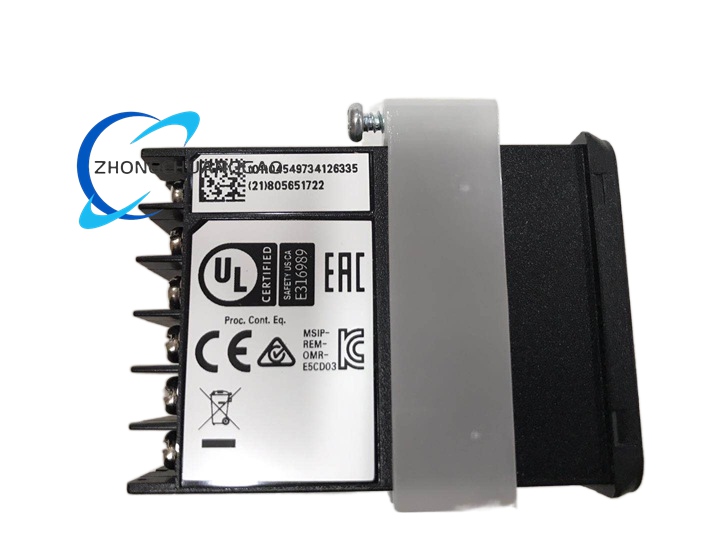

Product Name: E5CD Series Digital Temperature Controller (1/16 DIN, 48 × 48 mm)
Product Introduction: The E5CD-RX2ADM-802 is a general-purpose digital temperature controller from OMRON’s E5CD series, designed for industrial automation applications such as packaging sealing machines and water-cooled extruders. It delivers the same control performance as the popular E5CC series while adding Adaptive Control, Automatic Filter Adjustment, and Water-Cooling Output Adjustment functions.
Description
Technical Specifications:
- Panel Size: 1/16 DIN (48 × 48 mm), depth 60 mm
- Power Supply: 100 to 240 V AC
- Control Method: ON/OFF Control or 2-degree-of-freedom PID control with auto-tuning
- Input Type: Thermocouple (K, J, T, E, L, U, N, R, S, B, C/W, PLⅡ), Platinum RTD (Pt100, JPt100), Non-contact temperature sensor (ES1B), Analog voltage (0–5 V, 0–10 V, 1–5 V), Analog current (0–20 mA, 4–20 mA)
- Control Output 1: Relay output (AC250 V 3 A resistive load)
- Auxiliary Output: 2 independent points (relay)
- Communication: RS-485 (CompoWay/F, Modbus)
- Setting Method: Key input (front panel keys)
- Display: 11-segment digital display, PV character height 14.9 mm, SV character height 7.1 mm, plus bar graph
- Sampling Period: 50 ms (high-speed)
- Measurement Accuracy: ±0.3% of indication or ±1°C (thermocouple); ±0.2% of indication or ±0.8°C (RTD)
- Protection Rating: Front panel IP66
- Ambient Temperature: -10 to +55 °C (no freezing or condensation)
- Ambient Humidity: 25 to 85% RH
- Storage Temperature: -25 to +65 °C
- Altitude: ≤ 2,000 m
- Power Consumption: 6.5 VA max (AC100–240 V); 4.1 VA max (AC24 V) / 2.3 W max (DC24 V)
- Certifications: UL (UL61010-1), CSA (C22.2 No.61010-1), KC, CE (EN/IEC61010-1), RCM
Functional Features:
- Adaptive Control: Automatically optimizes PID parameters in response to changes in system dynamics (ambient conditions, equipment aging, workpiece material changes)
- Automatic Filter Adjustment: Suppresses instability in surface temperature measurement common in sealing applications, improving sealing quality
- Water-Cooling Output Adjustment: Suppresses temperature variation causes in water-cooled extrusion processes
- Multi-SP Function: Stores up to 8 setpoint values (SP0–SP7), selectable via key operation or serial communication
- Diagnostic Data: Monitors power-on time, ambient temperature, and output ON/OFF cycle count
- Heater Breakage & SSR Fault Detection
- Draw-out screw-terminal block structure for easy maintenance without rewiring
Application Scenarios: Packaging machines (pillow-type, vertical form-fill-seal), water-cooled twin-screw extruders, heating/cooling controlled processes requiring precise temperature regulation.
Working Principle: The controller accepts a temperature sensor or analog signal at its input, compares the measured process value (PV) against the setpoint (SV), and computes a control action using 2-degree-of-freedom PID with auto-tuning. The resulting output drives a relay (or external SSR) to regulate the heating/cooling element. RS-485 communication enables integration with PLC systems for programless data exchange.
Installation Requirements: Panel cut-out 45 × 45 mm; mount in a control panel with the front face rated to IP66. Use a T2A 250 V time-delay fuse for power supply protection. Ensure ambient conditions stay within -10 to +55 °C and 25–85% RH.
Usage Precautions: Do not exceed the rated supply voltage range (85–110% of nominal). Avoid locations with freezing, condensation, or corrosive atmospheres. The relay output is rated for 3 A at 250 V AC resistive load—do not exceed this rating. When using for heater break detection, proper CT input wiring is required.
