Product Short Description

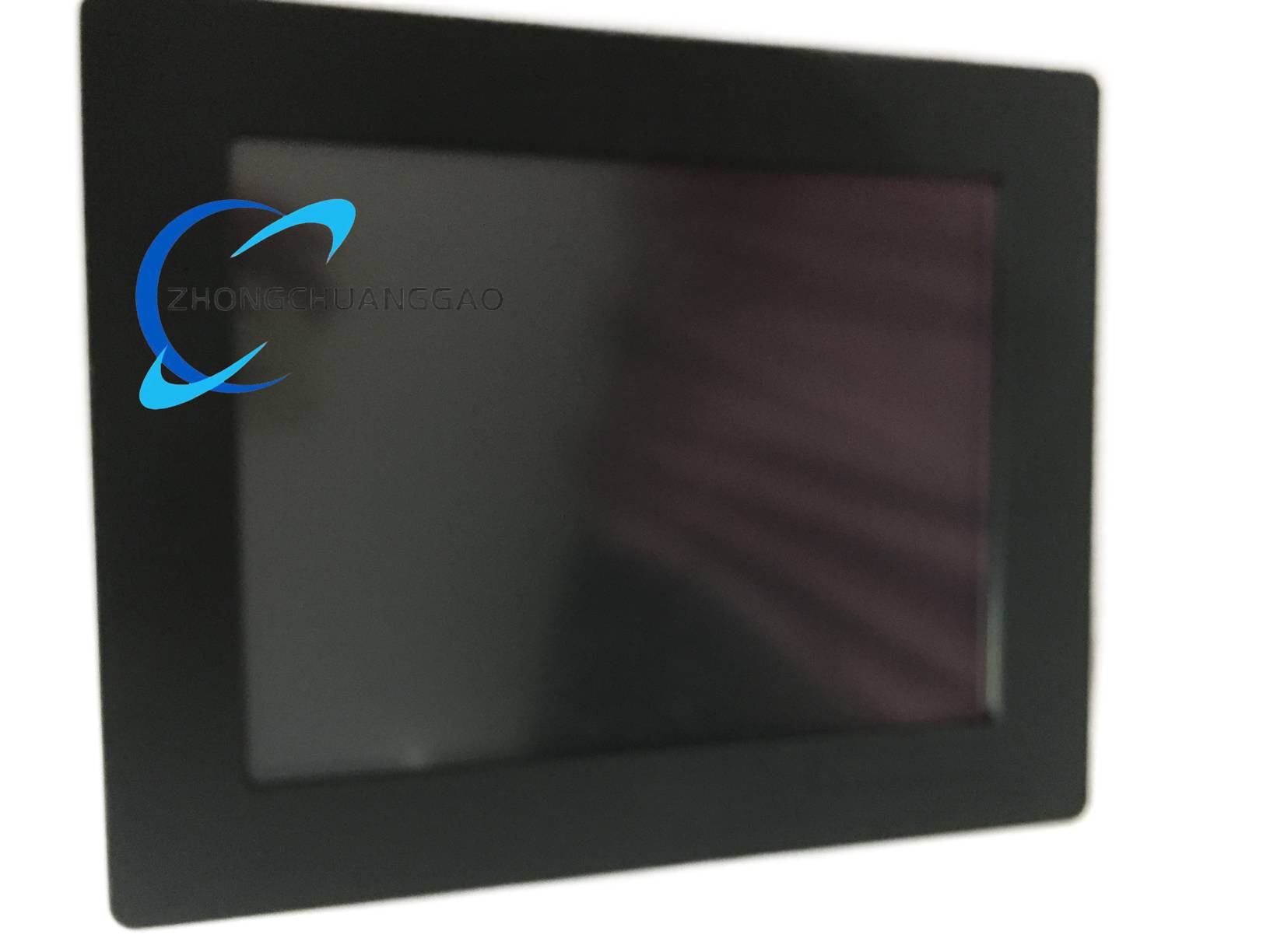

Product Name: Industrial Embedded PC (Wonderware / Nematron EPC1200T Series)
Product Introduction: The EPC1200T-N270-2GB-40SS-XP is a compact, rugged industrial embedded computer designed for demanding industrial automation applications. It features a fanless, ventless design making it suitable for harsh environments, with a solid-state drive ensuring resistance to shock and vibration.
Description
Technical Specifications:
- Processor: Intel Atom N270, 1.6 GHz
- Memory: 2 GB DDR2 SDRAM
- Storage: 40 GB SSD (Solid State Drive)
- Operating System: Windows XP Embedded
- Ethernet: 10/100/1000 Mbps
- USB Ports: 2 × USB 2.0
- Serial Ports: 2 × RS-232
- Display: VGA port for external monitor
- Dimensions: 9.8″ × 7.5″ × 1.4″
- Weight: 2.9 lb
Functional Features:
- Fanless, ventless design for harsh environments
- Rugged construction with solid-state storage
- Multiple connectivity options (Ethernet, USB, RS-232)
- NEMA 1 frame size (per Nematron variant)
- CE, C-Tick, UL, cUL compliant
- Smart card interface for parameter/application program cloning and backup
Application Scenarios: Manufacturing plants, warehouses, industrial automation, HMI, data acquisition and processing, industrial IoT (IIoT), machine vision and imaging. Ideal for extruders, elevator controls, conveyors, wire drawing machines, pumps, and bridle controls.
Working Principle: A standard x86-based industrial PC architecture with embedded Windows XP, providing a computing platform for automation software, PLC/HMI interfacing, and data processing at the machine level.
Installation Requirements: Panel or DIN-rail mount per variant; ambient air temperature 0°C to +40°C. Ensure adequate ventilation despite fanless design.
Usage Notes: The fanless design eliminates moving parts for maximum reliability in dusty or vibrating environments. The 40 GB SSD provides shock resistance. Connect via Ethernet for network integration with PLCs, HMIs, and sensors.
