Product Short Description

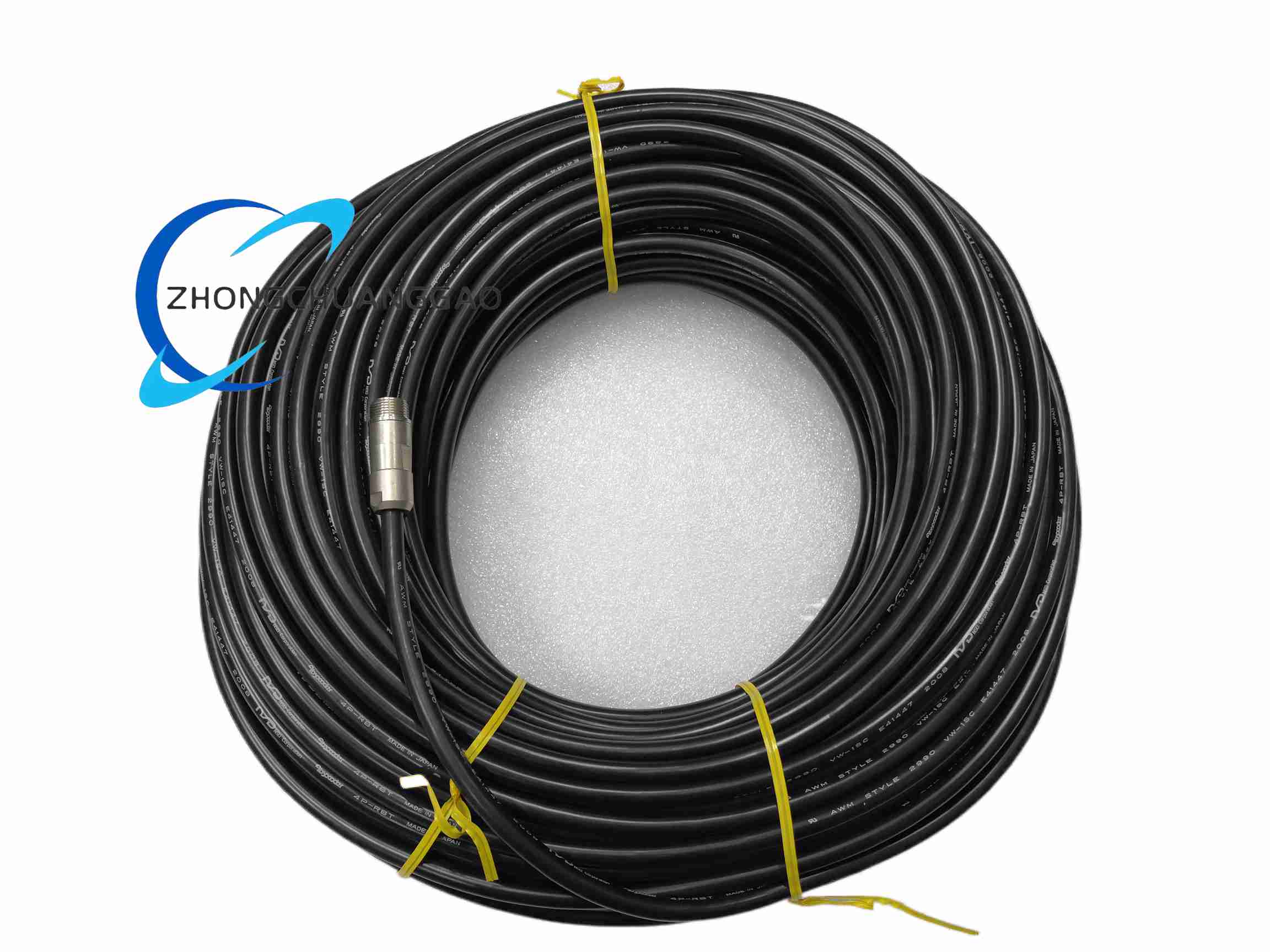

Product Name: ABSOCODER Robotic Extension Sensor Cable (4-Pair)
Product Introduction: A robotic-grade extension cable connecting an NSD ABSOCODER sensor (e.g., MRE-32SP062 series) to its converter. The “RBT” denotes robotic cable type with superior flexibility for moving applications. The “45” suffix indicates a 45-meter length.
Description
Technical Specifications:
-
Cable Type: Robotic cable (RBT)
-
Twist Pairs: 4 pairs
-
Applicable Sensor: Standard type ABSOCODER (P)
-
Converter-side Connector: 01 (R04-PB9M8.0A)
-
Sensor-side Connector: 02 (R04-JB9F8.0A)
-
Length: 45 meters
-
Diameter: Φ8 mm
-
Rated Voltage: 30 VAC
-
Operating Temperature: -5 to +60°C
-
Storage Temperature: -10 to +60°C
-
Insulator: ETFE plastic
-
Sheath: Polyvinyl chloride mixture
-
Color: Black
-
Construction: 8-core, 2 pairs without shield + 2 pairs with shield
-
Max. Cable Length: 40 m (single segment), 70 m (interconnected)
-
Compatible Sensors: MRE-32SP062, MRE-G□SP062, VRE-P028, VRE-P062, CSA cylinder, VLS-□PW
Functional Features:
-
Superior flexibility, ideal for moving/robotic applications
-
Shielded pairs for noise immunity
-
Designed for long-distance extension in ABSOCODER absolute encoder systems
Application Scenarios: Robot joint absolute position feedback, servo motor multi-turn absolute encoding, moving machinery where standard cables would fail due to flex fatigue.
Usage Notes:
-
This is a dedicated product, not interchangeable with other cable types
-
For lengths beyond 50 m, custom lengths are available in 10 m increments
-
Ensure proper bend radius to maximize cable life
