Product Short Description

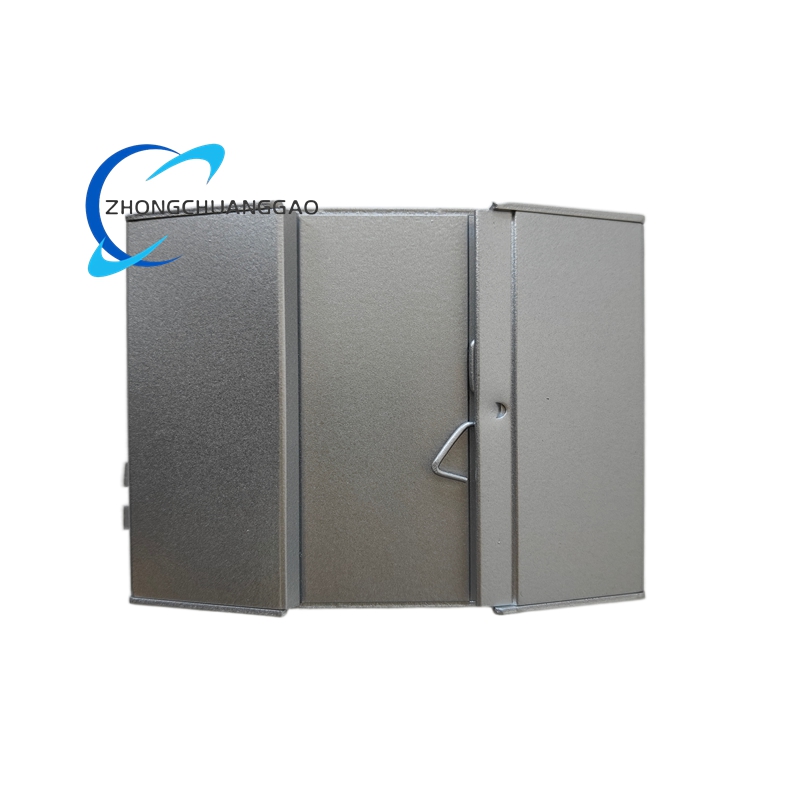

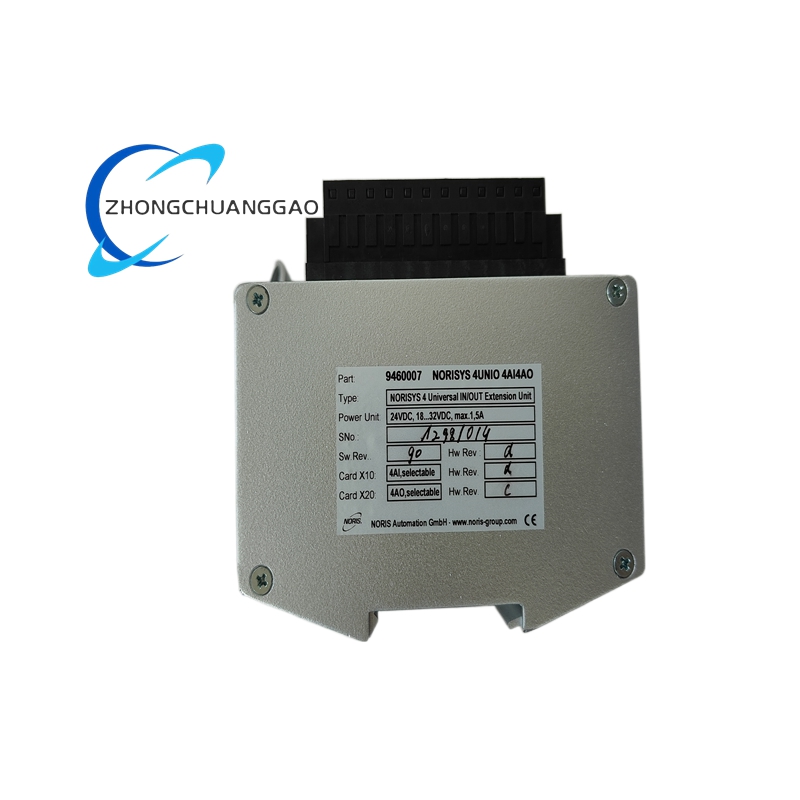

Product Name: NORISYS 4UNIO 4AI4AO Analog I/O Module
Product Series: NORISYS 4UNIO Universal I/O Module Series
Product Brief: Universal analog input and output integrated module with 4 analog input channels and 4 analog output channels. It is used for analog signal collection and analog control output in industrial automation systems, supporting standard industrial analog signal types.
Description
- Supply Voltage: 24 V DC ±10%
- Operating Temperature: -20 °C ~ +65 °C
- Storage Temperature: -35 °C ~ +80 °C
- Relative Humidity: 5% ~ 95% RH (Non-condensing)
- Analog Input Signal: 4~20 mA, 0~10 V DC standard signals
- Analog Output Signal: 4~20 mA, 0~10 V DC standard signals
- Channel Isolation Voltage: 1500 V DC
- Conversion Resolution: 16 bit
- 4-channel analog signal acquisition for pressure, temperature, flow and other sensors
- 4-channel analog signal output to control regulators, frequency converters and actuators
- Software configurable signal type for each channel
- Over-range protection and signal open-circuit detection
- Digital filtering for stable analog signal transmission
- Power Consumption: ≤ 9 W
- Signal Accuracy: ±0.08% FS
- Conversion Time per Channel: ≤ 0.2 ms
- Vibration Resistance: 8 Hz ~ 160 Hz, 0.9 g
- MTBF: ≥ 108000 hours
- PCB: FR-4 flame-retardant multilayer circuit board
- Enclosure: Industrial ABS flame-retardant plastic shell
- Core Chips: 16-bit AD/DA conversion chips, signal conditioning chips
- Terminal Blocks: Reinforced plastic base + brass silver-plated contacts
- Protection Components: Surge suppression devices and isolation components
- Standard 35 mm DIN rail mounting structure
- Front terminal area with clear AI/AO channel classification marking
- Internal independent isolation design for input and output areas
- Integrated LED indicators for power and channel status
- Left and right snap structures for modular combination
External analog signals from field sensors enter AI channels, pass through isolation, filtering and amplification, then complete AD conversion and transmit digital data to the control system. The control system sends control data to AO channels, which complete DA conversion and signal conditioning, and output standard analog signals to drive field regulating equipment.
- Integrated 4AI+4AO design, high integration to save cabinet space
- Two universal signal types configurable for each channel
- High conversion resolution and high signal accuracy
- Full channel isolation, strong anti-interference ability
- Wide temperature range, suitable for general industrial sites
Chemical industry, energy and power, heating ventilation, environmental protection, hydraulic control, industrial furnace equipment, process automation
- Mount on standard 35 mm DIN rail inside control cabinet
- Use shielded twisted-pair cables for analog signal wiring
- Shielding layer single-point grounding at cabinet grounding bar
- Separate analog signal cables and power cables with large spacing
- Ensure good ventilation around the module for heat dissipation
- Do not access signals exceeding standard 4~20 mA / 0~10 V range
- Complete channel configuration according to actual signal type before operation
- Power off before replacing wiring or module
- Avoid surge voltage impact on input and output terminals
- Clean surface dust regularly to prevent terminal poor contact
