Product Short Description

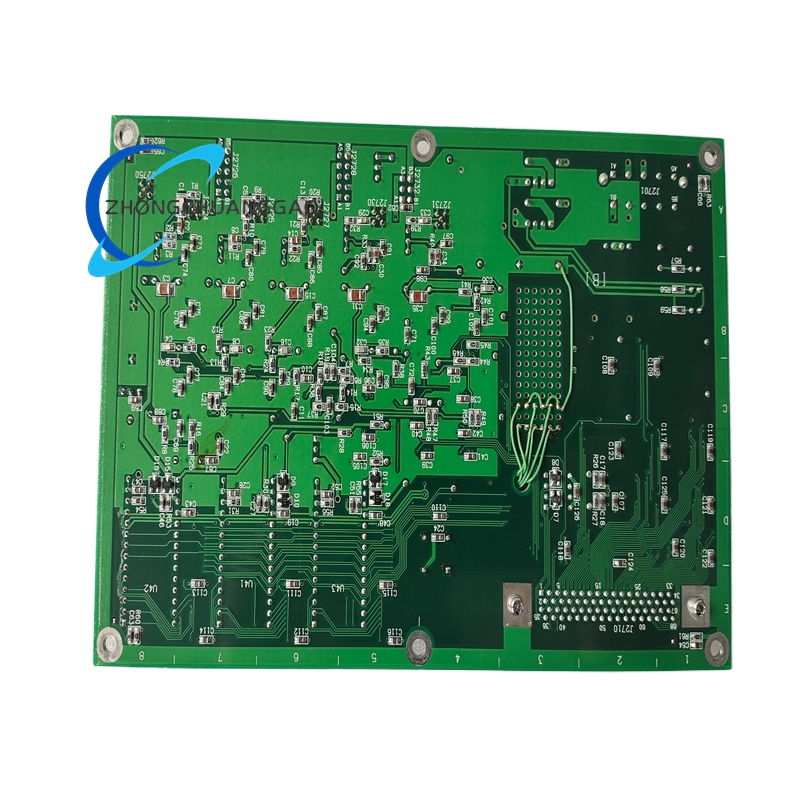

Product Name: NIKON 4S008-036 Precision Control Board
Product Series: NIKON Semiconductor & Precision Equipment Control Board Series
Product Brief: Dedicated precision control circuit board for Nikon high-precision optical equipment and semiconductor manufacturing equipment. It realizes motion control, optical signal processing and equipment logic control, a core component of precision industrial equipment.
Description
- Supply Voltage: 5 V DC & 24 V DC dual power supply
- Operating Temperature: 18 °C ~ +40 °C
- Storage Temperature: 0 °C ~ +50 °C
- Relative Humidity: 30% ~ 70% RH (Non-condensing)
- Control Signal Response Time: ≤ 0.05 ms
- Electrical Isolation: Partial channel isolation, 1000 V AC
- High-precision servo motion control for precision mechanical axes
- Optical signal receiving, processing and feedback for optical systems
- High-speed logic operation and synchronous control of multi-group components
- Hardware-level position closed-loop control function
- Real-time status feedback and fault code output
- Total Power Consumption: ≤ 15 W
- Position Control Accuracy: ±1 μm
- Vibration Resistance: 10 Hz ~ 120 Hz, 0.5 g
- MTBF: ≥ 90000 hours
- Main Board: Ultra-high density multilayer precision PCB
- Electronic Components: Industrial high-precision chips, low-drift components
- Connector: High-density pin connector with gold-plated contacts
- Reinforcement Parts: High-rigidity insulating support frame
- Surface Coating: Anti-dust and anti-static conformal coating
- Flat rectangular circuit board structure with standard positioning holes
- Component directional layout for high-speed signal transmission
- Partitioned circuit area for motion control and optical signal processing
- Edge locking structure for fixed installation inside equipment
- Anti-static and anti-dust coating on entire board surface
The board receives upper control instructions and converts them into high-precision drive signals to control servo units and precision mechanical structures. It collects optical sensing signals and position feedback signals to form closed-loop control, so as to maintain high-precision running status of equipment. All logic operations are completed by onboard chips at high speed.
- Ultra-high control precision, meet semiconductor and optical equipment requirements
- Ultra-fast signal response, support high-speed synchronous operation
- Anti-static and anti-dust design, adapt to clean workshop environment
- Stable circuit performance, low drift for long-term precision operation
- Optimized layout to reduce internal signal interference
Semiconductor manufacturing equipment, precision optical instruments, lithography equipment, precision detection equipment, electronic component processing equipment
- Install horizontally inside sealed clean equipment cabin
- Fix all positioning holes with dedicated non-magnetic fasteners
- Use original high-density matched connectors for wiring
- Maintain constant temperature environment, avoid temperature fluctuation
- Keep away from vibration sources and electromagnetic interference sources
- Strictly operate in constant temperature and clean environment
- Wear anti-static gloves during disassembly and installation
- Prohibit touching component pins and circuit traces directly
- Do not apply excessive bending or extrusion on the board
- Cut off total power supply before any maintenance operation
