Product Short Description

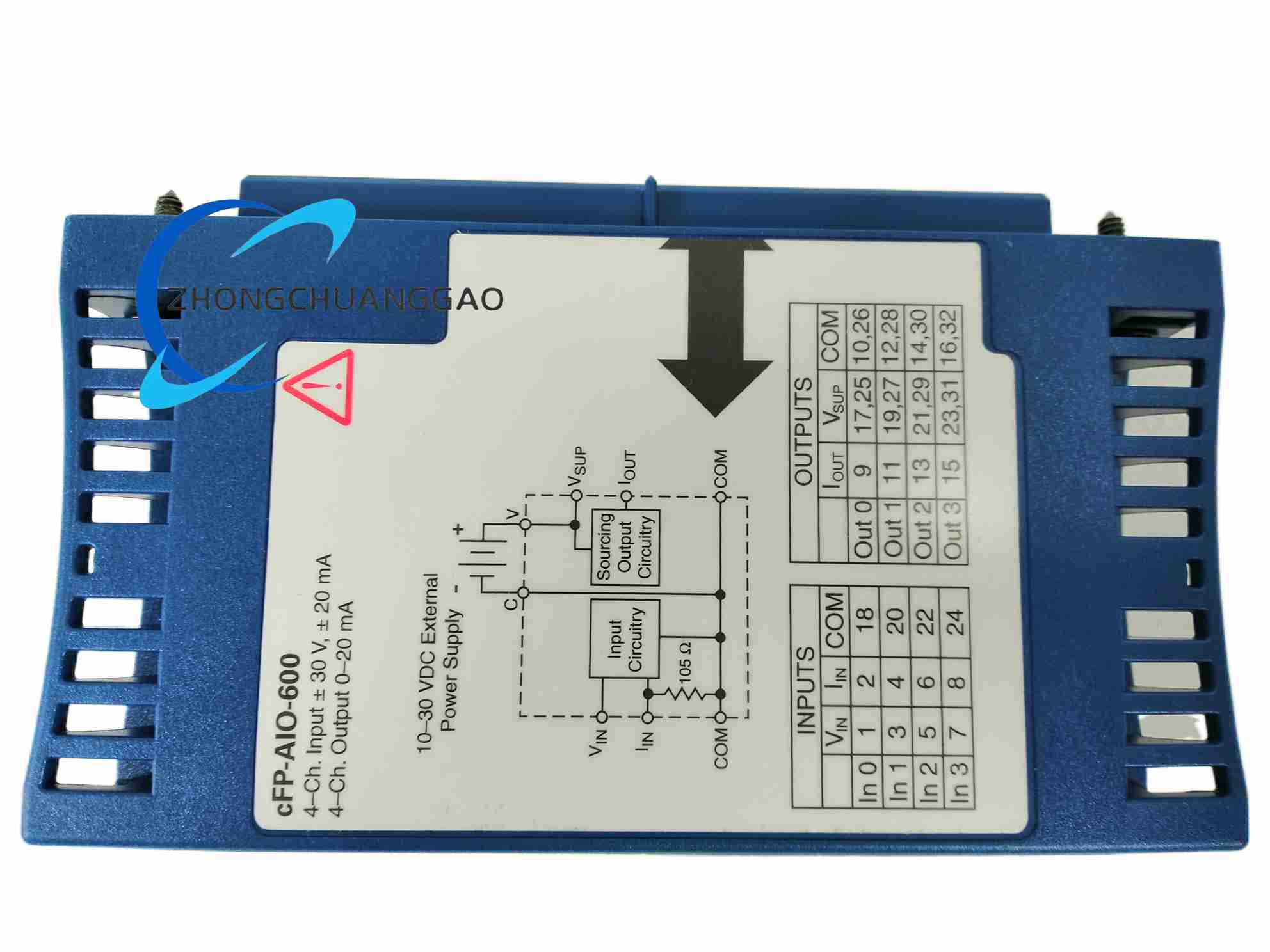

Product Name: cFP-AIO-600 Multifunction Analog I/O Module for Compact FieldPoint
Product Introduction: The cFP-AIO-600 is a 4-channel analog input and 4-channel analog output module designed for the Compact FieldPoint system. It combines high-resolution measurement and current source output capabilities in a single ruggedized package for industrial control and automation applications.
Description
Technical Specifications:
- Input Channels: 4 analog input channels
- Output Channels: 4 analog current output channels
- Input Ranges: Up to ±36 V voltage or ±24 mA current with overranging
- Output Ranges: 0–20 mA or 4–20 mA programmable (with overranging 0–21 mA or 3.5–21 mA)
- Resolution: 12-bit
- Hardware Update Rate: 1,700 updates/s
- Slew Rate: 0.4 mA/μs
- Input Accuracy (0–24 mA): ±0.07% reading, ±0.08% full scale at 15–35 °C
- Output Accuracy: ±0.03% of output value at 15–35 °C
- External Power for Output: 10–30 VDC, 125 mA for 4 output channels
- Internal Voltage Drop: 3 V
- Resistive Load: Up to 1 kΩ with 24 V supply
- Power Consumption from Network Module: 600 mW
- Weight: 111 g (3.9 oz)
Functional Features: The module provides automatic scaling and linearization for both input and output signals. It features short-circuit and open-circuit protection on output channels, with red output indicators for fault detection. Channel-to-ground isolation is rated at 250 Vrms (Measurement Category II) with 2,300 Vrms dielectric withstand for 5 seconds. There is no channel-to-channel isolation.
Application Scenarios: Ideal for connecting industrial transmitters, sensors, and actuators for high-accuracy measurement and control. Suitable for controlling valves, gauges, and other 4–20 mA loop devices in process automation.
Environmental Parameters:
- Operating Temperature: -40 to 70 °C
- Storage Temperature: -55 to 85 °C
- Humidity: 10 to 90% RH, noncondensing
- Vibration: Random 5 grms (10–500 Hz), Sinusoidal 5 g (10–500 Hz)
- Shock: 50 g, 3 ms half sine
Working Principle: The module converts incoming analog voltage or current signals to digital values with 12-bit resolution for the controller, while simultaneously generating precision current output through programmable current source channels powered by an external DC supply. The default power-up state is 0 mA output.
Installation Requirements:
- Install inside a sealed enclosure for outdoor or harsh environments
- Use appropriate connector blocks for wiring
- Connect external 10–30 VDC power supply for output channels
- Ensure proper grounding for Measurement Category II isolation
Usage Precautions:
- FieldPoint modules are for indoor use unless installed in a suitable sealed enclosure
- At altitudes above 2,000 m, isolation voltage ratings must be lowered
- For UL and other safety certifications, refer to the product label
- For EMC compliance, operate with shielded cabling
- The module complies with IEC 61010-1, EN 61010-1, UL 61010-1, and CAN/CSA-C22.2 No. 61010-1
