Product Short Description

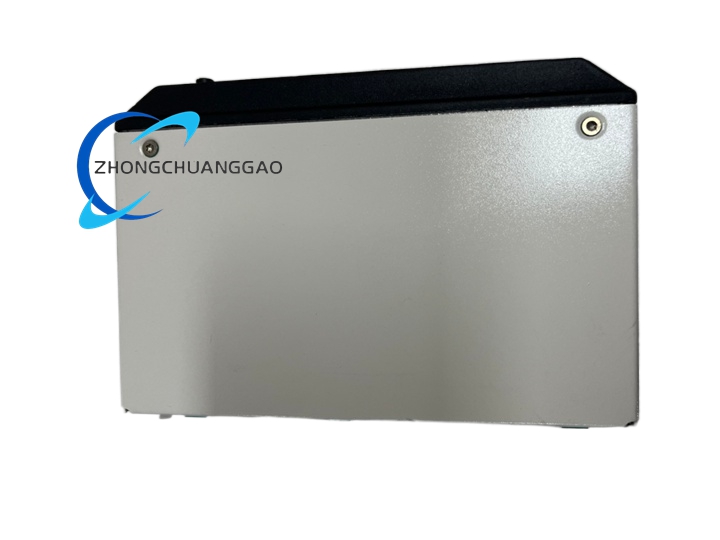

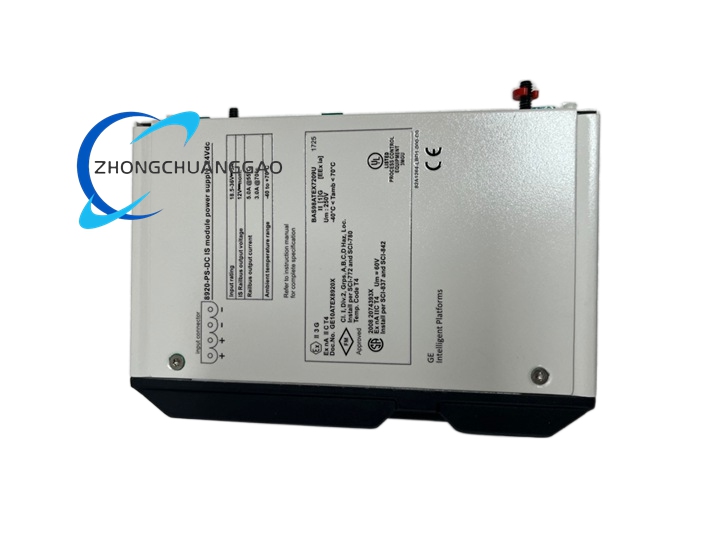

Product Name: DC Power Supply Module for IS (Intrinsic Safety) Modules
Product Overview:
A dedicated DC power supply that converts a nominal 24 V DC plant supply into a regulated 12 V DC bus to power MTL8000 I/O modules with intrinsically safe field wiring. Supports load‑sharing for redundancy.
Description
Technical Specifications:
|
Parameter
|
Specification
|
|---|---|
|
Input Voltage
|
18.5 – 36 V DC (nominal 24 V DC)
|
|
Output Voltage
|
12 V DC
|
|
Output Current
|
5 A capacity
|
|
Efficiency
|
76 % (18.5 V in, 4.1 A out); 78 % (24 V in, 3.3 A out); 76.5 % (36 V in, 2.1 A out)
|
|
Dimensions
|
84 mm (W) × 110 mm (H) × 160 mm (D)
|
|
Weight
|
≈ 1290 g
|
|
Input Connection
|
2‑part screw terminal, duplicated; max cable 2.5 mm²
|
|
Mounting
|
On carrier 8724‑CA‑PS (dedicated) or load‑share arrangement
|
|
Power Capability
|
Supplies 6 – 20 I/O modules depending on type; n+1 redundancy possible
|
Functional Features:
-
Regulated 12 V DC Output – Powers IS‑field I/O modules safely.
-
Load‑Sharing Redundancy – Multiple units can share load in n+1 configuration for high availability.
-
Wide Input Range – Accepts 18.5 – 36 V DC, accommodating global 24 V DC plant supplies.
-
Carrier‑Based Installation – Direct mount on 8724‑CA‑PS carrier.
Application Scenarios: MTL8000 PAC8000 I/O nodes requiring intrinsically safe field power, redundant power architectures for critical process control.
Working Principle: A switching regulator steps down the 24 V DC input to a tightly regulated 12 V DC bus; current sharing circuitry balances load among parallel units.
Installation Requirements: Mount on 8724‑CA‑PS carrier in a control cabinet; ensure input wiring gauge ≥ 2.5 mm²; fuse the 24 V DC input per plant standards.
Usage Notes: Do not exceed 5 A total load; when using redundancy, all units must be identical; verify output voltage before connecting I/O modules.
