Product Short Description

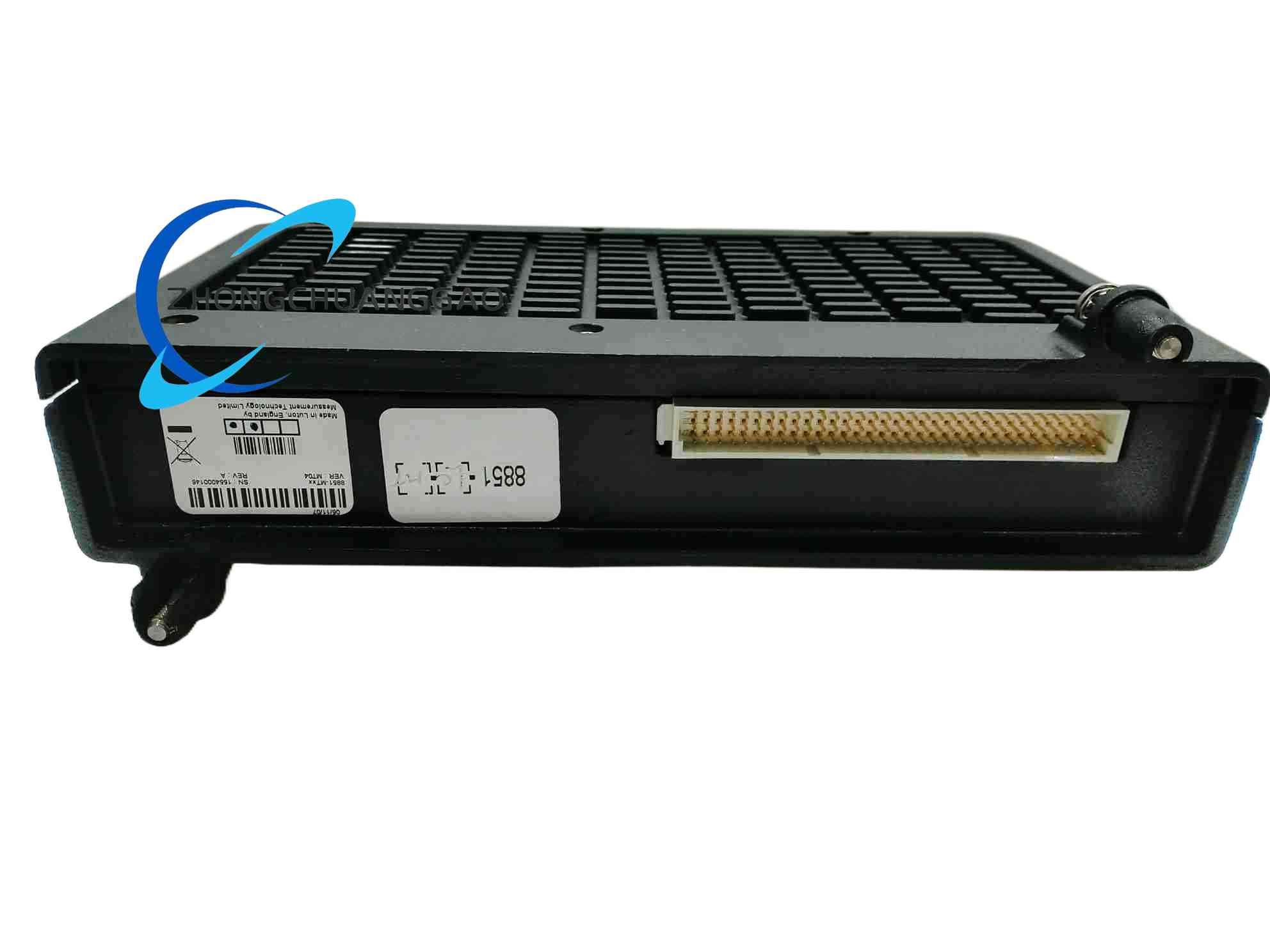

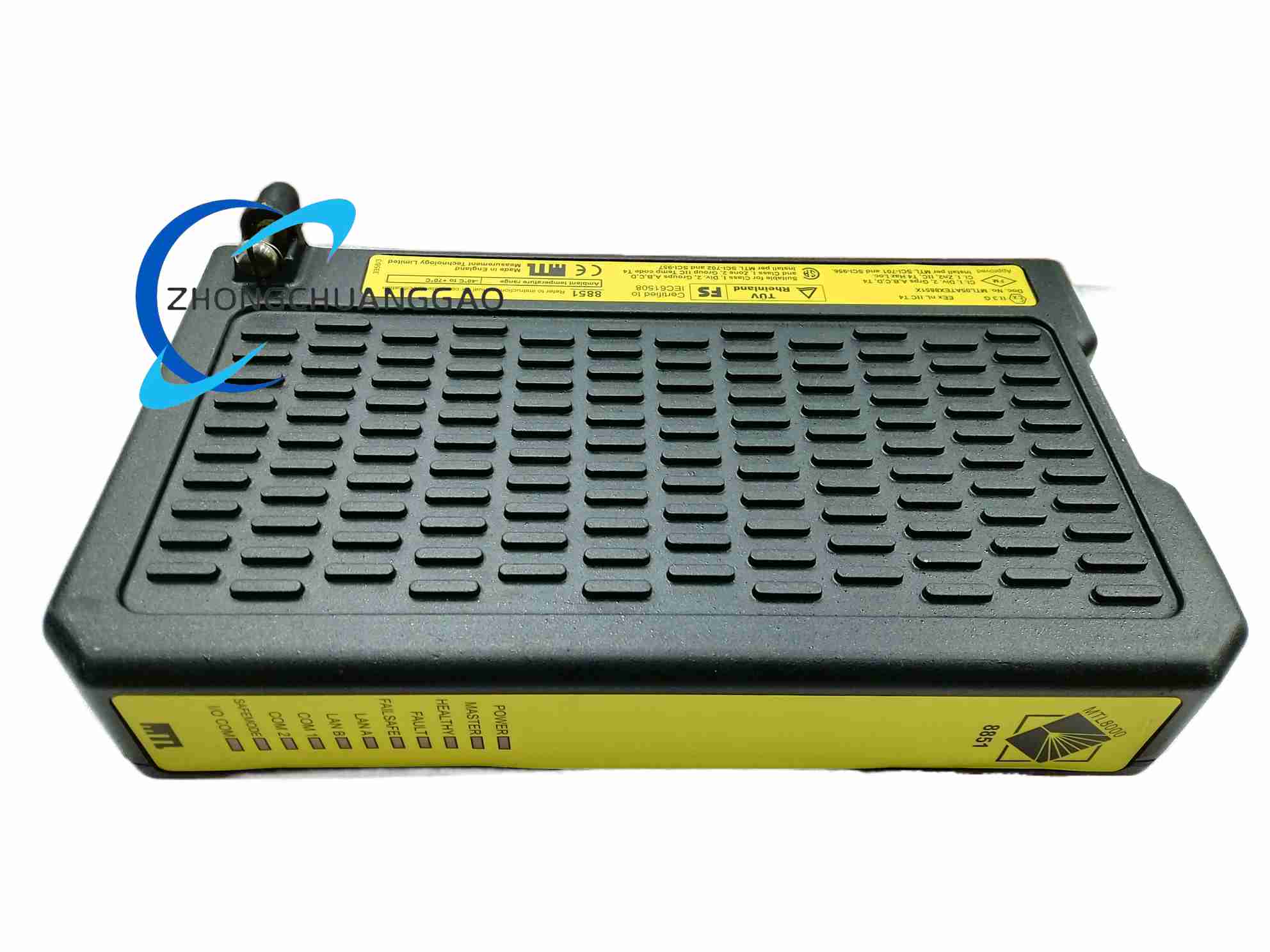

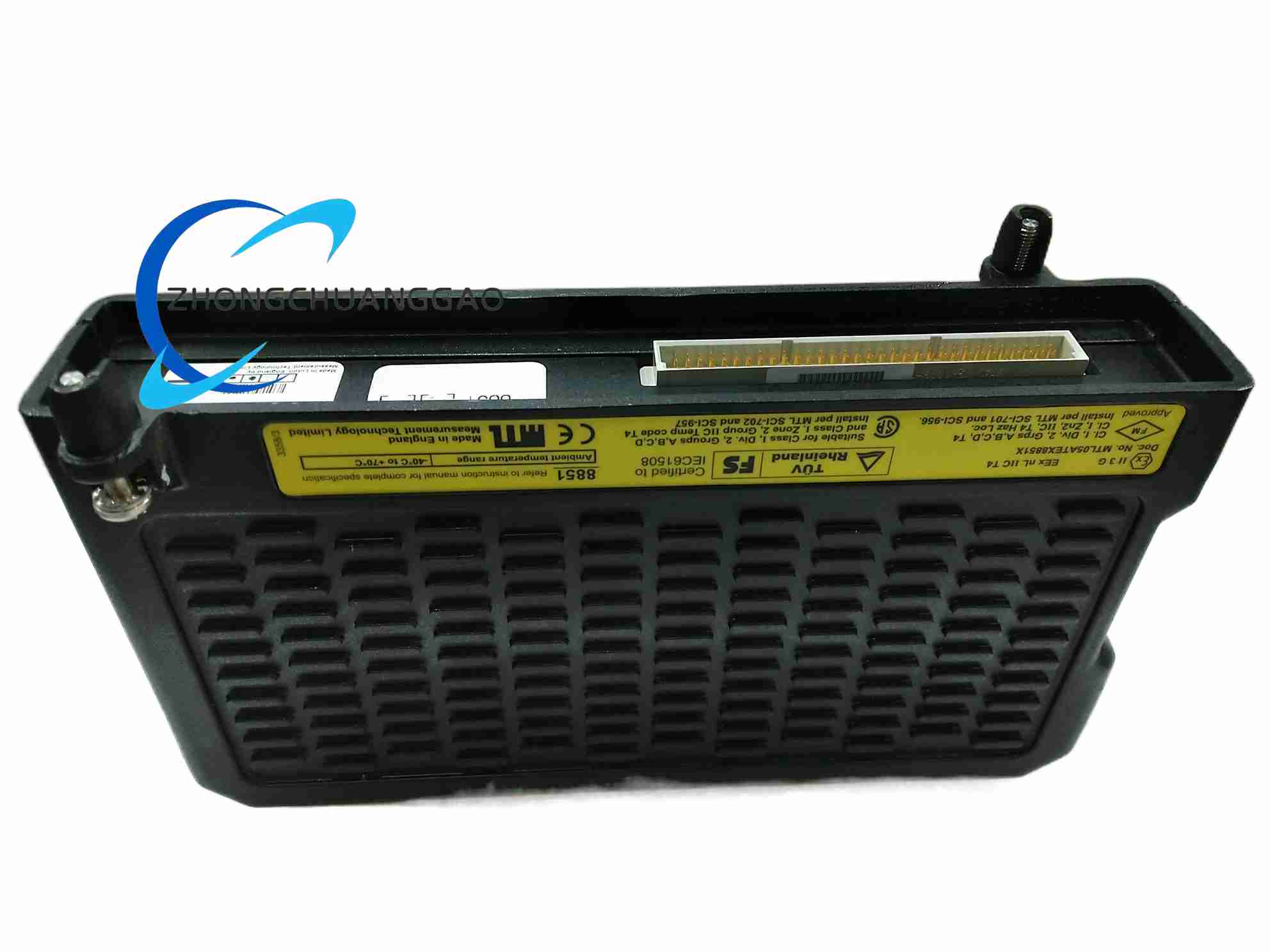

Product Name: SafetyNet Controller (MOST SafetyNet System)
Product Overview:
A SIL 2‑rated programmable safety controller that executes the SafetyNet application downloaded from Workbench, manages communication with local I/O modules via internal Railbus, and interfaces with other controllers, HMI, and asset‑management tools over dual redundant Ethernet and serial links.
Description
Technical Specifications:
|
Parameter
|
Specification
|
|---|---|
|
Power Voltage
|
12 V DC (supplied from 8913‑PS‑AC)
|
|
Power Consumption
|
0.4 A typical, 0.5 A max
|
|
LAN Interface
|
2 × RJ45, 10/100 Mbps, 1500 V isolation
|
|
Serial Interfaces
|
COM1 (9‑pin D‑sub female) & COM2 (9‑pin D‑sub male), RS‑485 half‑duplex, 1.2 – 115.2 kbps
|
|
Safety Certification
|
IEC 61508 SIL 2
|
|
Protection Technique
|
EEx nL IIC T4
|
|
Location Rating
|
Class 1, Div 2, Groups A‑D T4 (FM/CSA)
|
|
Event Log
|
Up to 8000 events
|
|
Internal Diagnostics
|
1oo1D safe architecture with optional redundancy
|
|
Hot‑Swappable
|
Yes, even in hazardous areas
|
|
Dimensions
|
7 × 14 × 13 cm
|
|
Weight
|
1.24 kg
|
|
Operating Temp.
|
‑20 °C to +70 °C
|
|
Storage Temp.
|
‑40 °C to +85 °C
|
|
Humidity
|
5 – 95 % RH, non‑condensing
|
|
HART Support
|
Process & status variable transmission
|
Functional Features:
-
Dual Redundant High‑Speed Ethernet – Two independent LAN connections for fault‑tolerant communication.
-
Online Configurability – Re‑configure without stopping the process.
-
Redundancy Strategy Management – Operates as master or standby in a redundant pair.
-
Comprehensive Diagnostics – LED status indicators, internal self‑test, event logging.
-
IEC 61131‑3 Programming – Via Workbench (Ladder, FBD, Structured Text).
-
Live Maintenance – Hot‑swap capability in Class 1 Div 2 / Zone 2.
Application Scenarios: Oil & gas signal conditioning in explosive atmospheres, chemical/petrochemical safe signal transmission, power‑plant critical‑process isolation, emergency shutdown systems.
Working Principle: Stores and executes the SafetyNet application; polls I/O modules on the Railbus, exchanges data over Ethernet LAN with peer controllers/HMI, and handles serial field devices; implements voted output based on 1oo1D or redundant architecture.
Installation Requirements: Mount on PAC8000 carrier; supply 12 V DC from 8913‑PS‑AC; connect dual Ethernet cables to separate network switches for redundancy; ground properly to plant earth.
Usage Notes: Only authorized personnel may modify the application; perform regular proof‑testing per SIL 2 requirements; verify firmware compatibility before hot‑swap.
