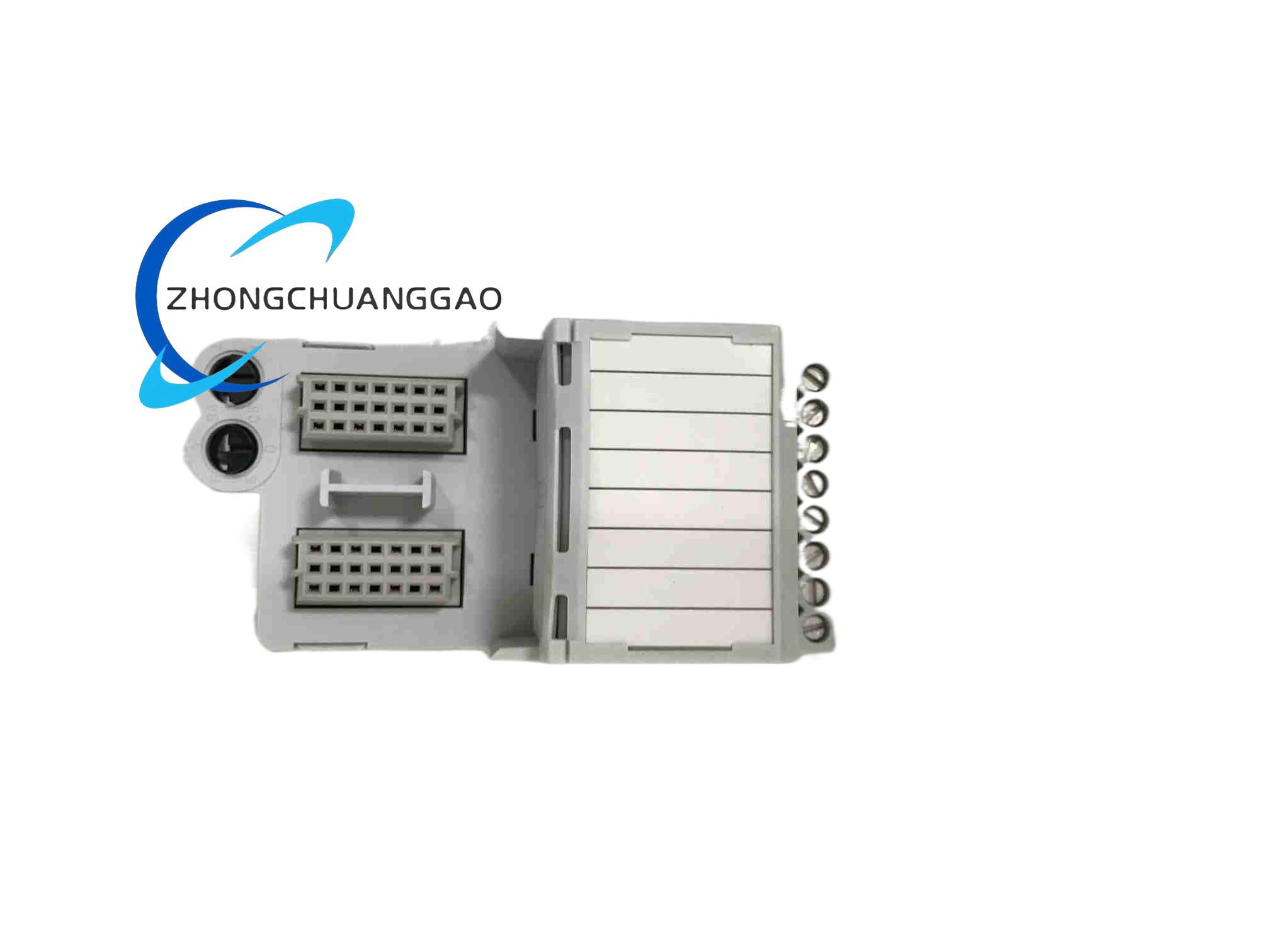

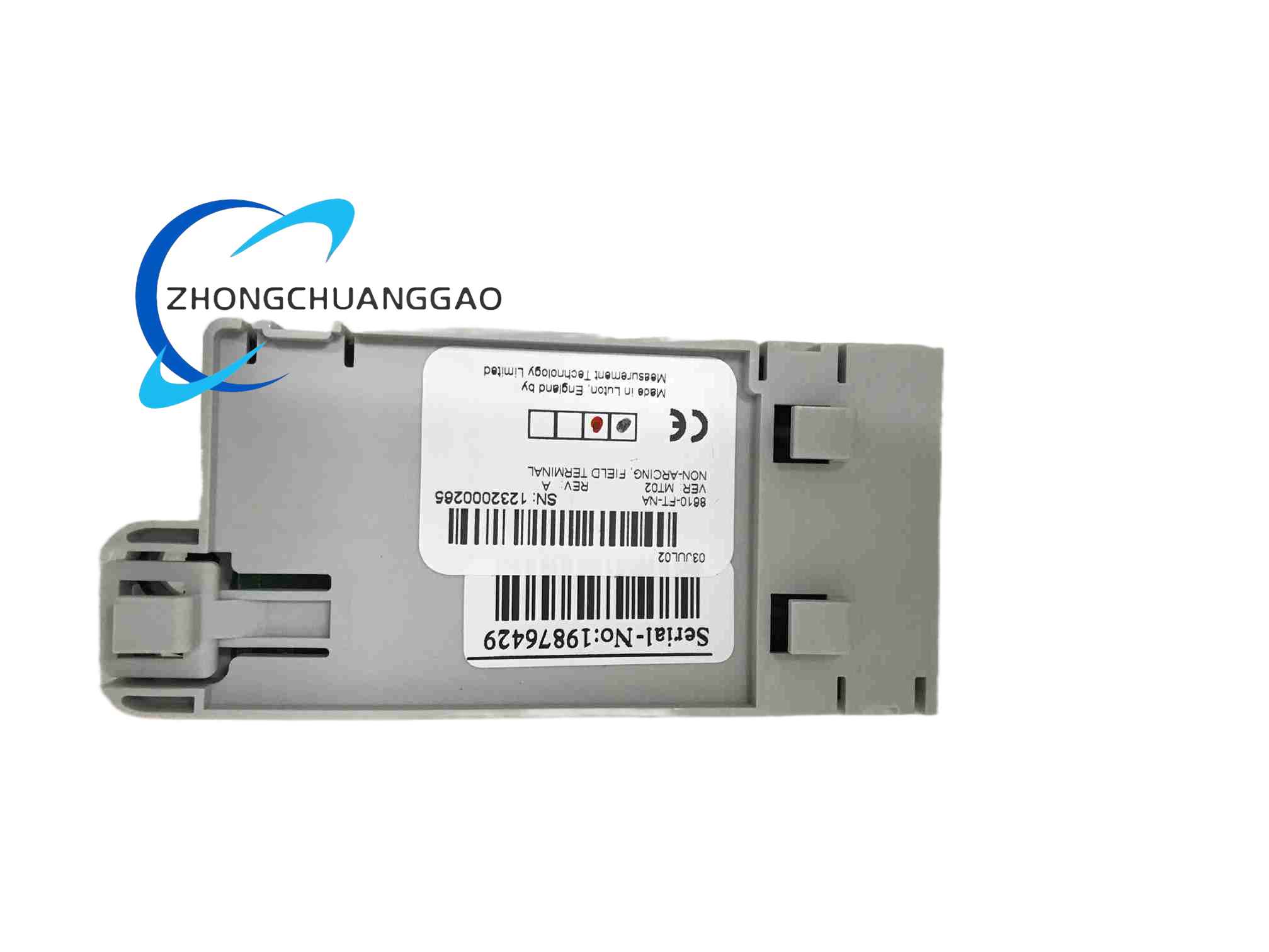

Product Name: Foundation Fieldbus (FF) H1 Communication Module
Product Overview:
A rugged Foundation Fieldbus H1 interface that extends fieldbus connectivity into Zone 0/1 hazardous areas with intrinsic safety, surge protection, and support for up to 32 field devices per module.
Description
Technical Specifications:
|
Parameter
|
Specification
|
|---|---|
|
Protocol
|
Foundation Fieldbus H1 (31.25 kbps)
|
|
Max Devices
|
32 FF devices per module
|
|
Safety Certification
|
ATEX II 1 G Ex ia IIC T4 Ga; IECEx Ex ia IIC T4 Ga
|
|
Power Supply
|
24 V DC (18 – 32 V DC), 0.8 A max
|
|
Communication Ports
|
1 × FF H1 fieldbus (twisted pair); 1 × Ethernet 10/100 Mbps RJ45 for config
|
|
Mounting
|
35 mm DIN rail (EN 50022)
|
|
Protection
|
IP20 (panel‑mount, indoor)
|
|
Operating Temp.
|
‑40 °C to +70 °C
|
|
Humidity
|
5 – 95 % RH, non‑condensing
|
|
Manufacturer
|
MTL Instruments (a Siemens company)
|
Functional Features:
-
Intrinsic Safety (Ex ia) – Limits electrical energy to non‑ignition level in Zone 0/1.
-
Built‑in Surge Protection – Guards fieldbus trunk from transient overvoltage.
-
Full FF H1 Functionality – Device configuration, parameter monitoring, diagnostics, remote calibration.
-
DCS Integration – Seamless with Siemens PCS 7, Emerson Ovation, Honeywell Experion.
-
Ethernet Config Port – Remote engineering via MTL configuration tool or third‑party FF tools (e.g., Emerson AMS).
Application Scenarios: Offshore oil wellhead monitoring, chemical reactor control, smart transmitter/valve networking in hazardous zones, modernization of FF‑based control architectures.
Working Principle: Acts as a barrier/interface translating the intrinsically safe FF H1 trunk to the non‑hazardous‑side DCS, while regulating bus power and protecting against surges.
Installation Requirements: Install on DIN rail inside a control cabinet located in a safe area; connect FF H1 trunk via shielded twisted pair to field devices; ensure proper earthing of the bus shield.
Usage Notes: Do not exceed 32 devices per segment; verify Ex ia certification matches the hazardous zone classification; use only approved FF power supplies.
