Product Short Description

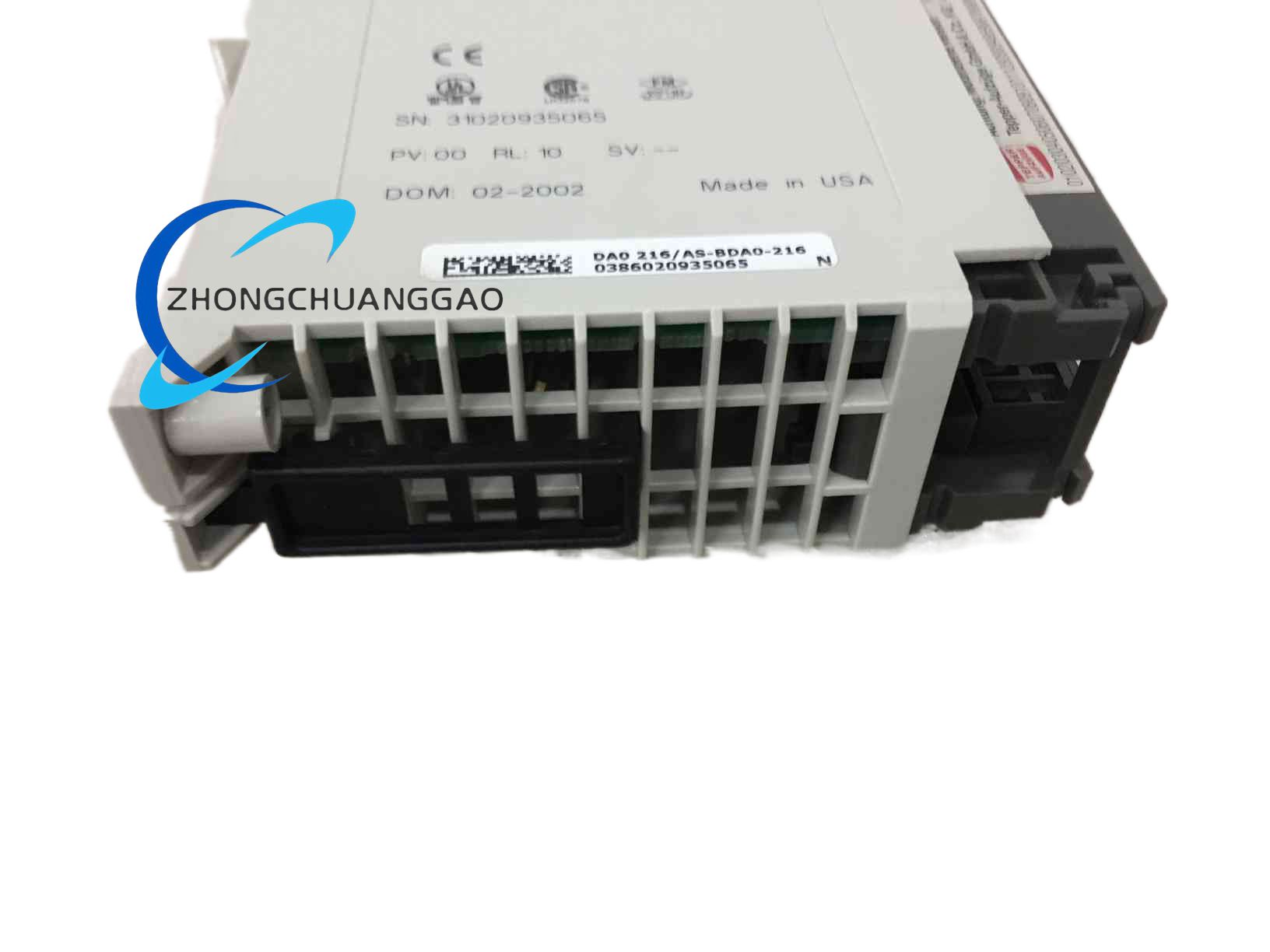

Product Name: Modicon 800 Series 16-Channel 24 VDC Sinking Digital Output Module.
Product Overview: The AS-BDAO-216 is a discrete digital output module for Modicon PLCs. It provides 16 sinking-type output points, each capable of switching up to 2 A at 24 VDC, designed for industrial automation, process control, and manufacturing applications requiring high reliability and flexibility.
Description
Technical Specifications:
-
Module Type: Digital/Sinking Output Module
-
Output Channels: 16 channels
-
Rated Voltage: 24 VDC
-
Output Current: 2 A per channel (16 channels total)
-
Output Type: Sinking
-
Isolation: Each output point is electrically isolated
-
Indicators: LED indicator for each output point for visual status
-
Dimensions: 96 mm × 166.5 mm × 42.6 mm
-
Weight: 190 g
-
Mounting: DIN rail
-
Operating Temperature: -10 °C to 60 °C
-
Storage Temperature: -40 °C to 85 °C
-
Humidity: 5% to 95% non-condensing
Key Features:
-
16 independent sinking outputs with 2 A capacity per point
-
Electrically isolated outputs for flexible wiring and reduced electrical interference
-
Per-channel LED status indication
-
Compatible with a wide range of Modicon PLCs; easily integrated into existing systems
-
Compact form factor
Application Scenarios:
-
Industrial automation
-
Process control
-
Manufacturing — driving DC loads such as relays, solenoids, and indicators
Installation & Usage Notes:
-
DIN rail mountable
-
Compatible with Modicon PLC systems
-
Ensure proper 24 VDC power supply
-
Maintain operating temperature within -10 °C to 60 °C
