Product Short Description

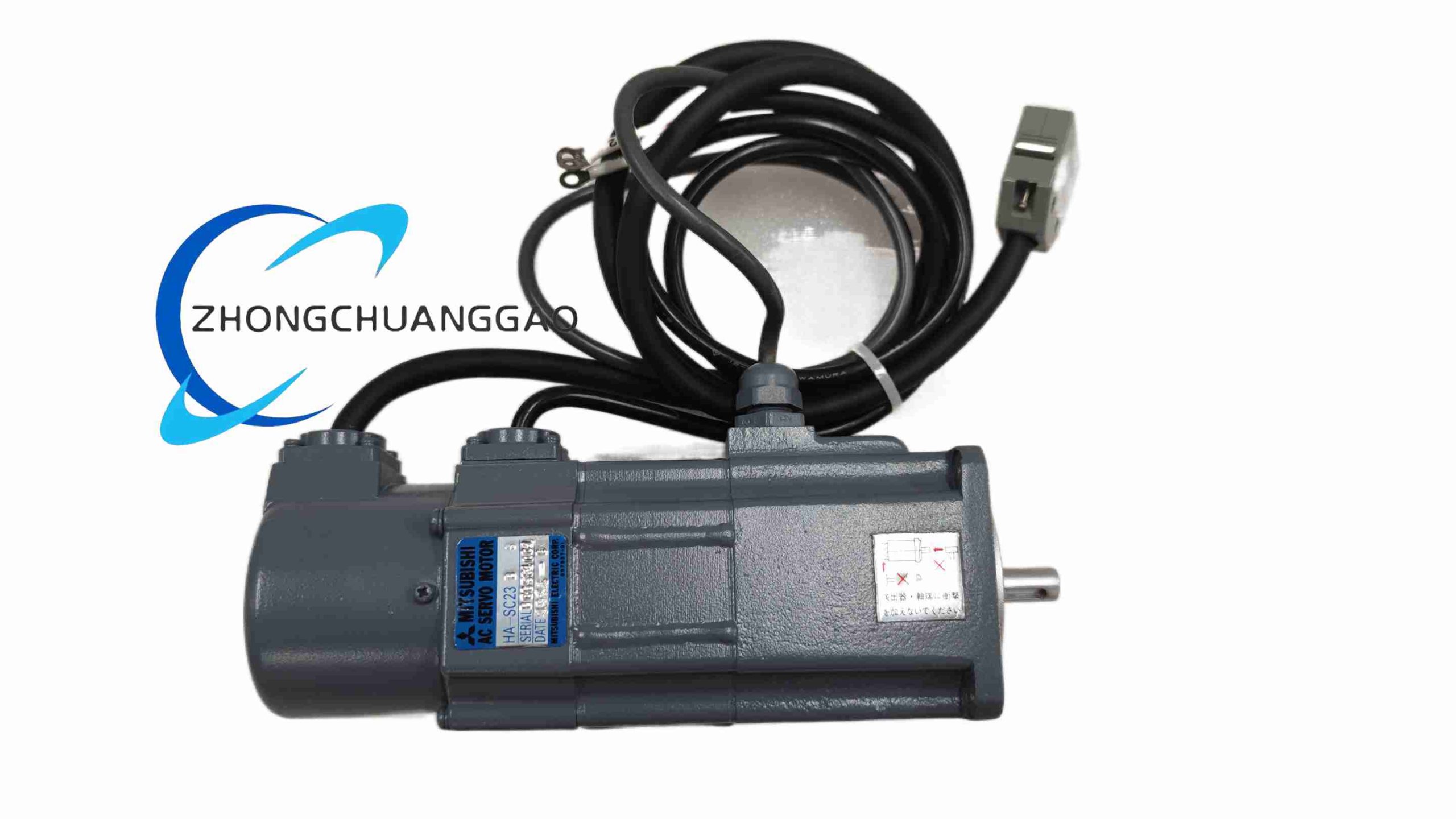

Product Name: MELSERVO-SC Series AC Servo Motor
Product Introduction: The HA-SC23 is a rotary AC servo motor belonging to Mitsubishi Electric’s MELSERVO-SC (HA-SC) series, designed for high-performance, compact-size motion control applications.
Technical Specifications:
- Series: MELSERVO-SC (HA-SC)
Description
- Model: HA-SC23
- Motor Type: AC Servo Motor
- Rated Output: 200 W (continuous)
- Rated Speed: 3000 r/min
- Electromagnetic Brake: Without
- Reduction Gear: Without
- Shaft Type: Standard (straight shaft)
- Encoder: Standard incremental encoder
- Power Supply Voltage: 200 V class
- Oil Seal: Without
- Structure: Standard
- Height from motor shaft centre: 12 mm (13 mm with brake per series table)
Functional Features: Compact design for space-limited applications; high torque and speed capability for precise and dynamic motion control; easy integration with Mitsubishi servo drives and controllers; reliable and long lifespan.
Application Scenarios: Machine tools (axis positioning in milling machines, lathes, CNC machines); packaging machinery (conveying, sorting, handling); robotics (motion control of robotic arms); assembly lines (precise component positioning); other automation applications requiring controlled motion.
Installation Requirements: Horizontally mounted; spindle may face upward or downward. When spindle faces upward, take counter-measures to prevent oil entry from gear box. For motors with reduction gear, installation must follow applicable outline drawing. During transportation and installation, avoid mechanical shock to the encoder; do not hold or lift the motor by the encoder.
Usage Notes: Use compatible Mitsubishi servo drive and controller; select appropriate model based on specific application’s torque, speed, and power requirements; ensure environmental and operational specifications are met.
