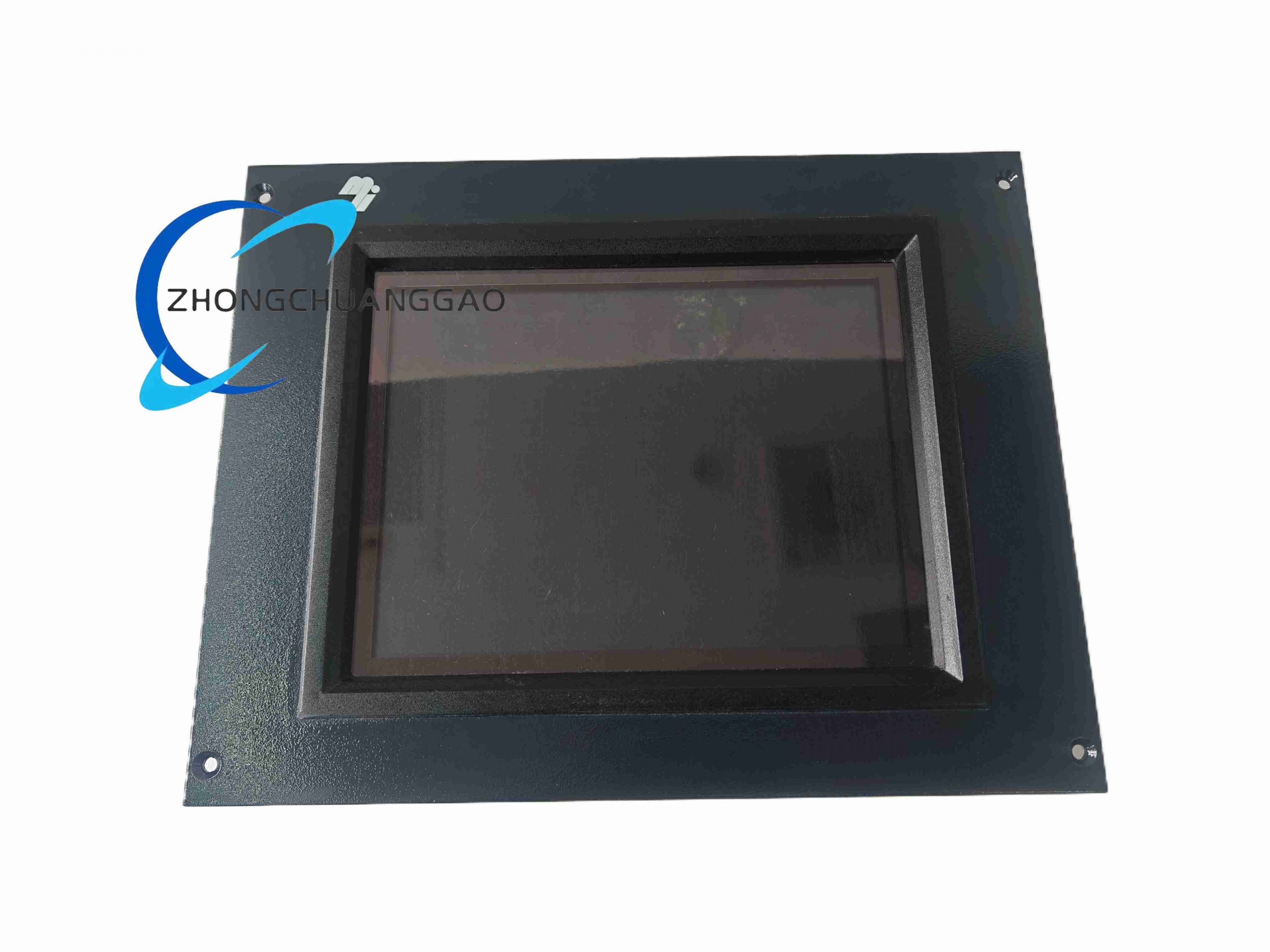

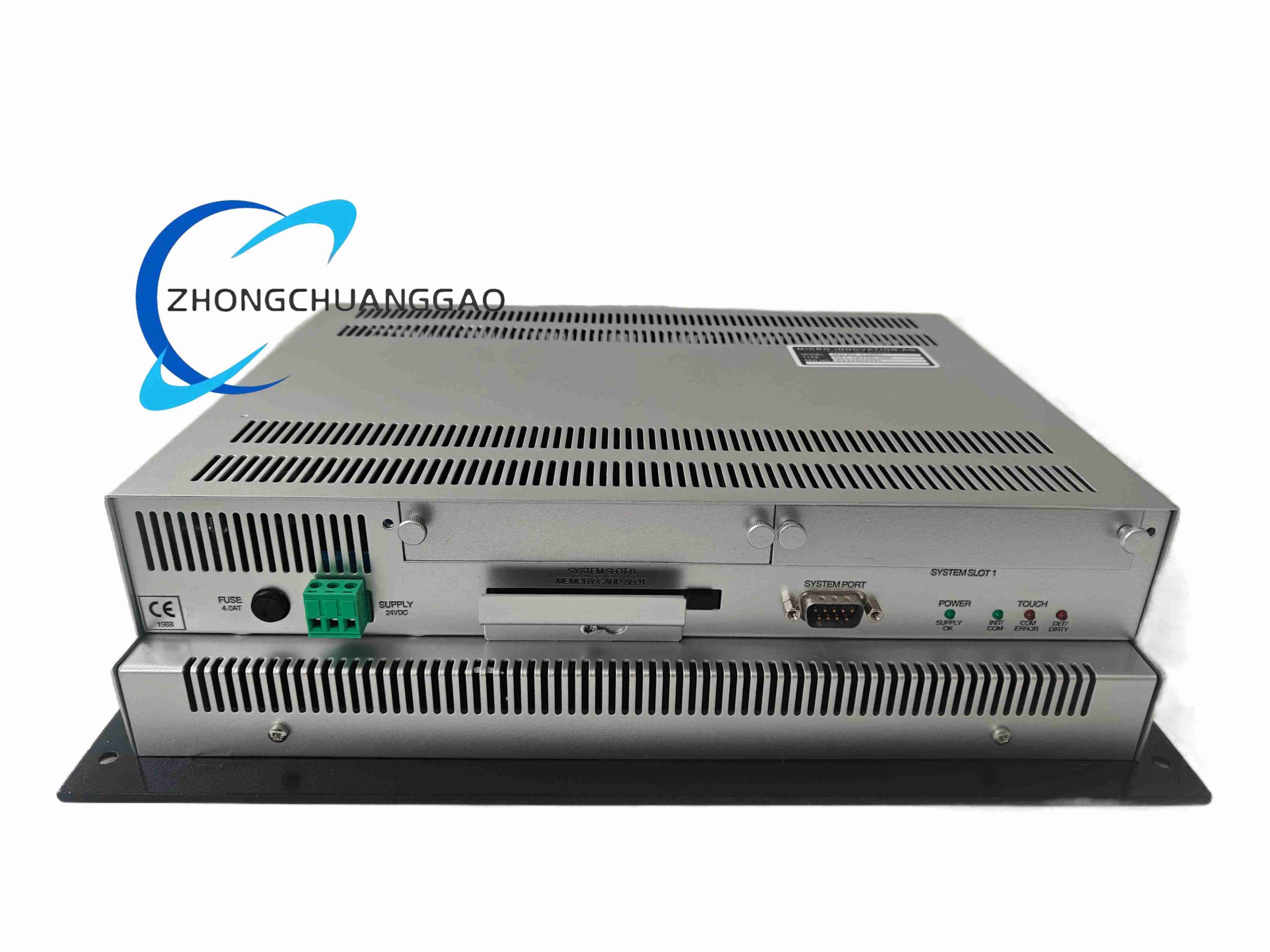

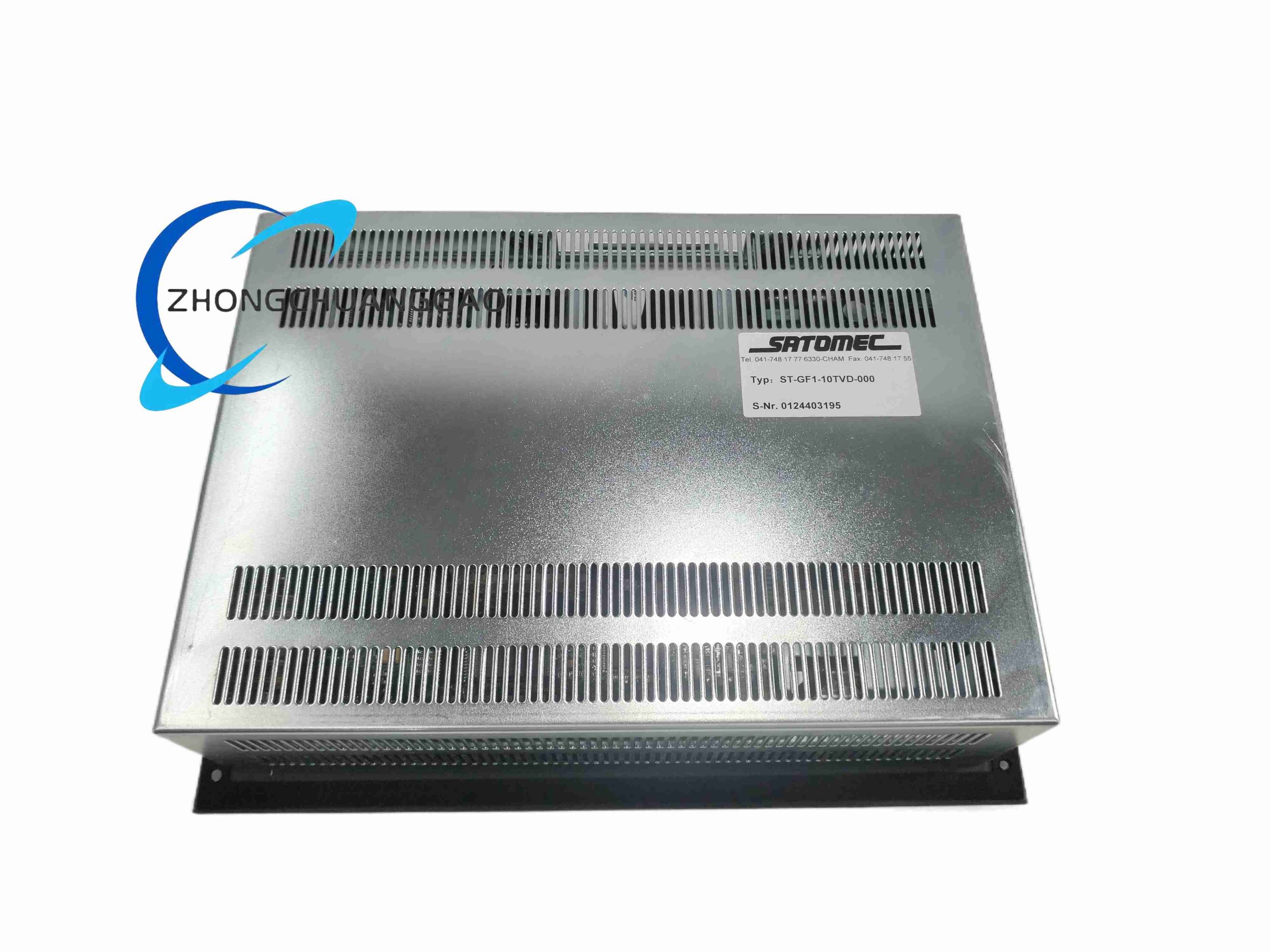

MICRO INNOVATION GF1-10TVD

Core Technical Specifications

1. Display Panel: 10.1-inch TFT LCD; resolution 1280×800; brightness 1000cd/m² sunlight-readable
2. Touch Screen: Capacitive multi-touch industrial glass panel, anti-scratch hard coating (6H hardness)
3. Processing Core: 32-bit ARM Cortex-A9 dual-core industrial CPU; 64MB Flash storage, 64MB DDR RAM
4. Power Input: Wide-range 9–30VDC; power consumption max 18W
5. Communication Ports: 2×Ethernet (Modbus TCP/IP, Profinet), 3×RS232/RS485 serial, 4×USB2.0 host, 8-channel GPIO digital I/O
6. Signal Compatibility: Analog input 0–10VDC, 4–20mA; RTD/thermocouple temperature signal expansion
7. Environmental Spec: Operating temperature -40°C ~ +70°C; storage -45°C ~ +85°C; IP65 front panel protection
8. Physical Dimension: Cutout mounting size 258mm(W) × 168mm(H); overall depth 38mm; weight 700g
9. Certifications: CE, UL, RoHS industrial automation compliance

Function Features

• Fanless passive heat dissipation design, MTBF ≥80,000 hours without mechanical moving parts
• Built-in multi-brand PLC driver library: Siemens, Allen-Bradley, Omron, Mitsubishi, Modbus slave/master
• Real-time data trend curve recording, fault alarm pop-up window, production batch data logging
• User program offline simulation editing via PC configuration software; USB program upload/download
• Automatic backlight brightness adjustment based on ambient light sensor; scheduled sleep power saving
• Isolated serial communication ports to prevent PLC ground noise damage to touch panel mainboard
• Support remote desktop access via Ethernet for online troubleshooting and program modification

Working Principle

1. User touch input coordinates captured by capacitive touch controller and transmitted to internal ARM CPU
2. CPU exchanges real-time production data with connected PLC/controllers via Ethernet or serial bus
3. Render graphical operation screens, digital readouts, trend graphs, and alarm prompts on TFT display
4. Process GPIO digital I/O signals to trigger external indicator lights, buzzers, or interlock relays
5. Store historical production data and fault records in local Flash memory for later export via USB storage
6. Transmit alarm status and operating parameters to upper monitoring SCADA through Modbus TCP Ethernet

Material & Structural Characteristics

• Front Frame: Die-cast aluminum alloy with matte black anodized anti-corrosion finish
• Display Seal: EPDM rubber full perimeter gasket to achieve IP65 dust/water splash front protection
• Main Enclosure: Flame-retardant PC plastic rear housing with passive aluminum heat sink plate
• Circuit Board: Conformal coated PCB to resist condensation, dust, and industrial chemical vapor
• Cable Connectors: Lockable circular industrial M12 connectors for vibration-resistant wiring

Installation Requirements

1. Embedded panel cutout mounting; lock with four stainless steel mounting clamps supplied with unit
2. Install cabinet ventilation to avoid surrounding temperature exceeding +60°C; reserve 30mm rear clearance for wiring
3. Route communication cables as shielded twisted pairs; separate high-power motor cables by ≥20cm
4. Power supply wiring adopts twisted pair shielded cable with surge suppression terminal block
5. Ground touch panel rear earth lug to cabinet protective ground point

Usage Precautions

• Do not clean touch screen with alcohol, acetone, or corrosive solvents; use neutral water-based microfiber cloth only
• Avoid sharp metal objects scratching capacitive touch glass surface
• Disable backlight auto-sleep only if continuous visual monitoring is mandatory to extend LCD service life
• Do not plug/unplug serial/Ethernet communication cables under live power to prevent port chip burnout
• If deployed in chemical workshop, install transparent protective polycarbonate cover to block corrosive fumes
