Description
Product Overview

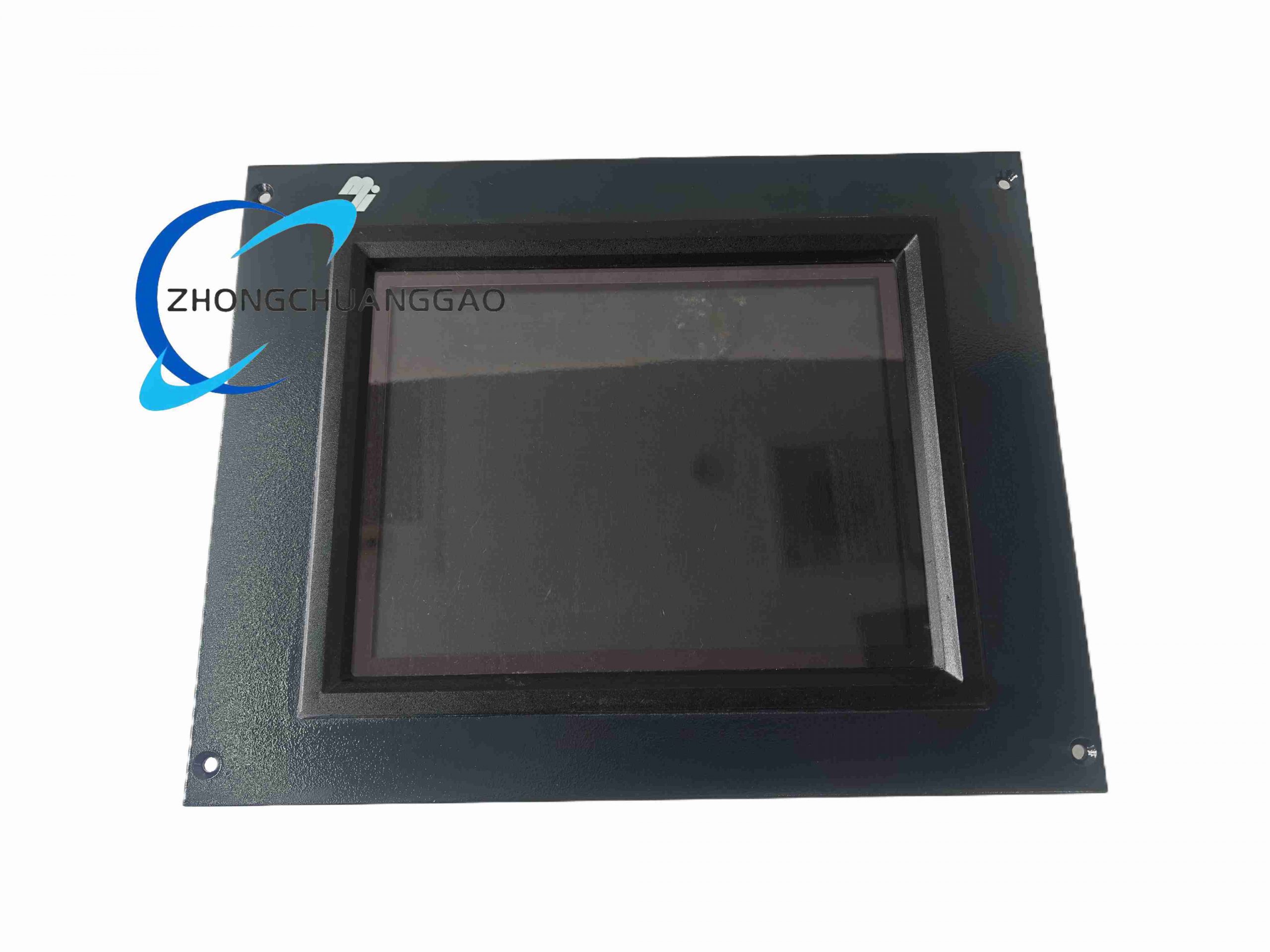

Fanless embedded human-machine interface unit designed for real-time process visualization, parameter adjustment, alarm acknowledgement, and equipment recipe management in industrial automation control systems. The -000 suffix designates the base DC-powered front-panel flush-mount variant without factory pre-installed expansion communication modules.
Technical Specifications
- Display Diagonal Size: 10.1 inch widescreen TFT LCD
- Native Screen Resolution: 1280 × 800 pixel WXGA
- Touch Input Technology: Analog resistive single-touch industrial-grade touchscreen
- Backlight Lifespan: Minimum 50,000 hours continuous operation
- Rated Supply Voltage: 24 VDC nominal operating range 10–30 VDC
- Internal Processing Unit: ARM Cortex-A8 industrial single-core processor
- System Memory: 1 GB DDR3 RAM, 8 GB industrial-grade flash storage
- Onboard Communication Interfaces: RS232, RS485, 10/100 Mbps Ethernet, USB 2.0 Host Port
- Operating Temperature Range: -20 °C to +60 °C full-load continuous operation
- Storage Temperature Range: -40 °C to +85 °C
- Front Panel Environmental Rating: IP65 dust/water splash protection
- Overall External Dimensions (W×H×D): 260 mm × 200 mm × 50 mm
Material Composition
- Front Bezel: Brushed stainless steel 304 anti-corrosion alloy
- Touch Screen Overlay: Hardened scratch-resistant glass with anti-fingerprint coating
- Internal Chassis: Aluminum alloy extrusion passive heat sink frame
- Rear Enclosure: ABS flame-retardant impact-resistant plastic housing
- Terminal Connectors: Gold-plated copper contact pins with strain relief cable clamps
Structural Characteristics
- Flush front panel cabinet cutout mounting design with integrated EPDM foam sealing gasket
- Fully fanless passive convection cooling architecture eliminating moving mechanical components
- Dual expansion rear slots for pluggable industrial protocol communication modules
- External PC card memory slot for offline project recipe storage and program download
- Separate isolated terminal blocks for power supply and communication signal wiring
Working Principle
The embedded ARM processor executes HMI visualization project files compiled via Micro Innovation GALILEO configuration software. Onboard serial and Ethernet communication buses establish bidirectional real-time data exchange with PLC, motion controllers, and sensor acquisition units. Resistive touchscreen analog voltage coordinate signals are digitized and translated into user input commands for parameter modification, equipment start/stop control, and alarm reset operations. Passive aluminum heat sink architecture dissipates internal circuit heat without cooling fans to eliminate dust ingress failure points.
Function & Feature Highlights
- Native support for major industrial communication protocols: Modbus RTU/TCP, Profibus DP, OPC UA, CANopen
- Offline project backup and recipe storage via external PC memory card slot
- Built-in industrial alarm logging system with timestamp and fault history archive
- Multi-page customizable visualization screens supporting real-time trend curve plotting
- Isolated serial communication ports eliminating ground loop signal distortion
- IP65 front panel rating for direct installation on machine production line equipment
Core Advantages
- Fanless design achieves zero mechanical wear points, reducing maintenance downtime in continuous production environments
- Wide 10–30 VDC power input tolerance compatible with unstable factory 24 VDC cabinet power
- Stainless steel front panel resists chemical splashes, oil mist, and mechanical surface scratches
- Dual expansion communication slots support protocol customization for heterogeneous multi-brand control system integration
- -20 °C low-temperature operating capability for unheated warehouse and outdoor industrial equipment cabinets
Applicable Industries
Automated packaging production lines, CNC machine tool operator interfaces, water treatment DCS monitoring systems, food & beverage manufacturing control, solar photovoltaic equipment control, pharmaceutical batch processing systems, material handling conveyor automation
Installation Requirements
- Standard cabinet cutout dimension: 242 mm × 182 mm for flush front panel mounting
- Four rear threaded mounting clamps must be evenly torqued to 0.4 N·m to compress the IP65 sealing gasket uniformly
- Minimum 40 mm rear clearance required for passive heat sink airflow circulation
- Separate shielded cable routing for Ethernet communication wiring to avoid variable frequency drive electromagnetic interference
- External 24 VDC power supply must include overvoltage protection circuit rated at maximum 30 VDC cutoff
Usage Precautions
- Front panel high-pressure water jet washing prohibited; IP65 rating only protects against low-pressure splash and dust ingress
- Touchscreen surface must be cleaned only with lint-free microfiber cloth and isopropanol; abrasive cleaners scratch the hardened glass overlay
- Operating ambient humidity must remain non-condensing; condensation under front panel gasket causes touch input drift and circuit corrosion
- USB host port only accepts industrial-grade USB memory sticks; consumer high-power USB devices overload internal power regulation circuits
- Avoid installation within 1 meter of high-power welding equipment to prevent electromagnetic signal communication dropout
