Product Short Description
Product Introduction

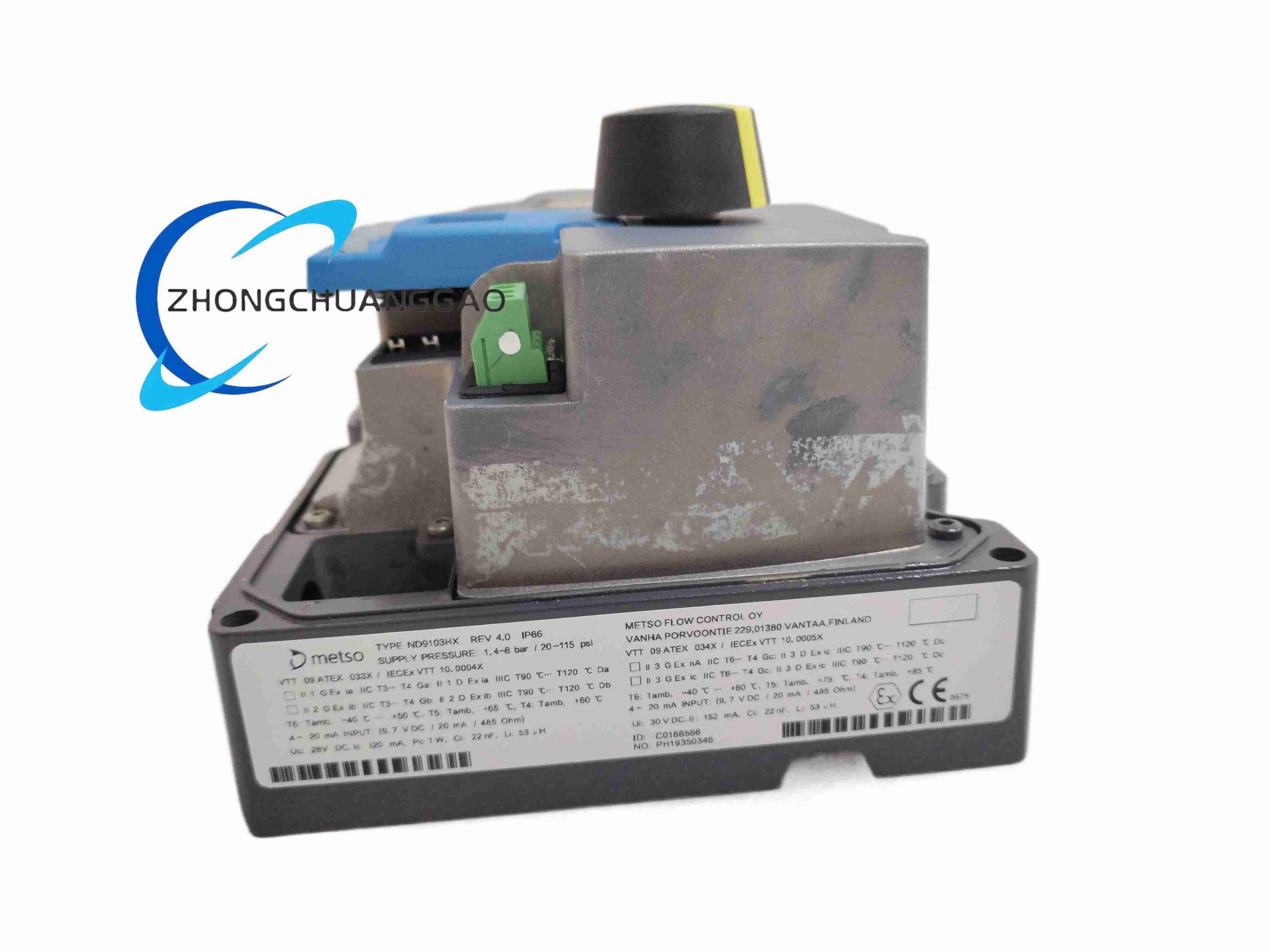

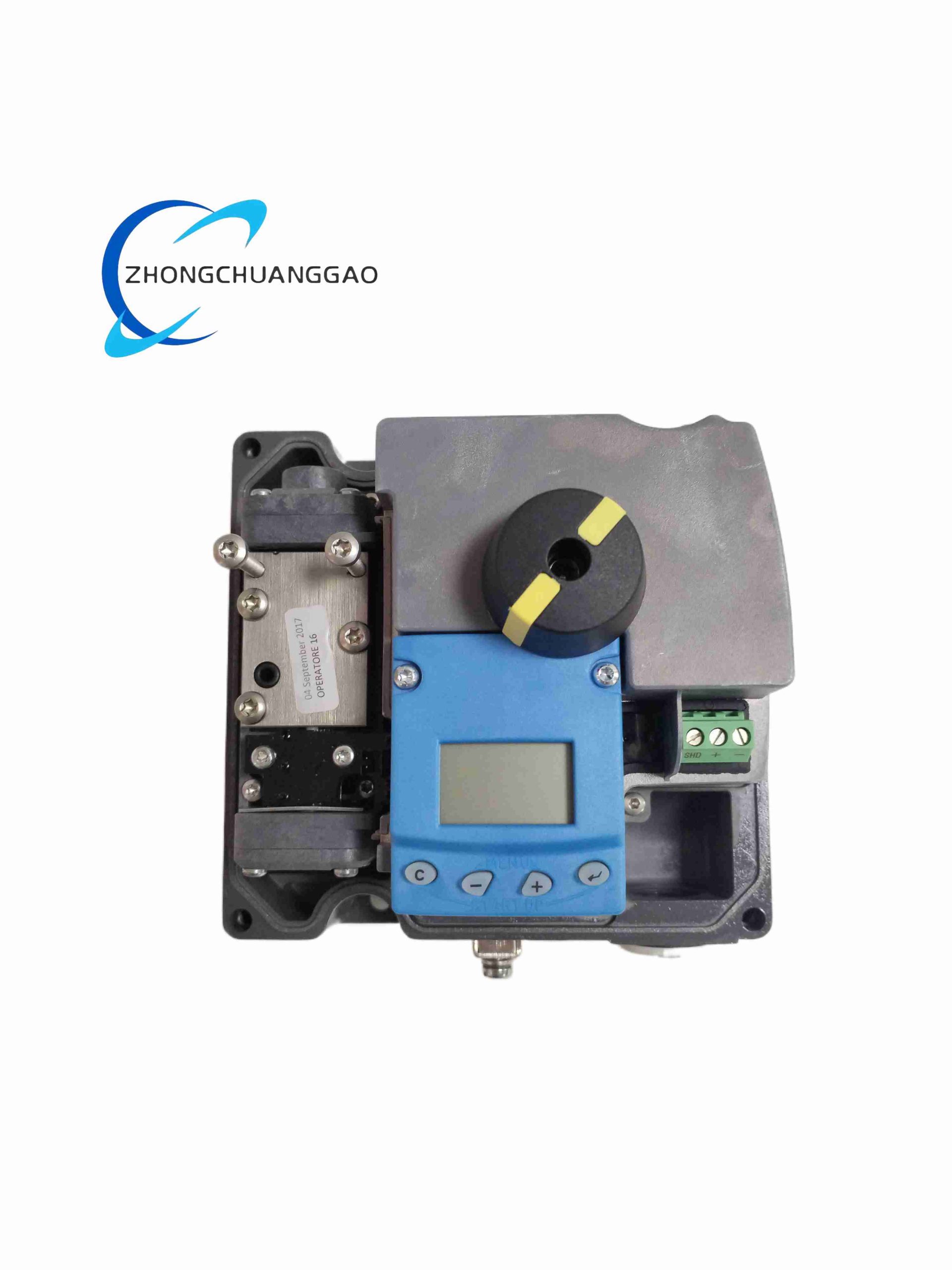

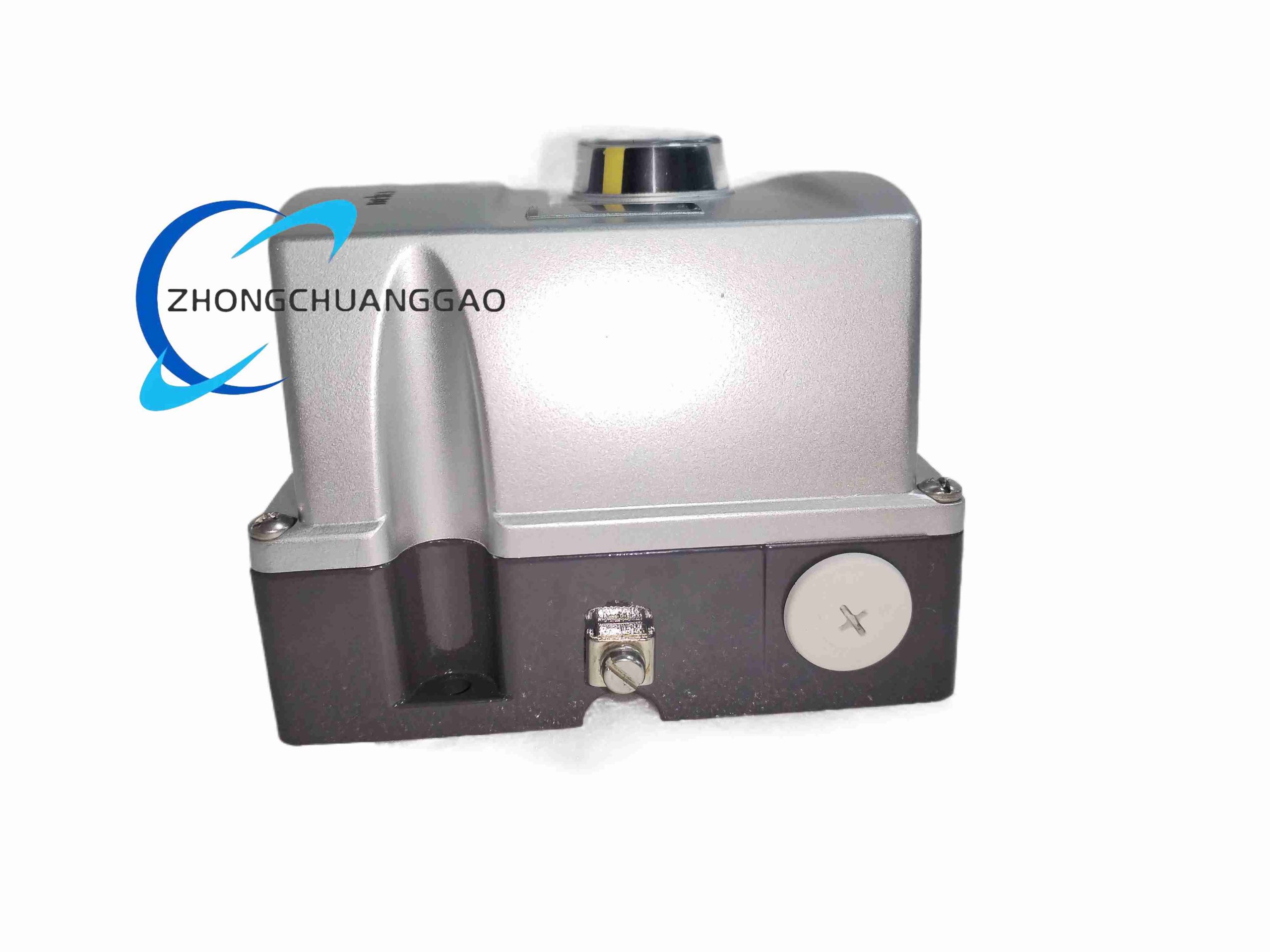

ND9103HX is high-end smart valve positioner under ND9000 series originally launched by Metso Neles (now Valmet). It acts as the interface between DCS control system and pneumatic valve actuator, converting electrical control signals into precise pneumatic output to adjust valve opening. This variant supports intrinsic safety explosion protection and HART communication for hazardous industrial process environments.
Description
Technical Specifications
- Input control signal: 4–20 mA DC
- Communication Protocol: HART 7
- Positioning accuracy: ±0.1% full stroke
- Repeatability: ±0.05% full stroke
- Air supply connection: G1/4 internal thread
- Working air pressure range: 2–6 bar
- Ambient temperature: -40°C ~ +85°C
- Enclosure protection grade: IP66 / NEMA 4X
- Safety certification: SIL 2, Ex ia IIC T6 for Zone 0/1/2 hazardous areas
- Applicable stroke: linear actuator 10–120 mm; rotary actuator 45°–95°
Function Features
- Automatic stroke calibration, one-button auto-setup without manual potentiometer adjustment
- Rich online diagnostic functions: valve friction monitoring, actuator leakage detection, stroke deviation alarm
- Local LCD display and operation buttons for on-site parameter configuration
- Supports remote parameter access via HART communicator and Fieldcare asset management software
- Adaptive control algorithm automatically compensates valve wear and process disturbance
- Low air consumption design reduces long-term plant compressed air energy cost
- Supports anti-vibration operation under industrial pipeline vibration environment
Application Scenarios
Oil & gas refining, petrochemical plant, chemical processing, power plant thermal control, pulp and paper industry, water & wastewater treatment, hazardous area flow, pressure, temperature and liquid level closed-loop control loops. Suitable for globe valve, ball valve, butterfly valve and all kinds of pneumatic control valves.
Material Composition
Die-cast aluminum alloy housing with anti-corrosion polyurethane coating; stainless steel pneumatic valve components; high stability piezoelectric pilot valve unit; industrial grade LCD module; flameproof insulation sealing parts; brass air pipe connectors.
Structural Characteristics
Integrated compact housing; split internal layout: pneumatic execution unit and electronic control unit isolated; universal mounting bracket interface matching Neles and most mainstream actuator brands; external local operation interface; internal modular structure, allowing partial component replacement without integral disassembly from actuator.
Working Principle
The positioner receives 4–20mA setpoint signal from upper control system. The built-in position sensor collects real-time valve stem position signal. The microcontroller compares measured actual position with target value, outputs adjustment signal to pilot valve, controls air inflow and exhaust of pneumatic actuator until valve position matches set value. HART circuit realizes two-way digital communication for data upload and remote configuration.
Installation Requirements
Install on top of pneumatic actuator according to standard VDI/VDE 3845 mounting standard; ensure mounting bracket rigidity to avoid vibration displacement; connect clean dry instrument air without oil and water; signal cable use shielded twisted pair cable; reserve operation space for local buttons and display.
Usage Notes
Instrument air must be equipped with filter pressure reducing valve; regularly drain water from air pipeline; avoid strong impact on housing; do not disassemble sealed explosion-proof structure arbitrarily; calibrate valve stroke after actuator maintenance; prevent corrosive process gas from entering positioner internal cavity.
