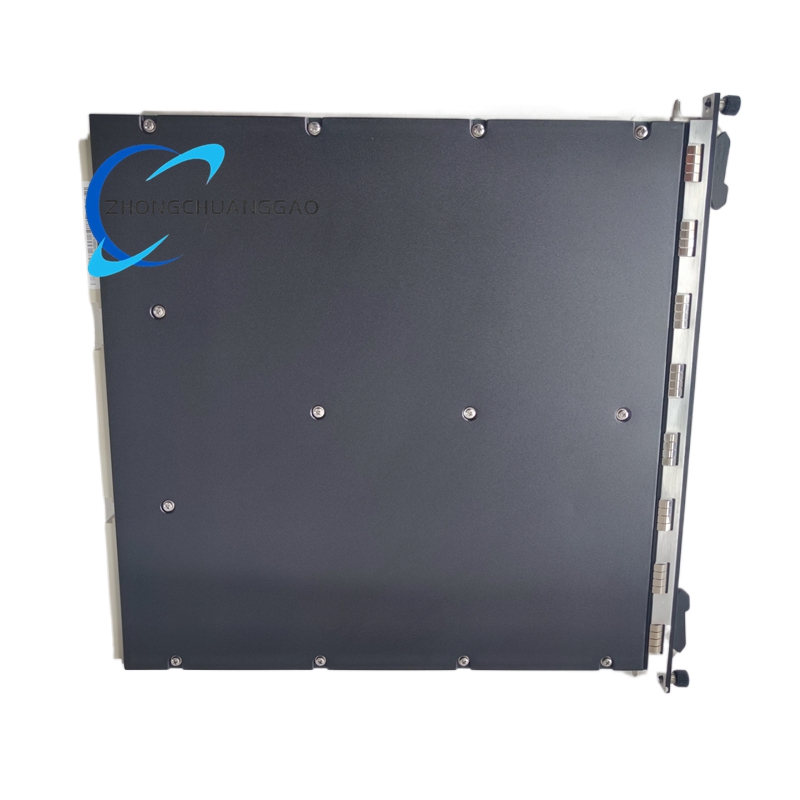

Description
Technical Specifications:
| Parameter | Value |
|---|---|
| Channel Count | 16 channels |
| Input Signal Types | 4–20 mA, 0–20 mA, 0–10V DC (configurable per channel group) |
| Resolution | 16-bit A/D |
| Accuracy | ±0.05% of span (typical) |
| Isolation | 250V DC channel-to-ground, 500V DC channel-to-channel |
| Sampling Rate | 100 ms per channel (all channels) |
| Power | 24V DC from DNA backplane |
| Communication | DNA bus |
| Operating Temp | 0°C to +60°C |
| Certifications | CE, ATEX Zone 2 (standard version) |
Functional Features:
- 3 input types selectable — flexible field wiring
- Per-channel burnout detection
- Programmable filter — adjustable damping (0.1–10 seconds)
- Cold junction compensation for thermocouple modules (if applicable variant)
- Diagnostic LEDs — channel status, bus communication, power
Applicable Industries: Same as AI8H — Pulp & Paper, Mining, Power, Oil & Gas
Key Advantage over AI8H: Double channel density (16 vs 8) in same physical footprint
