Product Short Description

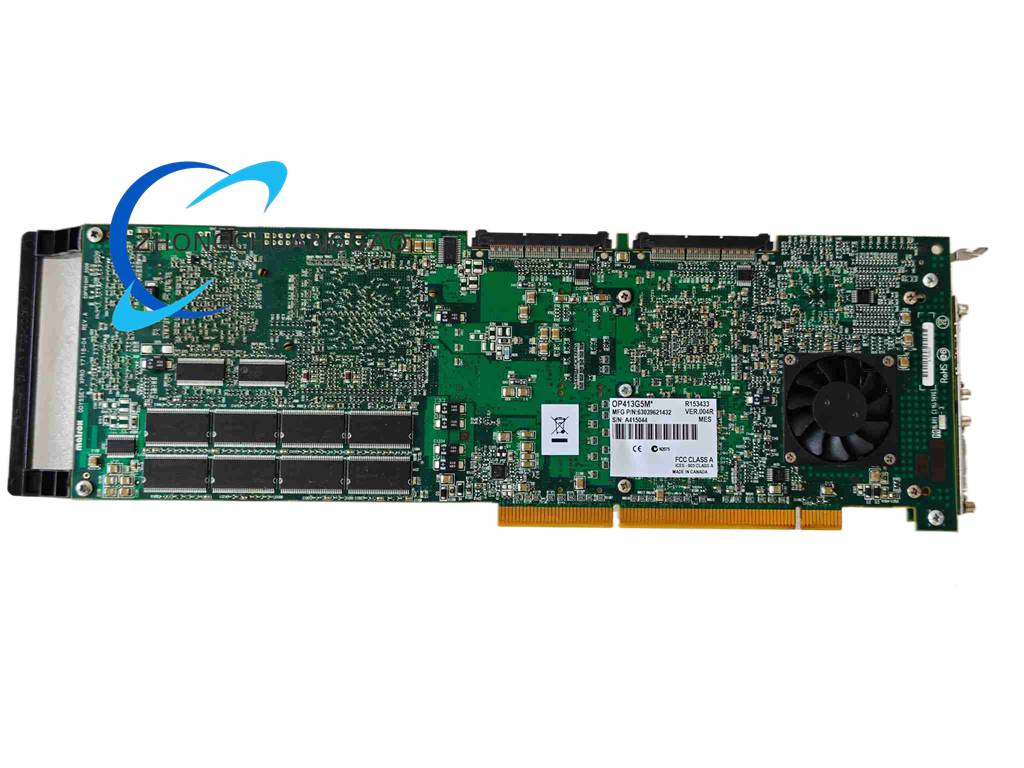

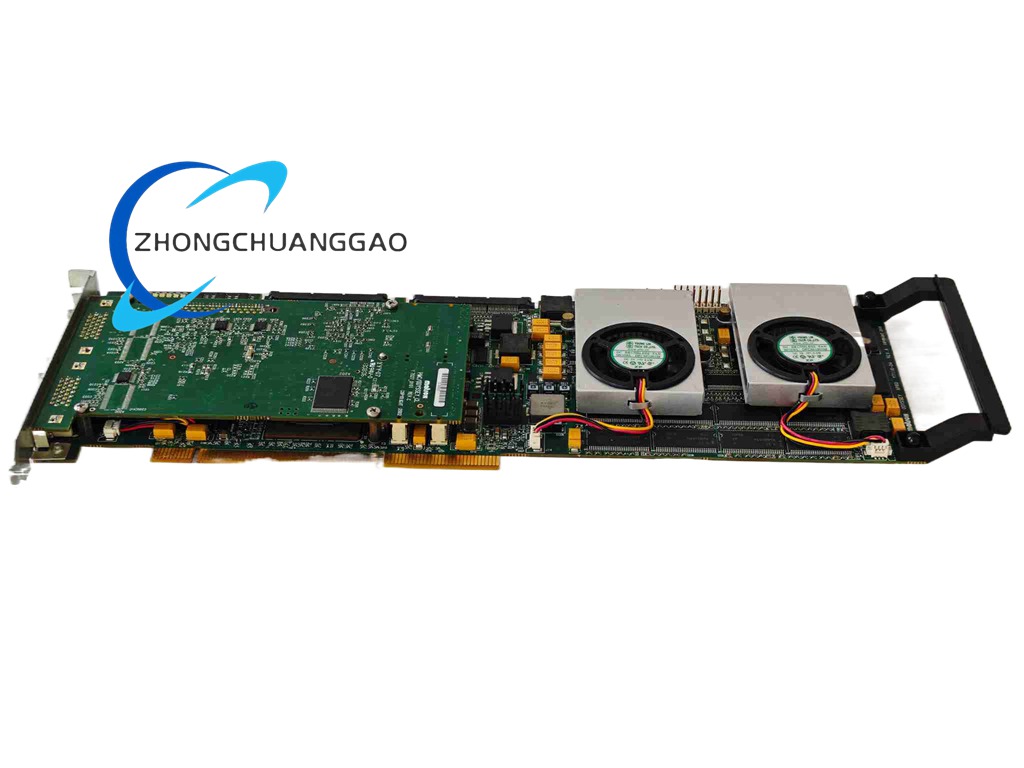

Product Brief: Single-channel industrial image capture board within Y7116 series, applied for low-to-medium speed machine vision image collection and signal processing.
Technical Specifications
- Bus Interface: PCI/PCIe industrial expansion bus
Description
- Operating Temperature: 0 °C ~ +60 °C
- Input Channel: Single channel video input
- Signal Type: Analog industrial video signal
- Onboard Buffer: Dedicated frame memory for image caching
- Mechanical Dimension: Standard half-length industrial board size
Function Features
- Stable analog video signal acquisition and signal conditioning
- Real-time video frame extraction and data forwarding
- External trigger input interface
- Support secondary development via MIL software toolkit
Application Scenarios: Product surface inspection, surveillance visual systems, small automation equipment vision detection
Material Composition: Multi-layer industrial PCB, signal processing IC, metal mounting baffle
Structural Features: Compact half-length board layout, single video input connector on rear panel
Working Principle: Collect analog video signals, convert analog signals into digital image frames, cache frames and transmit data to industrial host
Installation Requirements: Fit standard industrial PCI/PCIe slot; maintain minimum 20mm clearance around the board for heat dissipation
Usage Notes
- Prevent electromagnetic interference by separating power cables and signal cables
- Regularly inspect connector looseness in long-term operation
- Only use Matrox official firmware for upgrades
