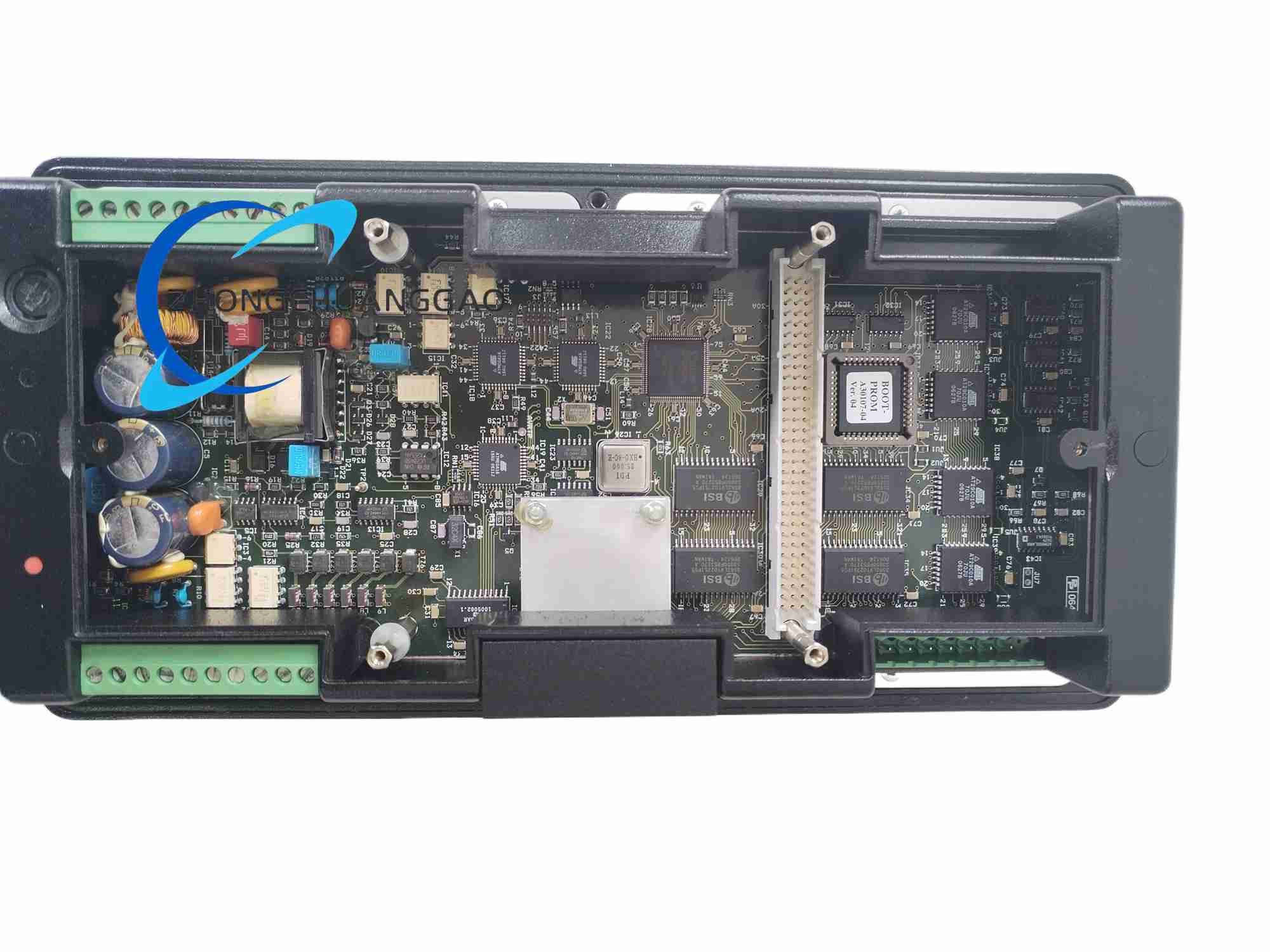

MAS PD5010-LCD

Core Technical Performance Parameters

1. LCD Display Specs
   • Display Type: Monochrome graphic dot matrix LCD screen
   • Dot Matrix Resolution: 256 × 64 pixel graphic display area
   • Backlight Mode: White LED constant current backlight, adjustable backlight brightness through key menu setting
   • Display Refresh Rate: 5Hz minimum real-time parameter refresh cycle
2. Membrane Keyboard Specs
   • Total Physical Membrane Keys: 42 functional keys including numeric input keys 0–9, up/down/left/right navigation keys, confirm, cancel, function shortcut keys
   • Key Press Service Life: ≥1,000,000 times mechanical press cycle per membrane key
   • Key Input Response Speed: ≤100ms key press signal sampling response time
3. Communication Bus Specs
   • Standard Serial Communication Interface: Isolated RS485 bus port
   • Supported Communication Protocols: P-NET fieldbus (primary matching protocol), Modbus RTU, ASCII custom serial communication protocol
   • Maximum Communication Cable Transmission Distance: 1200m with shielded twisted pair cable
   • Communication Baud Rate Adjustable Range: 1200bps / 2400bps / 4800bps / 9600bps / 19200bps
4. Electrical Power Supply Specs
   • Nominal Operating Input Voltage: DC 24V industrial standard control power supply
   • Allowable Input Voltage Fluctuation Range: DC 18V–30V continuous stable operation
   • Rated Operating Power Consumption: 3.5W typical full backlight brightness operating power
5. Environmental & Mechanical Specs
   • Operating Temperature Range: -10°C ~ +55°C indoor control cabinet environment only
   • Storage Temperature Range: -20°C ~ +70°C
   • Protection Grade: IP40 front panel dust-proof rating; IP20 rear wiring terminal area rating
   • Panel Mounting Dimension: Standard cabinet embedded panel installation cutout size 210mm(W) × 110mm(H)
   • Net Weight: 0.68kg complete terminal set

Function & Feature Highlights

1. Dedicated P-NET Fieldbus Matching Design: Optimized built-in P-NET protocol communication stack, realize seamless data interconnection with all MAS series P-NET bus control modules and field monitoring equipment, become standard local operation terminal of P-NET industrial monitoring system
2. High-Resolution 256×64 Graphic LCD Display: Monochrome graphic dot matrix screen supports multi-line real-time industrial parameter simultaneous display, text alarm prompt, numerical curve trend simple drawing, clearly present complex process control system operating state data
3. Full-Function 42-Key Membrane Matrix Keyboard: Complete numeric input, menu navigation, parameter modification, equipment control shortcut keys integrated on front panel membrane key layer, on-site operators can complete all system operation work without external mouse or touch input device
4. Multi-Protocol Serial Communication Compatibility: Besides native P-NET bus support, built-in Modbus RTU and ASCII protocol conversion function, can be connected with third-party brand PLC, power monitoring instruments and sensor signal acquisition modules through RS485 bus to expand system compatibility
5. Built-In System Parameter Storage Memory: Non-volatile Flash memory chip stores user-modified operating parameters, alarm threshold values and communication protocol configuration parameters; stored data will not be lost after terminal power-off completely
6. Front Panel IP40 Dust-Proof Integrated Structure: Integrated one-piece front panel with membrane key layer and LCD screen embedded, sealed dust-proof edge rubber strip between front panel and cabinet mounting cutout, effectively prevent cabinet internal metal dust and debris entering terminal internal circuit components
7. Real-Time Fault Alarm Information Storage & Query: Automatically record all equipment fault alarm events with timestamp, store up to 200 historical fault records inside Flash memory; operators can enter dedicated fault log menu through membrane keys to view historical fault data for post-failure equipment maintenance analysis
