Product Short Description

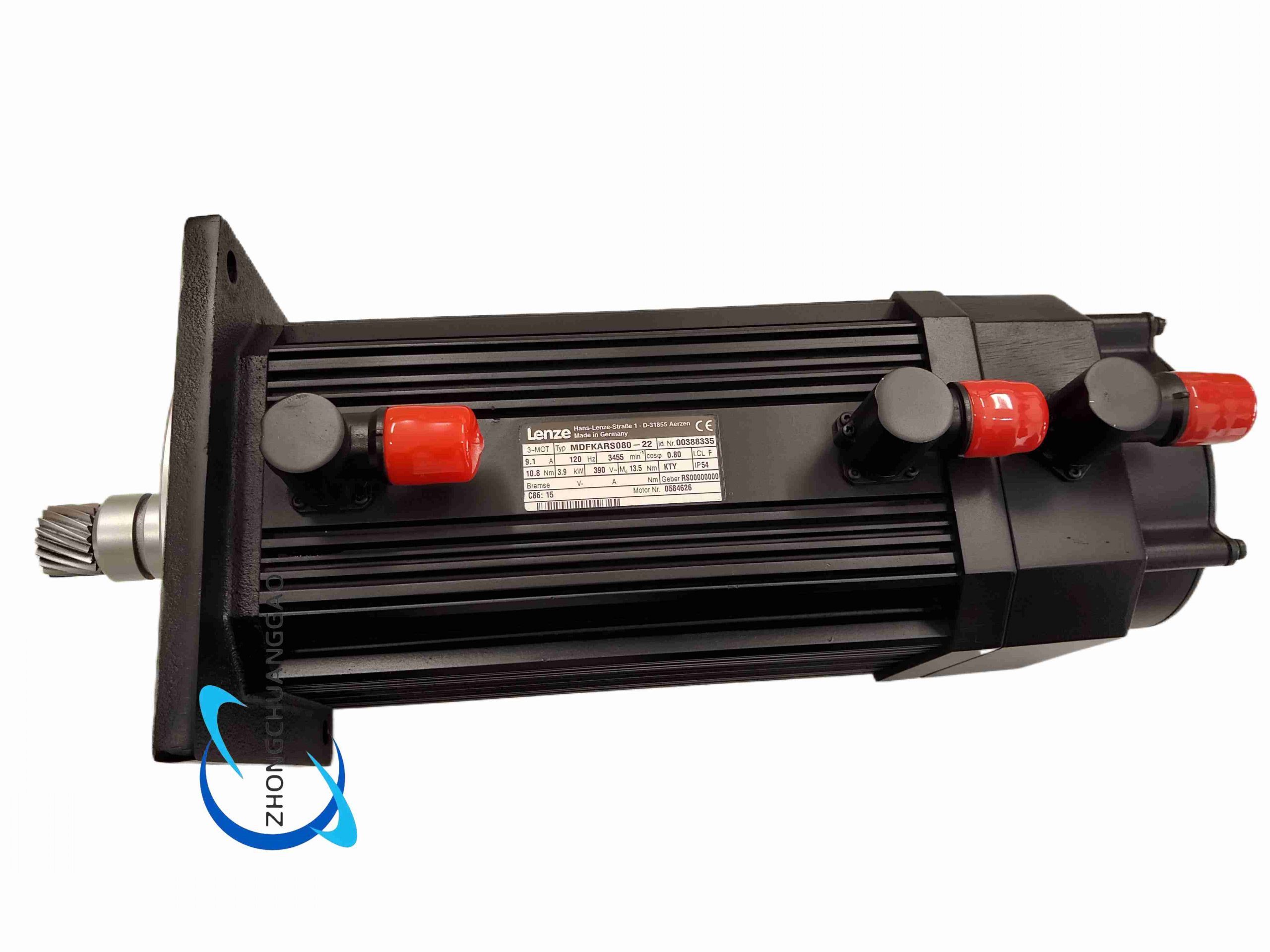

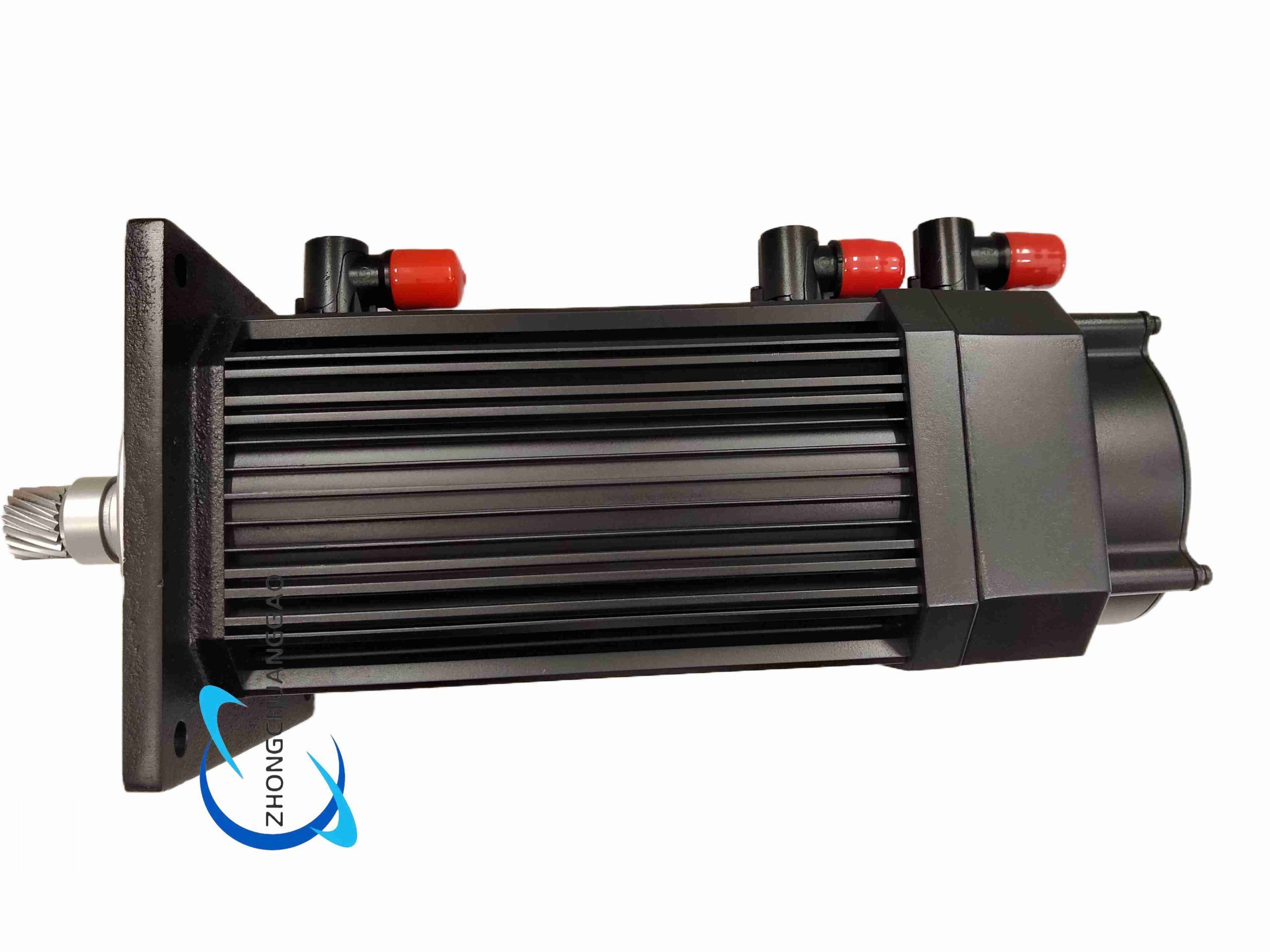

Product Name: Synchronous Servo Motor
Product Description: High-performance permanent magnet synchronous servo motor designed for high dynamic motion control in demanding industrial automation applications.
Technical Specifications: Rated power 3.9kW, rated voltage 390V, rated current 9.1A, rated torque 10.8Nm, stall torque 13.5Nm, rated speed 3455rpm, rated frequency 120Hz, power factor 0.80, insulation class F, protection class IP54.
Description
Functional Features: High dynamic response, integrated brake chopper, advanced motor control algorithm, built-in 4656 EZ brake for safety holding, robust industrial design.
Application Scenarios: CNC machine tools, automated production lines, material handling equipment, heavy-duty positioning systems, packaging machinery.
Performance Parameters: Fast acceleration and deceleration, stable speed regulation, low torque ripple, 150% overload capacity for 60 seconds.
Material Composition: High-strength cast aluminum housing, rare earth permanent magnet rotor, high-grade insulated winding wire, precision bearing assembly.
Structural Features: Flange mounting structure, external fan cooling system, integrated holding brake, rear-mounted feedback encoder.
Working Principle: Permanent magnet synchronous motor principle, closed-loop position and speed control realized through encoder feedback signal matching with servo drive.
Installation Requirements: Flange mounting with standard bolts, maintain ventilation clearance around housing, align shaft concentricity with load, fix power and signal connectors firmly.
Notes for Use: Avoid exposure to corrosive gas, oil mist and heavy dust; control ambient temperature within specified range; inspect bearing and fan status regularly; do not operate beyond rated torque and speed.
