Product Short Description

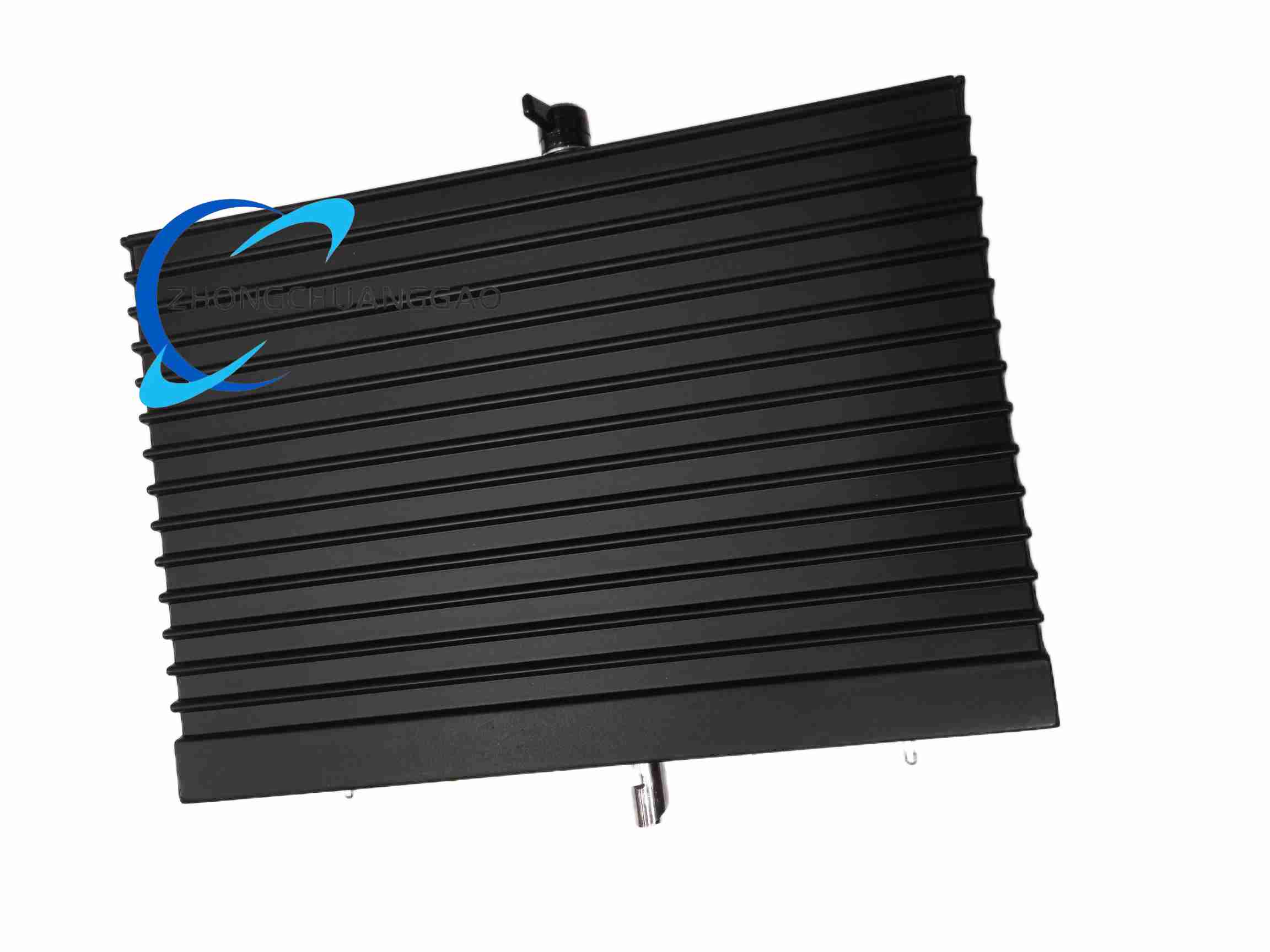

Product Name: TRICONEX EPI3382 Triple Modular Redundant (TMR) Communication Interface / Main Processor Module
Product Introduction: The TRICONEX EPI3382 is a core module of Schneider Electric’s Tricon Safety Instrumented System (SIS). Built on a true Triple Modular Redundant (TMR) architecture with hardware-based 2-out-of-3 voting, it delivers fail-safe, deterministic control for critical applications in oil & gas, power, and chemical processing.
Description
Technical Specifications:
- Architecture: Triple Modular Redundant (TMR) with 2oo3 voting
- Safety Certification: IEC 61508 SIL 3
- Power Supply: 24 VDC via Tricon RIO backplane
- Power Consumption: approx. 3.2 W
- Operating Temperature: 0°C to +60°C
- Protection Class: IP20 (installed inside control cabinet)
- Certifications: TÜV Rheinland, ATEX, IECEx, FM, CSA, GOST-R
- Communication: 10 Mbps fiber-optic dual redundant ring (A/B physically separated channels)
- Triplicated I/O bus: 375 kbps between I/O modules and main processors
- Communication bus: 2 Mbps between main processors and communication modules
Functional Features:
- Dual fiber-optic redundant ring topology — any single break does not affect communication continuity
- Native TMR communication synchronization with 2oo3 majority voting
- Deep integration with Tricon ecosystem (auto-recognized in Triconex Application Suite or Enhanced Diagnostic Monitor)
- High-speed deterministic transmission for high-speed digital signals (e.g., compressor trip) and high-precision analog (e.g., vibration monitoring)
- EDM software online diagnostics support
- Eliminates single point of failure risk in distributed safety system communications
Application Scenarios: Large-scale SIS construction in oil & gas, petrochemical, and power industries. Typical applications: ESD (Emergency Shutdown), FGS (Fire & Gas System), BMS (Burner Management System), boiler MFT, reactor high-pressure interlock, offshore platform wellhead control.
Working Principle: Three independent communication channels transmit data in parallel; a hardware-based 2oo3 voting mechanism eliminates transient interference or single-channel errors, ensuring data integrity. Any single channel fault or fiber break does not interrupt system communication.
Installation Requirements: Installed in Tricon v10/v11 main chassis (not compatible with Triconex Trident). Each Tricon system requires 3 EPI3382 modules for triple redundant configuration. Fiber-optic A/B ring cabling required.
Usage Notes: Must be programmed and diagnosed using TriStation 1131 software. Mechanical keying prevents improper slot installation. The module is the certified heart of the Tricon SIS — proper configuration and redundant deployment are essential for achieving SIL 3 certification.
