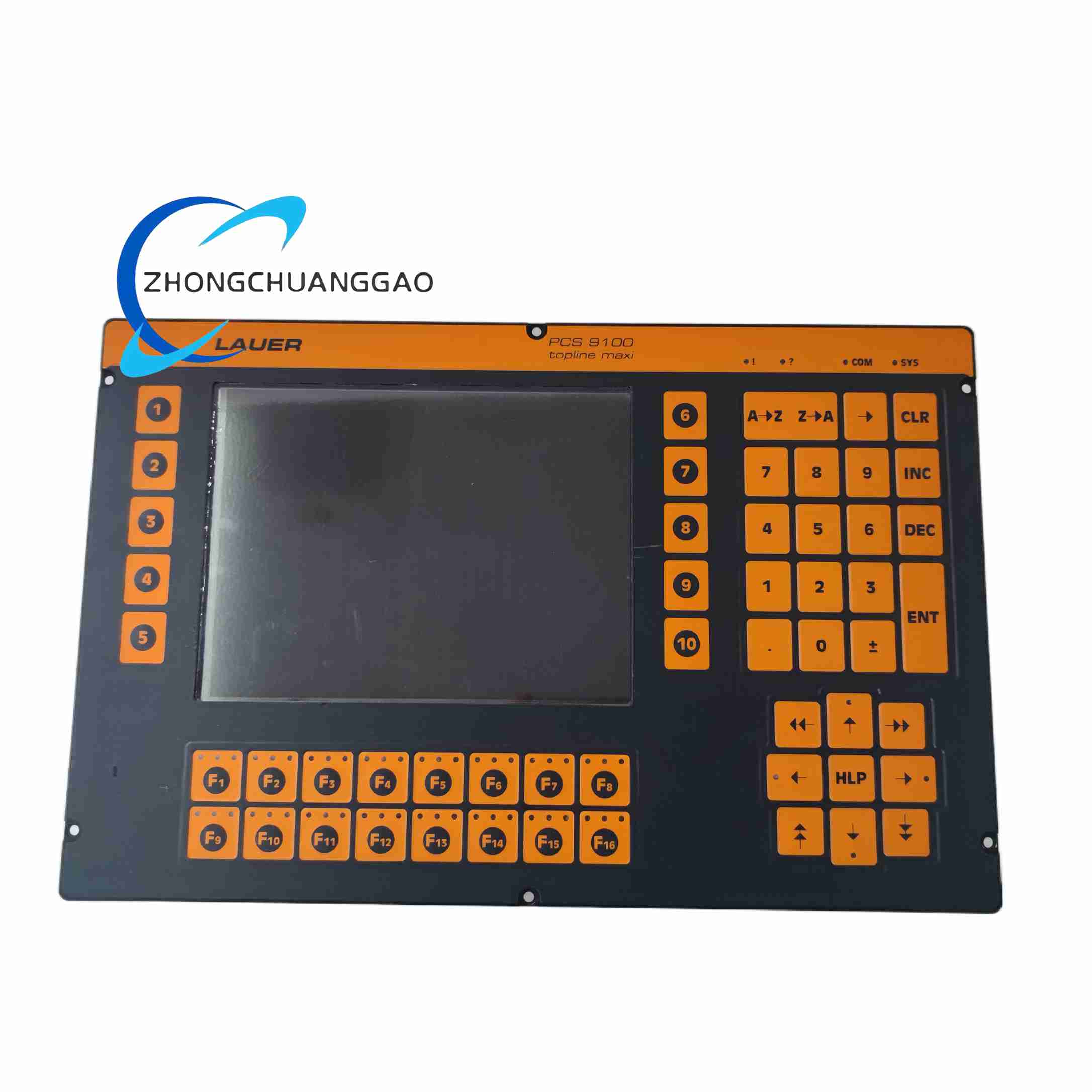

LAUER PCS9100

Display Module

• Display Type: 10.4-inch industrial TFT color LCD screen
• Physical Display Resolution: 800 × 600 SVGA fixed resolution
• Display Color Depth: 24-bit true color, supporting 16.7 million display colors
• Standard Brightness: 400 cd/m² adjustable brightness via software, 10-level brightness control
• Viewing Angle: Horizontal 170°, Vertical 160° wide industrial viewing angle
• Backlight Type: Long-life LED backlight, rated backlight service life of 50,000 hours under continuous operation

Touch Input Module

• Touch Type: 4-wire resistive industrial touch panel
• Touch Activation Pressure: 10g to 100g adjustable touch trigger threshold
• Touch Response Speed: ≤15ms touch signal response delay
• Touch Service Life: Over 10 million single-point touch operations without touch failure
• Anti-interference Performance: Built-in touch signal digital filter to eliminate industrial electromagnetic interference touch mis-trigger

Industrial Communication Interfaces

• Serial Communication Ports: 2 × RS232 serial ports, 1 × RS485 isolated serial port
• Supported Serial Industrial Protocols: Modbus RTU, Modbus ASCII, Siemens MPI, Profibus DP slave, Omron Host Link, Mitsubishi MC Protocol
• Ethernet Communication Port: 1 × 10/100 Mbps auto-adaptive industrial isolated Ethernet RJ45 interface
• Supported Ethernet Industrial Protocols: Modbus TCP/IP, Siemens S7 Ethernet, OPC UA client, HTTP industrial data upload
• Expansion Interface: 1 × USB 2.0 Host port for program firmware upgrade, recipe data import and export, USB mouse and U disk external storage access

Onboard Control & Storage Subsystem

• Main Processing Chip: Industrial-grade ARM Cortex-A9 dual-core high-speed processor, main frequency 800 MHz
• Onboard System Flash Memory: 256 MB non-volatile industrial flash storage for HMI operating system, project configuration files and alarm log records
• Onboard Runtime RAM: 512 MB industrial DDR3 high-speed running memory for real-time data storage and screen picture buffer
• Recipe Storage Capacity: Supports up to 10,000 groups of independent equipment parameter recipe storage without external storage media
• Alarm Log Storage: Automatically store 100,000 pieces of historical equipment alarm information with accurate time stamp recording

Power Supply Standard

• Rated Input Power Supply Range: DC 24 V wide voltage input, allowable voltage fluctuation range DC 18 V ~ DC 30 V
• Rated Total Power Consumption: 28 W maximum full-load power consumption
• Isolation Protection: Internal power input built-in 2kVrms surge isolation circuit, reverse connection protection, overvoltage protection and overcurrent short-circuit automatic cut-off protection

10.4 Functional Features

1. 10.4-inch high-brightness industrial TFT display with wide viewing angle LED backlight, maintaining clear display effect under strong factory ambient light; adjustable screen brightness reduces power consumption during long-term unattended equipment operation.
2. 4-wire resistive industrial touch screen supports operation with industrial gloves, metal stylus and bare hands, adapting to factory staff wearing labor protection gloves for on-site parameter adjustment operations.
3. Rich multi-type industrial communication interfaces integrate serial RS232/RS485 and industrial Ethernet, compatible with mainstream PLC brands on the global industrial market, realizing seamless data exchange between HMI and PLC controllers, frequency converters, temperature control instruments and other field bus equipment.
4. Built-in independent ARM dual-core high-speed processing platform, independent operation of screen picture rendering, real-time data collection, alarm judgment and communication data parsing tasks without system lag or screen stuttering under multi-channel equipment data monitoring conditions.
5. Complete industrial data management functions, supporting equipment parameter recipe storage, real-time running data trend curve drawing, historical data automatic recording, equipment fault alarm real-time pop-up display and historical alarm query with time stamp.
6. USB external storage expansion function supports offline project program upgrade, mass import and export of equipment production recipe parameters, and offline backup of historical production and alarm data without connecting to upper computer configuration software.
7. Independent isolated communication circuit design for all serial ports and Ethernet ports, effectively eliminating ground loop interference caused by different ground potentials of on-site industrial equipment, preventing communication data loss and equipment offline faults caused by industrial electromagnetic noise.
8. Powerful built-in industrial configuration software function library, providing pre-configured special control components such as digital display, analog bar chart, real-time trend curve, button switch, multi-state indicator light, PID parameter adjustment panel, production counting module and fault alarm window, greatly shortening the project configuration development cycle.
9. Complete multi-level user authority management system, supporting custom creation of multiple user groups with independent operation authority division; different login users can only access the equipment operation screens and parameter adjustment functions within their authorized scope, avoiding misoperation of key equipment parameters by untrained on-site staff.
10. Support automatic screen saver and timed backlight turn-off functions, automatically turn off LCD backlight after a set period of no touch operation to reduce screen power consumption and extend the service life of the LED backlight module.

10.5 Application Scenarios

• Automated mechanical processing equipment: CNC lathes, milling machines, machining centers, stamping machines, injection molding machines on-site operation monitoring and parameter adjustment terminals
• Automotive assembly production line: Multi-station conveyor belt equipment running status real-time display, production quantity counting, assembly fault alarm pop-up prompt
• Food and beverage packaging production line: Packaging machine speed adjustment, temperature control parameter setting, batch production data real-time recording and query
• Water treatment and environmental protection equipment: Sewage treatment tank water level, PH value, pump running status monitoring, automatic dosing equipment parameter adjustment
• Heating, ventilation and air conditioning industrial central control system: Workshop temperature, humidity, air circulation fan running status centralized monitoring and automatic adjustment parameter setting
• Printing, textile and textile machinery production equipment: Equipment running speed, tension control parameters real-time adjustment, fabric defect alarm display
• Energy storage equipment and battery testing equipment: Battery charge and discharge voltage, current, temperature multi-channel data real-time curve display, test parameter batch recipe management
• Chemical factory small batch reaction kettle control terminal: Reaction temperature, pressure, stirring speed real-time monitoring, safety fault alarm interlock prompt

10.6 Performance Parameters (Typical under 25℃ Standard Working Temperature)

• Continuous Operating Ambient Temperature Range: 0 ℃ ~ 50 ℃ indoor industrial environment; optional low-temperature modified model supports -20 ℃ low-temperature startup
• Storage Temperature Range: -40 ℃ ~ 70 ℃
• Operating Ambient Relative Humidity: 10% ~ 90% non-condensing humidity environment
• Vibration Resistance Standard: IEC 60068-2-6 industrial vibration test standard, anti-vibration frequency range 10Hz ~ 150Hz
• Shock Resistance Standard: IEC 60068-2-27 industrial mechanical shock test standard, withstand 15g instantaneous mechanical shock
• Front Panel Protection Grade: IP65 dust-proof and water-proof protection rating, fully resistant to industrial dust splashing and liquid splashing on the front operation panel
• Rear Cabinet Installation Part Protection Grade: IP20 protection grade, preventing accidental contact of internal circuit components after installation in the control cabinet
• Maximum Continuous Uninterrupted Working Time: 8760 hours (1 full calendar year) of continuous operation without system crash, touch failure or communication disconnection

10.7 Material & Construction Composition

• Front Panel Shell: Die-cast aluminum alloy metal panel with matte anti-corrosion electrostatic spraying surface treatment; high mechanical hardness, scratch resistance, anti-rust and anti-corrosion performance for long-term industrial environment use
• LCD Touch Integrated Window: Ultra-thick industrial tempered glass surface cover plate with anti-fingerprint and anti-scratch coating; internal 4-wire resistive touch film layer tightly bonded to the LCD display screen
• Internal Main Circuit Substrate: Multi-layer FR-4 high-temperature resistant fire-resistant industrial printed circuit board; independent display drive ground plane, touch signal ground plane, communication isolation ground plane and main processor power supply ground plane to isolate different types of signal noise
• Core Processing Chips: ARM Cortex-A9 dual-core industrial main control processor chip, dedicated LCD display drive control chip, resistive touch signal acquisition processing chip, multi-protocol serial communication isolation conversion chip, industrial Ethernet physical layer transceiver chip
• Communication Interface Connectors: Metal shielded RS232/RS485 terminal block connectors, shielded RJ45 Ethernet metal connector, USB 2.0 metal shielded socket; all connectors equipped with EMI rubber sealing gaskets to suppress electromagnetic signal leakage
• Internal Storage Components: Industrial grade SLC NAND flash memory chip, wide temperature DDR3 running memory chip, long-life industrial button rechargeable lithium battery for real-time clock power supply after equipment power off
• Passive Electronic Components: Wide temperature low temperature drift metal film precision resistors, high withstand voltage low ESR industrial electrolytic capacitors, multi-stage ferrite magnetic bead EMI suppression components for all communication signal traces, surge absorption TVS diodes on power input and communication signal ports

10.8 Structural Characteristics

• Form Factor: Standard embedded panel mount industrial HMI, suitable for embedded installation inside industrial control cabinet door panel
• Overall Physical Dimensions: Panel outer frame width 282 mm, height 214 mm; cabinet embedded installation depth 48 mm ultra-thin rear cabinet structure, saving internal cabinet installation space
• Integrated Front Panel One-piece Sealing Design: Die-cast aluminum front frame and tempered glass window adopt integral silicone rubber sealing strip compression sealing structure to achieve IP65 front panel dust-proof and water-proof protection grade
• Internal Circuit Region Isolation Layout: Main processor and digital storage circuit area, analog touch signal acquisition circuit area, isolated serial/Ethernet communication circuit area and LCD high-speed display drive circuit area are separated by continuous copper ground isolation guard rings on PCB to eliminate crosstalk interference between different signal types
• Passive Convection Heat Dissipation Structure: No built-in cooling fan; the rear aluminum alloy metal shell of the whole machine is designed with dense heat dissipation rib structure, and high-density copper thermal vias are laid under high-power main control and display drive chips to realize passive natural convection heat dissipation, eliminating fan failure dust accumulation hidden danger
• Vibration Suppression Installation Structure: The four corners of the aluminum alloy front panel are equipped with elastic rubber anti-vibration gaskets for embedded cabinet installation, which can absorb mechanical vibration transmitted from the production line equipment to avoid internal circuit solder joint loosening caused by long-term vibration
• Rear Wiring Classification Partition Layout: The rear of the whole machine divides power supply wiring terminals, serial communication wiring terminals, Ethernet and USB expansion interfaces into independent separated wiring areas, avoiding messy wiring crossing and signal interference between power lines and communication signal lines

10.9 Working Principle

1. Power Supply Input and Isolation Protection Stage: External DC 24V industrial power supply is input into the internal power supply isolation circuit through the rear power terminal block; multi-stage surge absorption, reverse connection, overvoltage and overcurrent protection circuits filter out power supply surge interference from the factory power grid; the isolation power module converts the single DC 24V input into multiple groups of stable isolated DC power supplies for the main control processor, LCD display drive circuit, touch signal acquisition circuit and each isolated communication module separately, completely isolating power supply noise between different functional circuits.
2. Touch Signal Acquisition and Processing Stage: Staff touches the front tempered glass touch panel; the internal 4-wire resistive touch film generates voltage coordinate change signals corresponding to the touch position; the dedicated touch acquisition chip collects the analog voltage coordinate signals in real time, filters out industrial electromagnetic interference noise through a built-in digital filter, converts analog coordinate signals into digital touch position coordinate data and transmits the coordinate data to the main ARM dual-core processor in real time; the main processor matches the touch coordinate position with the screen display button component position to trigger the corresponding equipment parameter adjustment, screen switching or fault reset operation instruction.
3. Main Control Processor Real-time Data Operation Logic: The ARM dual-core main processor runs the built-in HMI real-time operating system; one core is responsible for real-time communication data interaction with external PLC, frequency converter and other field equipment through serial ports or Ethernet, continuously collecting real-time operating data such as equipment temperature, pressure, speed and production counting values; the other core independently completes LCD screen picture rendering, real-time data refresh display, trend curve drawing, alarm signal judgment and user authority login verification tasks; all collected equipment real-time data is cached into onboard DDR3 running memory, and important recipe parameters and historical alarm data are automatically written into onboard industrial flash memory for permanent storage.
4. Multi-protocol Isolated Communication Data Transmission Stage: The main processor sends read and write data instructions to external industrial control equipment; the instruction data is transmitted to the isolated serial port or Ethernet communication chip; the built-in optocoupler isolation circuit completely isolates the internal HMI main control circuit ground and the external field equipment ground potential difference, eliminating ground loop interference; the communication chip converts the internal digital instruction data into standard Modbus, S7 and other industrial bus protocol signals and transmits them to external PLC equipment through shielded communication cables; after the external PLC returns equipment real-time data, the isolation communication chip receives the return data, filters out field electromagnetic interference signals and transmits the valid equipment data back to the main processor for screen display processing.
5. LCD Display Drive and Screen Picture Output Stage: The main processor renders the pre-configured equipment operation screen pictures, digital values, trend curves and alarm prompt windows according to real-time collected equipment data; the rendered 24-bit true color image data stream is transmitted to the dedicated LCD display drive chip; the drive chip converts digital image data into analog display driving signals and outputs the signals to the 10.4-inch TFT LCD screen to complete real-time screen picture refresh and data update display; the main processor adjusts the output backlight current of the display drive chip according to user set brightness parameters to realize adjustable screen brightness control.
6. USB External Storage Data Exchange Logic: When a U disk or USB mouse is inserted into the onboard USB 2.0 Host port, the main processor detects the USB external storage device in real time and automatically identifies the storage medium file system; users can execute offline project program upgrade, batch import and export of equipment recipe parameters and offline backup of historical alarm and production data through the touch screen operation menu; all data read and written with the USB storage medium are temporarily cached in onboard DDR3 running memory to avoid data loss caused by sudden USB plugging and unplugging during data transmission.
