Product Short Description

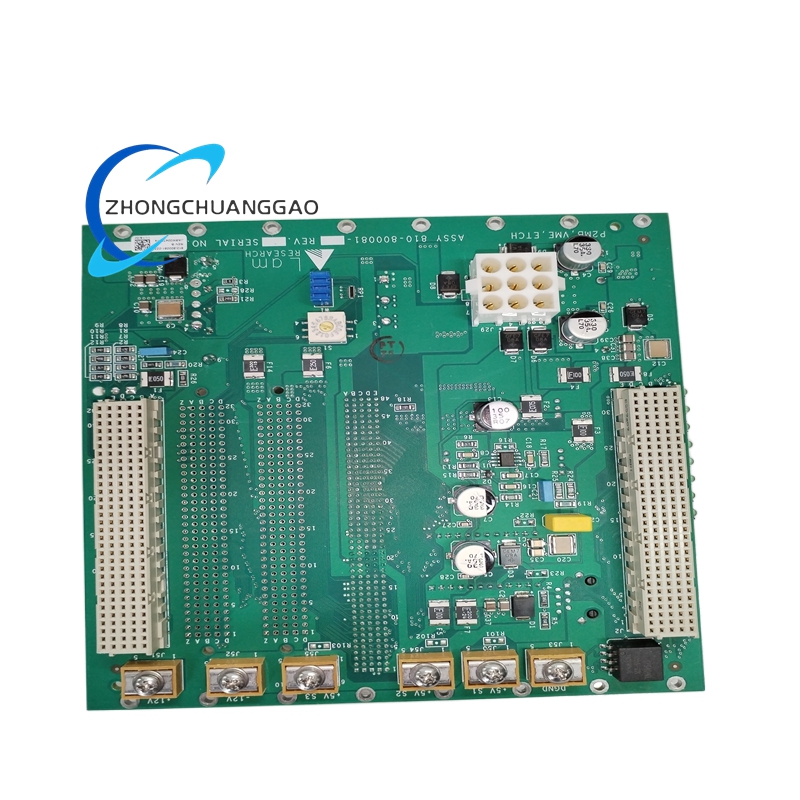

Product Name: LAM Research Semiconductor Process Component 810-800081-022
Model Series: LAM 810 Series Semiconductor Core Parts
Product Brief: Integrated electrical control accessory for LAM medium and large semiconductor production equipment, used for signal collection and feedback of on-site working status.
Description
- Input Signal: Digital signal 24V DC
- Response Time: ≤10ms signal response speed
- Operating Pressure: Adapt to normal pressure and low pressure environment
- Protection Grade: IP54 dustproof and waterproof grade
Functional Features: Real-time collection of equipment operating status signals, signal conversion and feedback, abnormal state alarm signal output, circuit auxiliary protection.
Performance Parameters:
- Working Stability: Continuous 24-hour operation without signal drift
- Anti-electromagnetic Interference: Compliant with SEMI EMC standard
- Service Life: 45,000 hours rated working life
Material Composition: FR-4 high-frequency circuit board, industrial grade electronic components, aluminum alloy shielding shell, polyurethane potting material.
Structural Characteristics: Fully enclosed potting structure, metal electromagnetic shielding layer, terminal external wiring structure, integrated modular independent unit.
Working Principle: Collect analog and digital signals from each mechanism of equipment through internal circuit; convert and transmit signals to main control system; output alarm signal once abnormal working parameters are detected.
Advantages & Highlights: Fast signal response, strong anti-electromagnetic interference ability, fully enclosed dustproof and moistureproof, stable performance, easy wiring and debugging.
Applicable Industries: Mass semiconductor production line, automatic wafer processing equipment, industrial automatic control for microelectronics.
Installation Requirements: Fixed on equipment electrical cabinet internal mounting rail; wiring strictly distinguish input and output terminals; shell keep well grounded; installation position away from high-temperature heat source.
Usage Notes: Do not open the potting shell arbitrarily; keep external wiring tidy and fixed; check terminal connection tightness every 3 months; stop power supply during thunderstorm weather.
