Product Short Description

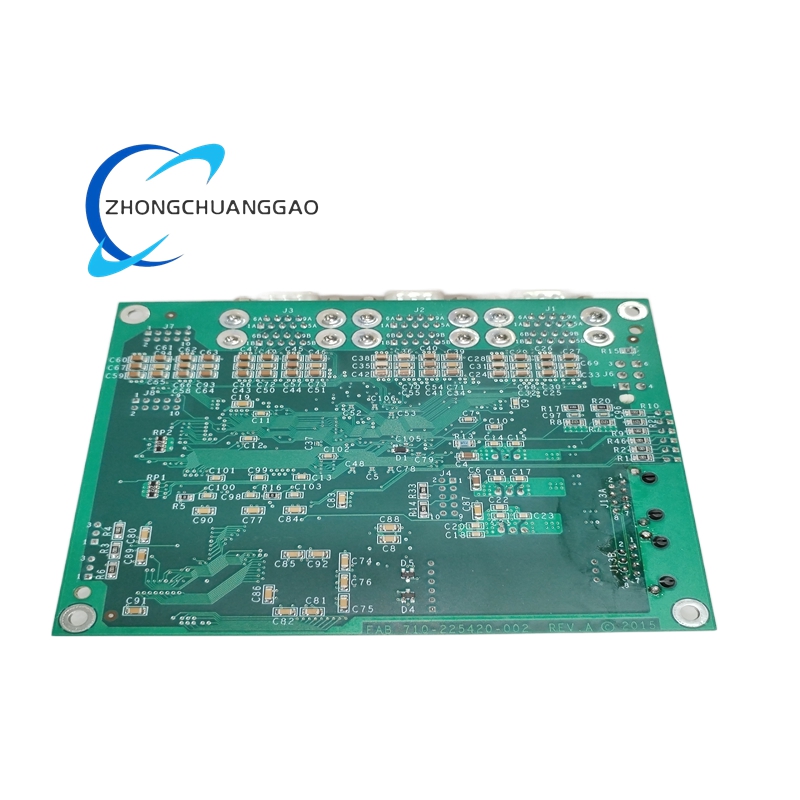

Product Name: LAM Research Semiconductor Process Component 810-225420-002
Model Series: LAM 810 Series Semiconductor Core Parts
Product Brief: Specialized control and connection component for LAM semiconductor thin-film deposition equipment, responsible for circuit bridging and auxiliary control signal output.
Description
- Rated Current: 5A maximum continuous current
- Insulation Resistance: ≥1000 MΩ
- Pressure Resistance: 1000V AC 1min no breakdown
- Operating Temperature: 0°C ~ 70°C
Functional Features: Circuit connection, signal shunting, over-current protection and circuit isolation; stabilizes electrical signals inside semiconductor process equipment.
Performance Parameters:
- Cycle Operation Times: 1,000,000+ times mechanical switching life
- Signal Stability: Signal attenuation ≤0.5% under rated working state
- Shock Resistance: Meet SEMI E10 industrial standard
Material Composition: Brass gold-plated conductive part, PBT high-temperature resistant insulating shell, stainless steel elastic contact piece, silicone shock-absorbing gasket.
Structural Characteristics: Compact plug-in modular structure, foolproof anti-reverse insertion design, multi-layer insulation isolation structure, integrated wiring terminal area.
Working Principle: Conducts control signals and power current through internal conductive components; isolates interference signals via insulating structure; triggers over-current protection when circuit current exceeds threshold.
Advantages & Highlights: Excellent electrical insulation performance, low signal loss, anti-interference, plug-and-play design, high temperature resistance, stable long-term operation.
Applicable Industries: Semiconductor wafer manufacturing, chip etching & deposition, semiconductor equipment maintenance & supporting.
Installation Requirements: Insert into standard slot of LAM 810 series equipment; confirm locking buckle is fully engaged after installation; wiring follows equipment standard circuit diagram; no external wiring modification allowed.
Usage Notes: Cut off total power supply before installation and disassembly; keep internal terminal area dry and dust-free; prohibit bending and pulling connecting lines; inspect contact wear every 6 months.
