Product Short Description

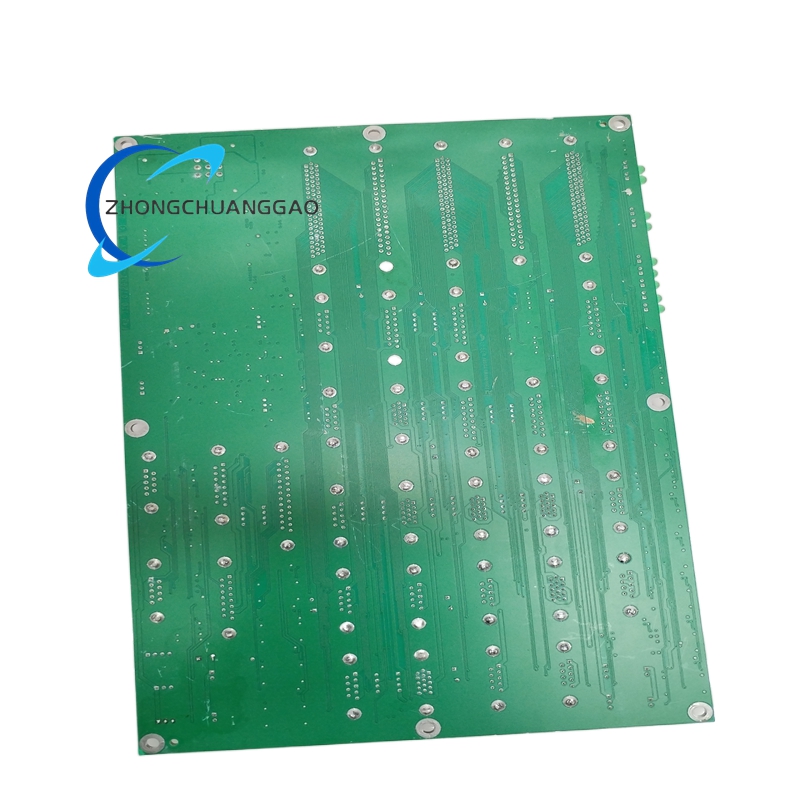

- Product Name: Pulse Output Module (Printed Circuit Board)
- Product Introduction: High-performance pulse generation and motion control PCB for Lam Research industrial automation and semiconductor equipment, optimized for servo and stepper motor control.
- Technical Specifications:
- Pulse Outputs: 8 channels, differential (RS-422)
Description
-
- Frequency Range: 1 Hz to 58 kHz
- Voltage: 24 VDC ±10%
- Power Consumption: 5.3 W
- Operating Temperature: -40 °C to +85 °C
- Functional Features:
- Differential Pulse Output: Reduces noise for long-distance transmission.
- Direction Control: Independent direction signals for each axis.
- Overcurrent Protection: Hardware protection for output circuits.
- Configuration: DIP switches and software settings for mode selection.
- Performance Parameters:
- Pulse Accuracy: ±0.01%
- Output Drive Capacity: 30 mA per channel
- Isolation Voltage: 1500 Vrms
- Material Composition:
- PCB: FR-4, 2.0 mm, high-temperature resistant
- Output Drivers: Differential line drivers (AM26LS31)
- Protection: TVS diodes, PTC fuses
- Structural Characteristics:
- Form Factor: 6U VME board (330 mm × 220 mm)
- Front Panel: D-Sub connectors, LED indicators
- Heat Dissipation: Passive cooling via PCB copper traces
- Working Principle: Receives motion commands from the main controller, generates high-speed differential pulse/direction signals for servo/stepper drives, and monitors output status for fault detection.
- Advantages:
- Noise Immunity: Differential signaling ensures reliable operation in noisy industrial environments.
- High Speed: Supports high-frequency pulses for fast motion.
- Compact Design: Integrates 8 channels on a single VME board.
- Applicable Industries: Semiconductor manufacturing, industrial automation, robotics, CNC machinery.
- Model Series: 810 Series (Lam Research Motion Control PCBA Series)
- Installation Requirements:
- Mount in a 6U VME chassis with adequate airflow.
- Connect differential pulse cables to motor drives.
- Usage Notes:
- Use shielded twisted-pair cables for pulse signals.
- Do not operate beyond the 58 kHz maximum frequency.
