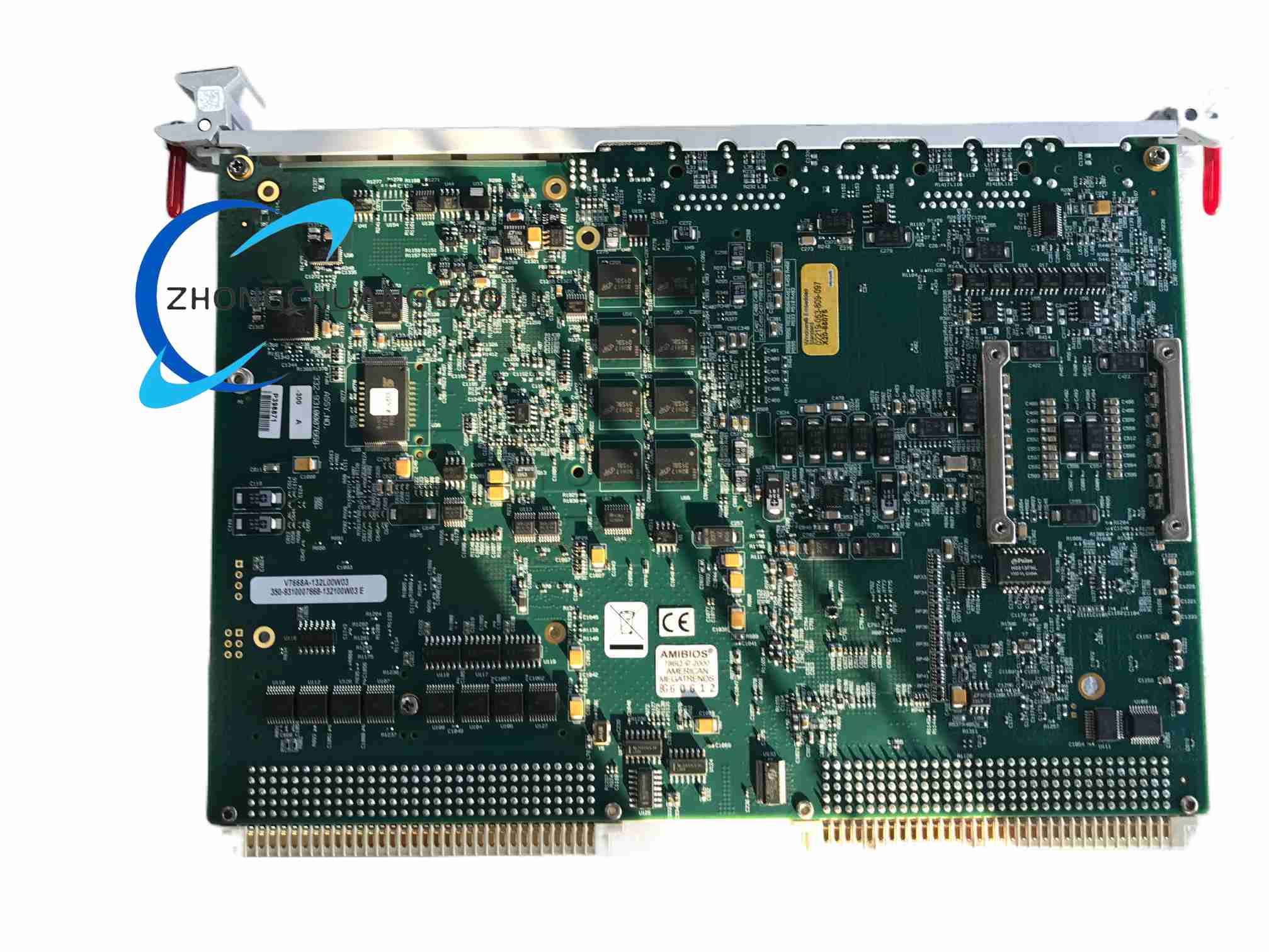

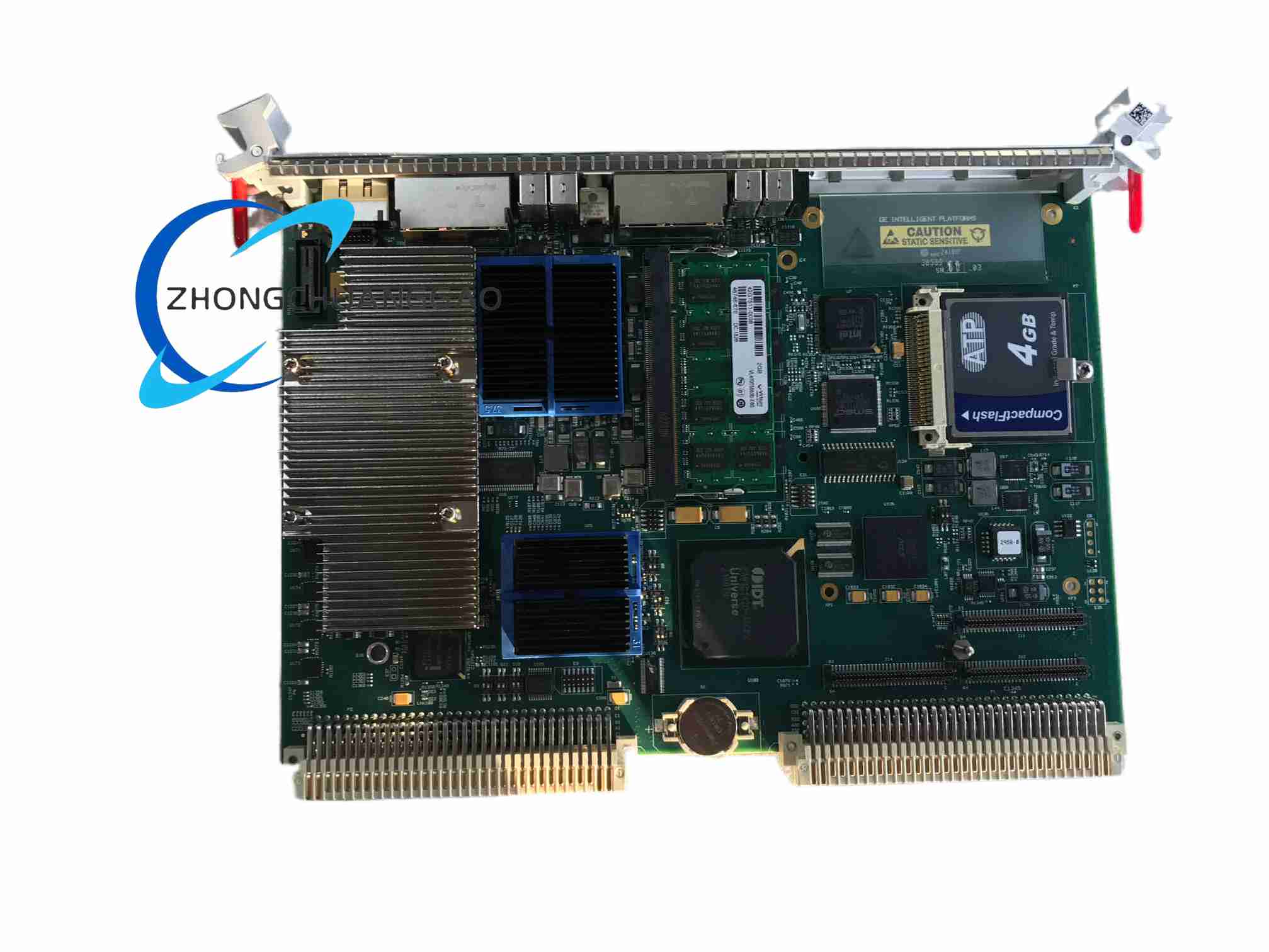

LAM 605-109114-003

Description

• Core Function:​ Orchestrates RF generators, gas delivery, vacuum subsystems, and robotics with microsecond-level synchronization for consistent critical-dimension (CD) control
• Communication Interfaces:​ RS-485 / CAN / proprietary high-speed bus (e.g., LamLink)
• Power Supply:​ +5 V, +12 V, ±15 V (supplied by internal equipment PSU)
• Operating Temperature:​ -10 °C to +70 °C (industrial grade)
• Protection Features:​ Conformal coating (three-proof), ESD/EMI-hardened circuitry
• Mounting:​ DIN rail or screw-fixed inside equipment control cabinet
• Certifications:​ SEMI F47, CE, RoHS
• Application Scenarios:​ Advanced logic & memory wafer fabs, 24/7 etch-tool operation
• Installation Requirements:​ Ensure proper grounding and EMI shielding during cabinet integration; verify bus termination before power-up
• ⚠️ Interchange Warning:​ The sibling part 605-109114-004​ runs on 24 VDC, while -003 uses +5 V / +12 V / ±15 V​ multi-rail supply. The two are NOT interchangeable​ — inserting -003 into a 24 VDC slot may cause reverse-feed damage; inserting -004 into a ±15 V slot will fail to boot. Always specify the full suffix “-003” on BOMs.
